19A40002OEM - Troy-Bilt Triple Rear Bagger (2009) General Assembly Parts Diagram

Triple Rear Bagger

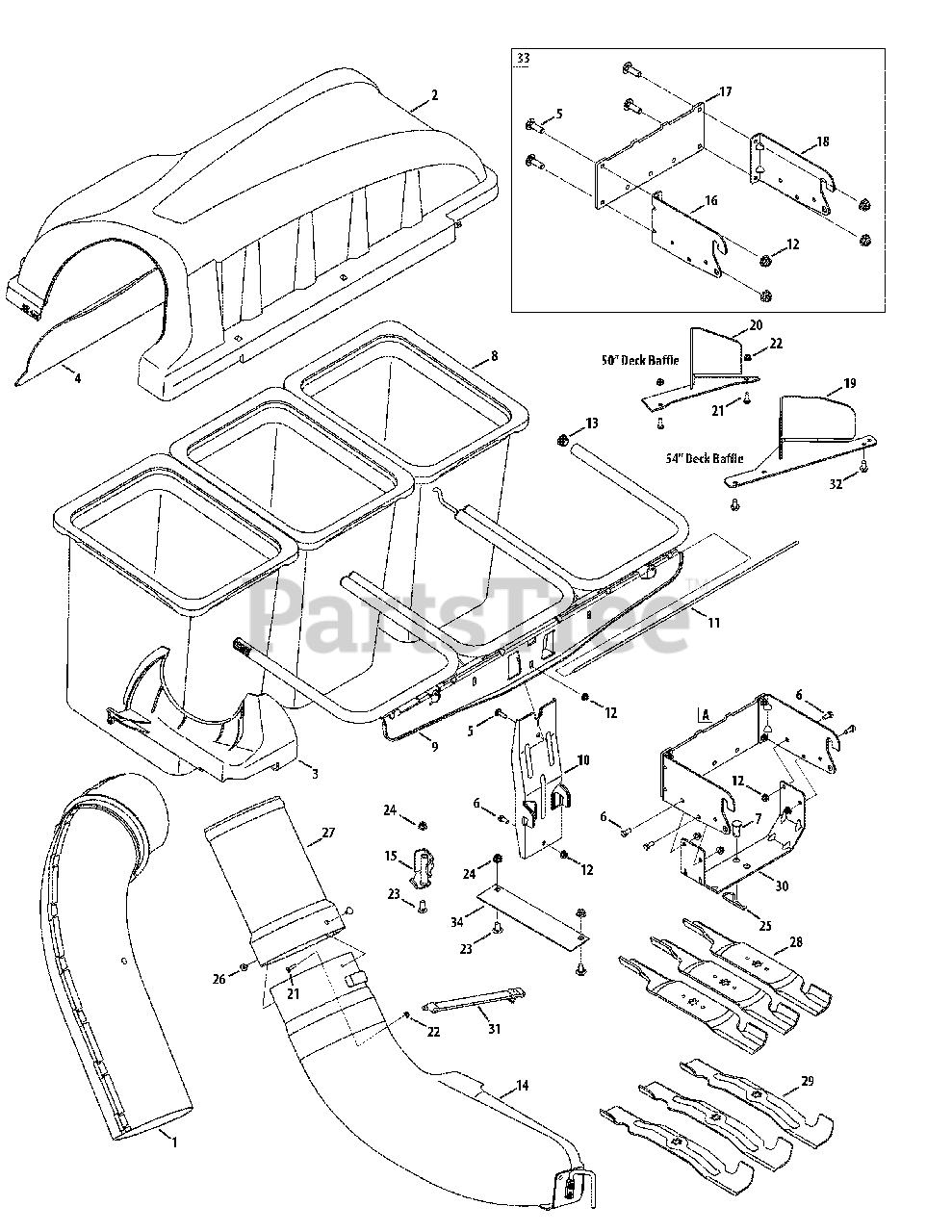

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 931-04291

Upper Chute Assembly
(Superseded to 931-04291A)

$115.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 931-04298

Triple Bagger Cover Assembly

$36.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 731-06497

Upper Chute Support

$33.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 731-06504

Bagger Cover Screen

$16.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 710-0276

Carriage Screw, 5/16-18 x 1.00"

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-3008

Hex Head Screw, 5/16-18 x .75"

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 711-0309A

Clevis Pin, .62" Dia.

$11.99

$

In Stock, Qty 10

0

8

Troy-Bilt 964-04096

Grass-bag Assembly
(Superseded to 964-05104)

$90.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 683-04498

Triple Bag Support Assembly
(Superseded to 683-04498B-0637)

Variations

Troy-Bilt 683-04498-0637

SUPPORT ASM-TRIPLE - POWDER BLACK (0637)

$204.99

$

Usually ships in 3-6 days

0

$204.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 683-04519

Vertical Support Bracket
(Superseded to 683-04519B-0637)

Variations

Troy-Bilt 683-04519-0637

Vertical Support Bracket - POWDER BLACK (0637)

$133.99

$

Usually ships in 3-6 days

0

$133.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 711-05079

Cover Hinge Pin

$21.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 735-0246A

End Plug

$5.49

$

Usually ships in 3-6 days

0

14

Troy-Bilt 631-04300

Discharge Chute Elbow, 50/54" Deck
(Superseded to 631-04300C)

$263.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 683-0617A-0637

Chute Stop-Bracket

$60.99

$

In Stock, only 2 left!

0

16

N/A

Hitch Bracket, RH

Note: Furnish Reference No. 33

$

$

Not available

17

N/A

Universal Rear Attachment Bracket

Note: Furnish Reference No. 33

$

$

Not available

18

N/A

Hitch Bracket, LH

Note: Furnish Reference No. 33

$

$

Not available

19

Troy-Bilt 703-05783-0637

Deck Baffle, 50"

$81.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 703-06018-0637

Deck Baffle, 54"
(Superseded to 703-06018A-0637)

$85.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 710-3015

Tap Screw, 1/4 - 20 x .750 (50" Deck)

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 710-04484

Tap Screw, 5/16-18 x .750 (54" Deck)

$3.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 712-04064

Flange Lock Nut, 1/4 - 20 (50" Deck)

$3.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 710-3168

Carriage Screw, 3/8 - 16 x 1.00"

$3.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 712-04065

Flange Lock Nut, 3/8 - 16

$3.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 714-0117

Internal Cotter Pin, .148 x 3.00

$3.99

$

In Stock, Qty 11

0

26

Troy-Bilt 726-3046

Ratchet Clip, .250

$3.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 731-06611

Bagger Chute Adapter, 7 In.

$43.99

$

In Stock, only 3 left!

0

28

Troy-Bilt 742-04056C-0637

Blade, 17.90 Lg., Star Bagging
(Superseded to 942-04056C)

Note: 50 inch deck

$35.99

$

In Stock, only 4 left!

0

29

Troy-Bilt 942-0679

Blade, 18.50 Lg., Star Bagging
(Superseded to 742-0679-0637)

Note: 54 inch deck

$38.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 783-05887-0637

Universal Bracket Support, RT-99/LT-5

$50.99

$

In Stock, only 1 left!

0

31

Troy-Bilt 723-0476

Chute Strap

$30.99

$

In Stock, only 3 left!

0

32

Troy-Bilt 710-04484

Tap Screw, 5/16-18 x .750 (54" Deck)

$3.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 689-00101

Mounting Bracket Kit (Incl. Ref. 16-18)

$109.99

$

In Stock, only 1 left!

0

34

Troy-Bilt 783-06418-0637

Discharge Chute Plate

$17.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-06158

Discharge Chute Plate Kit

Note: Not Shown (Incl. Extension Plate & Molding Strip)

$

$

Not available
