19A40003 (19A40003100) - Cub Cadet Twin Rear Bagger att Twin Rear Bag Components Parts Diagram

Twin Rear Bagger

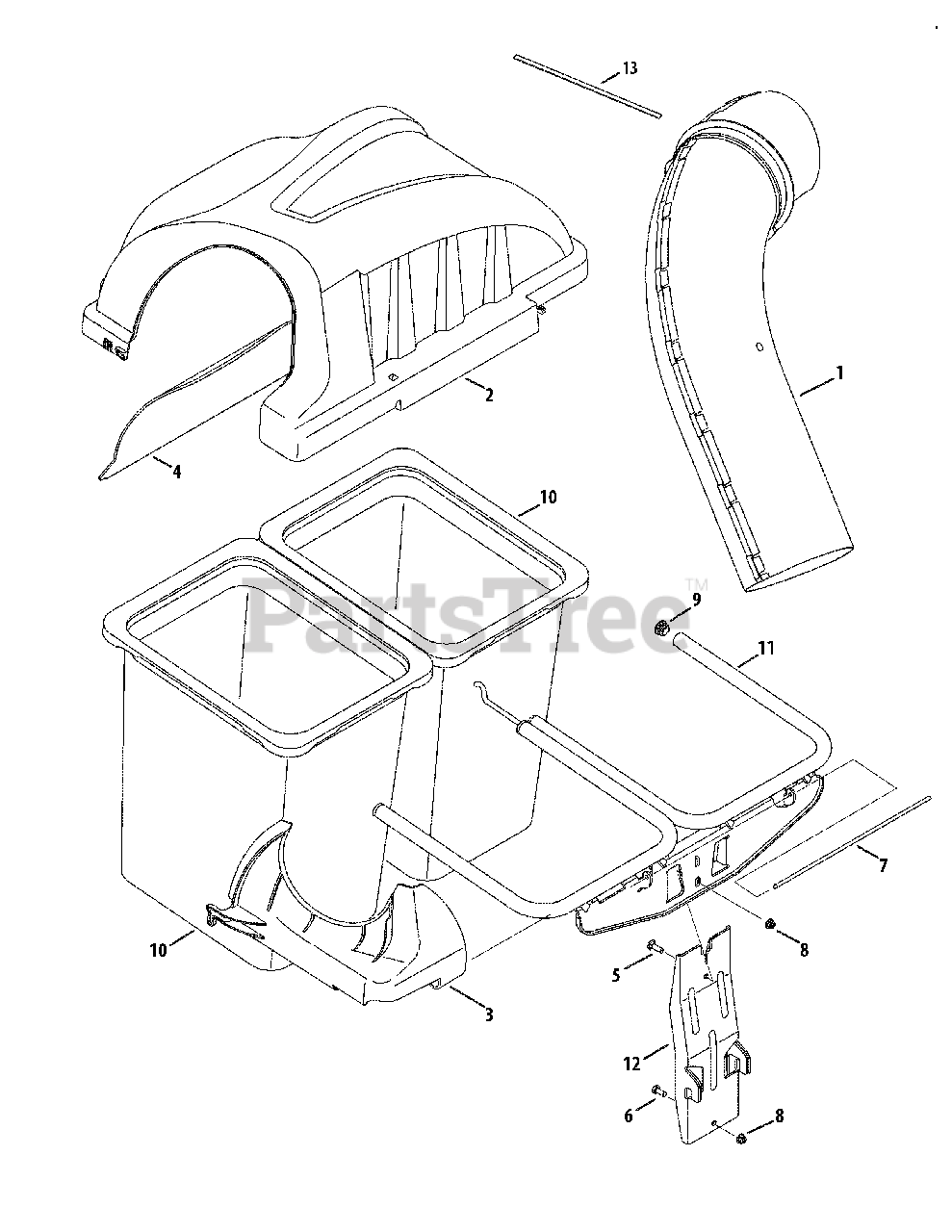

Twin Rear Bag Components Parts Diagram

  • Title

1

Cub Cadet 931-04291

Upper Chute Assembly
(Superseded to 931-04291A)

$129.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 931-04292

Twin Bagger Cover Assembly

$155.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 731-06497

Upper Chute Support

$38.99

$

In Stock, only 3 left!

0

4

Cub Cadet 731-06504

Bagger Cover Screen

$18.99

$

In Stock, only 3 left!

0

5

Cub Cadet 710-0276

Carriage Screw, 5/16-18 x 1.00"

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3008

Hex Head Screw, 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 711-04988

Cover Hinge Pin

$13.99

$

In Stock, only 2 left!

0

8

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 735-0246A

End Plug

$6.49

$

In Stock, Qty 12

0

10

Cub Cadet 964-04090

Grass-bag Assembly
(Superseded to 964-04090A)

$101.99

$

In Stock, Qty 17

0

11

Cub Cadet 683-04461

Twin Bag Support Assembly
(Superseded to 683-04461B-0637)

Variations

Cub Cadet 683-04461-0637

Double Bag Support Assembly - POWDER BLACK (0637)

$220.99

$

Usually ships in 3-6 days

0

$220.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 683-04519

Vertical Support Bracket
(Superseded to 683-04519B-0637)

Variations

Cub Cadet 683-04519-0637

Vertical Support Bracket - POWDER BLACK (0637)

$151.99

$

Usually ships in 3-6 days

0

$151.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 721-04388

Adhesive Strip

$7.49

$

In Stock, only 2 left!

0

Note: Two attachments groups are required to make up a complete bagging system. One Twin Rear Bag attachment 19A40003100 and one Chute & Mounting attachment furnished separately.

$

$
