19A40003 (19A40003100) - Cub Cadet Twin Rear Bagger att2 Chute & Mounting 42 Inch (XT3 & 2000 Series, 40012 Stamped Deck) Parts Diagram

Twin Rear Bagger

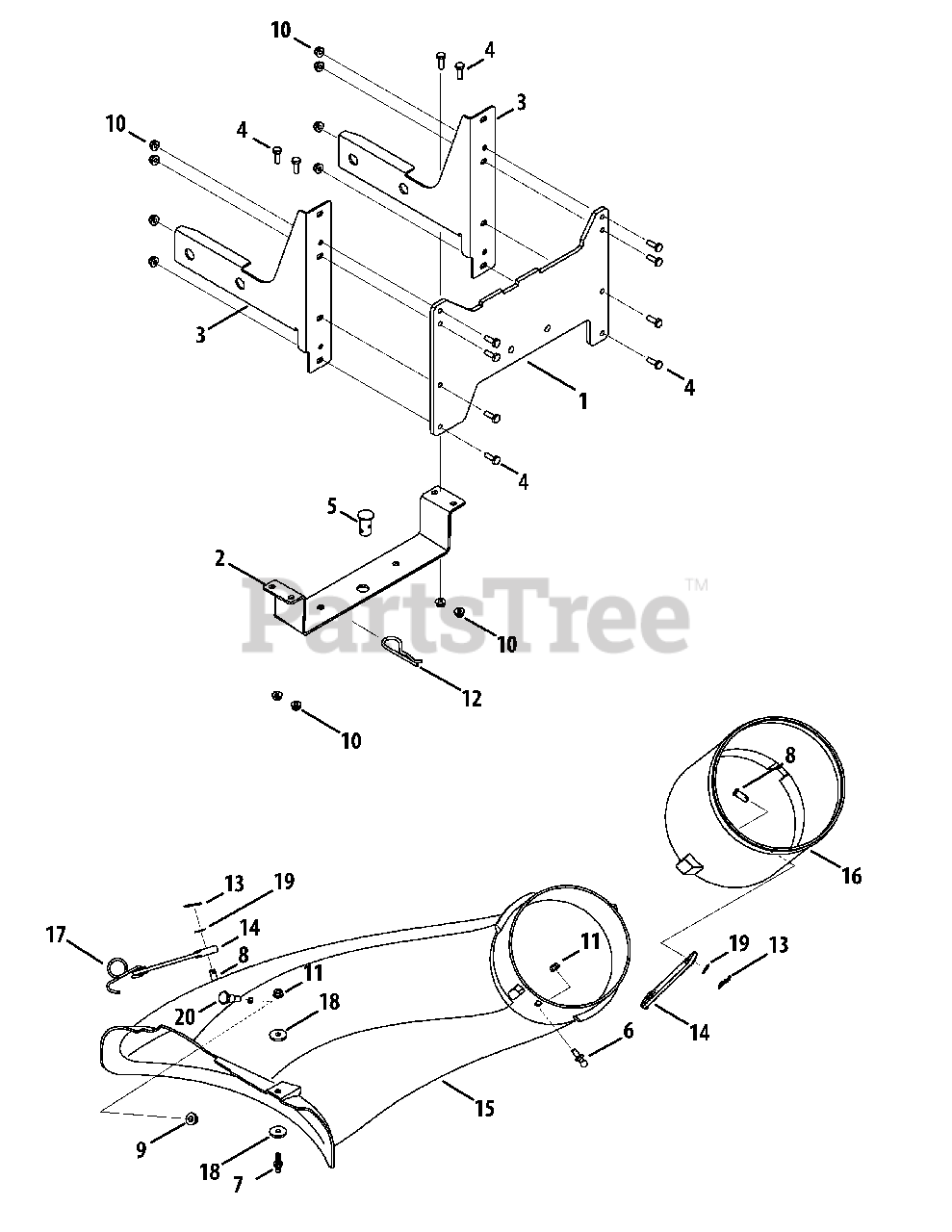

Chute & Mounting 42 Inch (XT3 & 2000 Series, 40012 Stamped Deck) Parts Diagram

  • Title

1

Cub Cadet 703-07320A

Bagger Mounting Plate

Variations

703-07320A-0637

Cub Cadet 703-07320A-0637

PLATE-MTG SUPPORT - POWDER BLACK (0637)

$118.99

$

Usually ships in 3-6 days

0

$95.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-2489A

Cross Brace

Variations

703-2489A-0637

Cub Cadet 703-2489A-0637

BRACE-CROSS - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

$31.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-2490-0637

Catcher Support Bracket

$92.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-3015

Hex Head Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 711-0309A

Clevis Pin, .62 Dia.

$12.99

$

In Stock, only 2 left!

0

6

Cub Cadet 911-04069

Grasscatcher Pin,1/4-20

$8.99

$

In Stock, Qty 11

0

7

Cub Cadet 711-05049

Attachment Pin, 1/4 X 0.66 Lg

$9.49

$

In Stock, only 1 left!

0

8

Cub Cadet 711-05063

Clevis Pin, 5/16 x 3/4

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 912-3027

Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 714-0117

Internal Cotter Pin, .148 X 3.00

$4.49

$

In Stock, Qty 12

0

13

Cub Cadet 714-04040

Bow-Tie Cotter Pin, .72

$1.49

$

In Stock, Qty 20+

0

14

Cub Cadet 723-04008A

Chute Strap, 6.00 Lg.

$10.99

$

In Stock, Qty 9

0

15

Cub Cadet 731-06099B

Bagger Discharge Chute, 42t

$115.99

$

In Stock, only 2 left!

0

16

Cub Cadet 731-06610

Bagger Chute Adaptor, 7x10.5

$49.99

$

In Stock, only 2 left!

0

17

Cub Cadet 732-04510A

Torsion Spring Hook

$5.49

$

In Stock, Qty 6

0

18

Cub Cadet 936-0176

Flat Washer, .265x.938x.120
(Superseded to 736-0176)

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0204

Flat Washer, .344 X .62 X .033

$4.49

$

In Stock, Qty 14

0

20

Cub Cadet 738-0754

Shoulder Screw, .437 Dia. X .54

$4.99

$

In Stock, Qty 11

0

Two attachments groups are required to make up a complete bagging system. One Chute & Mounting attachment 19A40017100 (For XT3 and 2000 Series models with 19A40012 or 19B40012 42 inch Deck) and one Rear Bagger attachment furnished separately

$

$

Not available
