19A40003 (19A40003100) - Cub Cadet Twin Rear Bagger att2 Chute & Mounting 44 Inch (2000 Series) Parts Diagram

Twin Rear Bagger

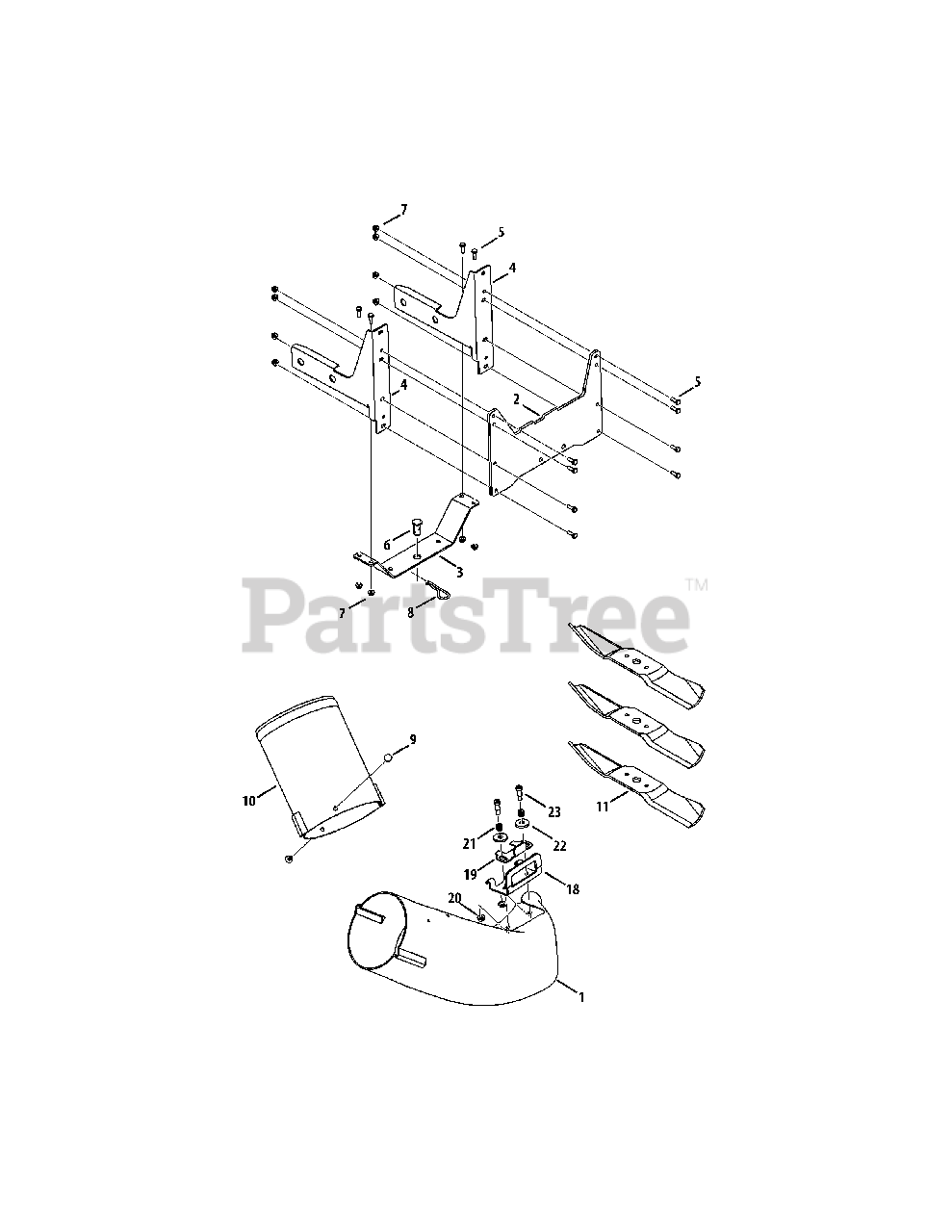

Chute & Mounting 44 Inch (2000 Series) Parts Diagram

  • Title

1

Cub Cadet 731-08367

Chute Discharge Elbow, 44" Deck

$130.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-07320-0637

Bagger Mounting Plate
(Superseded to 703-07320A-0637)

$118.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-2489-0637

Cross Brace

$34.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-2490-0637

Catcher Support Bracket

$92.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-3015

Hex Head Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 711-0309A

Clevis Pin, .62" Dia.

$12.99

$

In Stock, Qty 5

0

7

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 714-0117

Internal Cotter Pin, .148 x 3.00

$4.49

$

In Stock, Qty 15

0

9

Cub Cadet 726-3046

Ratchet Clip

$4.49

$

In Stock, Qty 13

0

10

Cub Cadet 731-06610

Bagger Chute Adapter

$49.99

$

In Stock, only 2 left!

0

11

Cub Cadet 759-3949

Blades, 15.94 x 2.5 x .2
(Superseded to 742P3038)

$30.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 703-3538

Chute Bracket, 44" Deck

Note: Not included with Ref. 1

$77.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 703-3604

Bag Latch

Note: Not included with Ref. 1

$31.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 712-3004A

HEX FLANGE NUT

Note: Not included with Ref. 1

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 732-0334

Compression Spring, .50 OD x .50 Lg.

Note: Not included with Ref. 1

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 736-0247

Flat Washer, .406 x 1.25 x .157

Note: Not included with Ref. 1

$10.99

$

In Stock, Qty 20+

0

23

Cub Cadet 738-3174

Shoulder Screw, 3/8 x .625; 5/16-18

Note: Not included with Ref. 1

$17.99

$

Usually ships in 3-6 days

0

Note: Two attachments groups are required to make up a complete bagging system. One Chute & Mounting attachment 19A40006100 (For 2000 Series models only) and one Rear Bag attachment furnished separately.

$

$

Not available
