19A40005 (19A40005100) - Cub Cadet 42" Deck Boot Kit Triple Rear Bag Components Parts Diagram

42" Deck Boot Kit

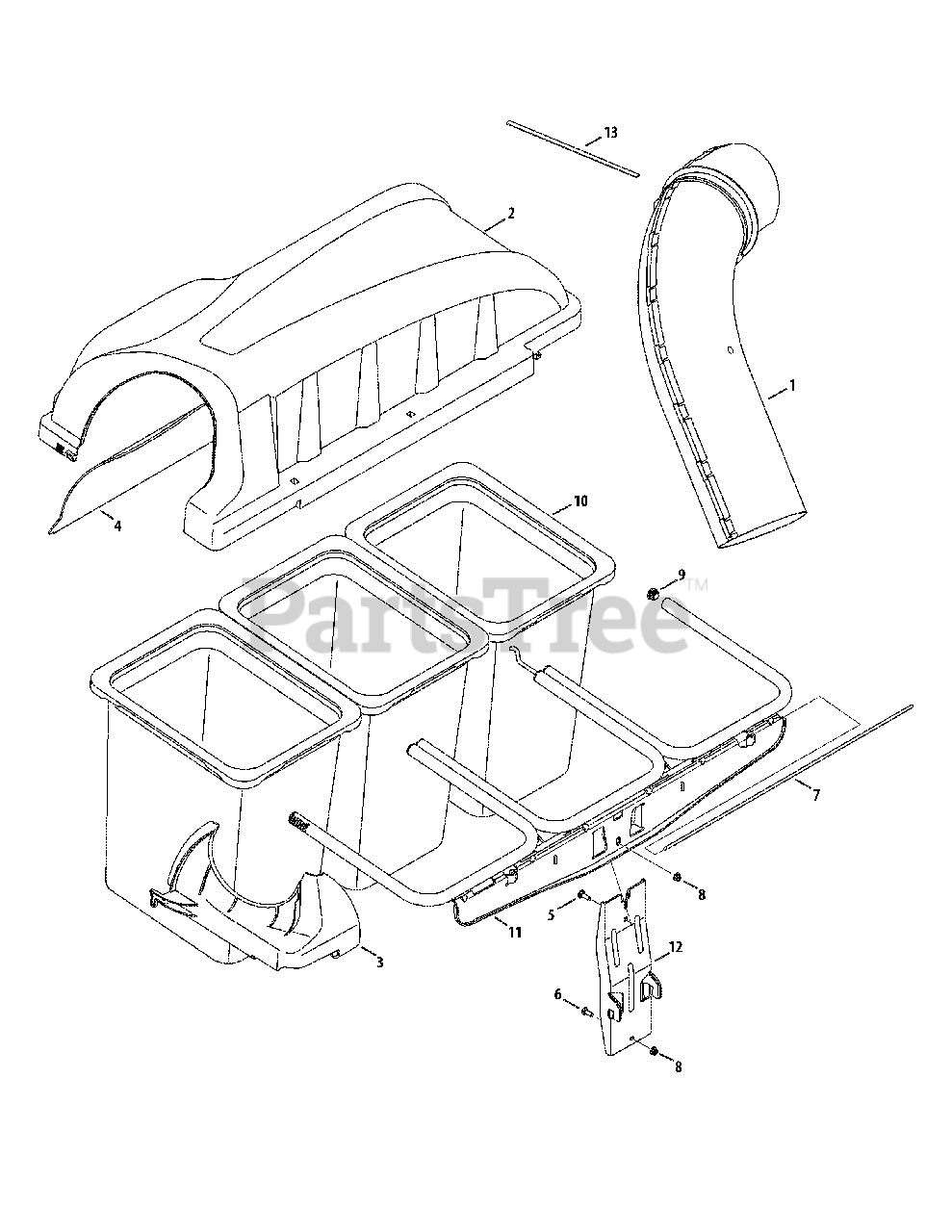

Triple Rear Bag Components Parts Diagram

  • Title

1

Cub Cadet 931-04291

Upper Chute Assembly
(Superseded to 931-04291A)

$129.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 631-04298P

Triple Bagger Cover Assembly

$224.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 731-06497

Upper Chute Support

$38.99

$

In Stock, only 3 left!

0

4

Cub Cadet 731-06504

Bagger Cover Screen

$18.99

$

In Stock, only 3 left!

0

5

Cub Cadet 710-0276

Carriage Screw, 5/16-18 x 1.00"

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3008

Hex Head Screw, 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 711-05079

Cover Hinge Pin

$24.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 735-0246A

End Plug

$6.49

$

In Stock, Qty 12

0

10

Cub Cadet 964-04090

Grass-bag Assembly
(Superseded to 964-04090A)

$101.99

$

In Stock, Qty 17

0

11

Cub Cadet 683-04498

Triple Bag Support Assembly
(Superseded to 683-04498B-0637)

Variations

Cub Cadet 683-04498-0637

USE 683-04498A-0637 SUPPORT A - POWDER BLACK (0637)

$233.99

$

Usually ships in 3-6 days

0

$233.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 683-04519

Vertical Support Bracket
(Superseded to 683-04519B-0637)

Variations

Cub Cadet 683-04519-0637

Vertical Support Bracket - POWDER BLACK (0637)

$151.99

$

Usually ships in 3-6 days

0

$151.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 721-04388

Adhesive Strip

$7.49

$

In Stock, only 2 left!

0

Note: Two attachments groups are required to make up a complete bagging system. One Triple Rear Bag attachment 19A40004100 and one Chute & Mounting attachment furnished separately.

$

$
