19A40008 (19A40008100) - Cub Cadet 44" Deck Boot Kit att Chute & Mounting 44 Inch (3000 Series) Parts Diagram

44" Deck Boot Kit

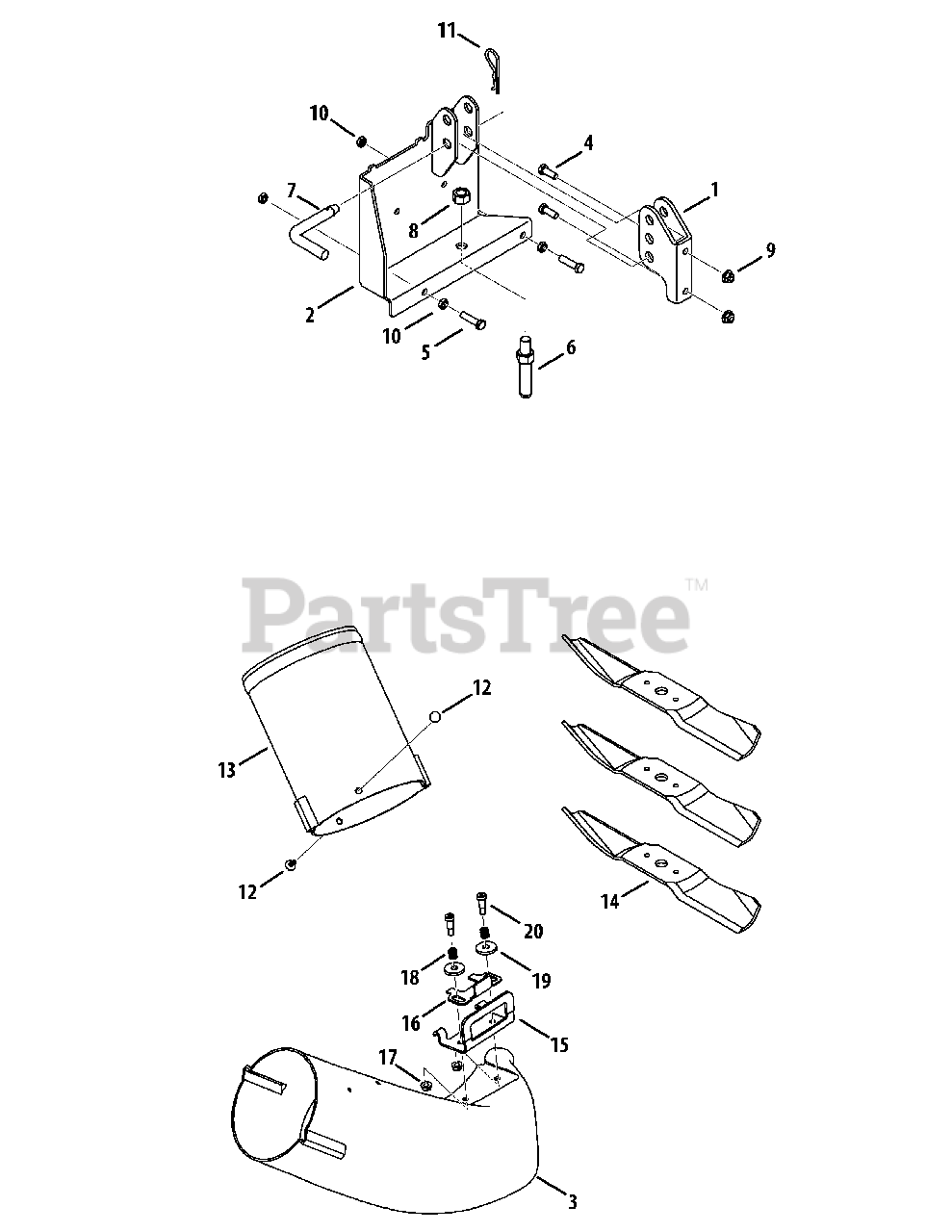

Chute & Mounting 44 Inch (3000 Series) Parts Diagram

  • Title

1

Cub Cadet 13026-0637

Hitch Bracket

$64.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-04714-0637

Bagger Mounting Assembly
(Superseded to 603-04714A-0637)

$

$

Not available

3

Cub Cadet 731-08367

Chute Discharge Elbow, 44" Deck

$130.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0514

Hex Head Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0520

Hex Head Screw, 3/8-16 x 1.50

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet 711-1290

Catcher Adapter Stud

$91.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 711-3285

Clevis Pin, R-Angle

$36.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 712-0337

Hex Nut, 5/8-18

$4.49

$

In Stock, only 1 left!

0

9

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 912-3008

Jam Nut, 3/8-16

$4.99

$

In Stock, Qty 12

0

11

Cub Cadet 714-0117

Internal Cotter Pin, .148 x 3.00

$4.49

$

In Stock, Qty 15

0

12

Cub Cadet 726-3046

Ratchet Clip

$4.49

$

In Stock, Qty 13

0

13

Cub Cadet 731-06610

Bagger Chute Adapter

$49.99

$

In Stock, only 2 left!

0

14

Cub Cadet 759-3949

Blades, 15.94 x 2.5 x .2
(Superseded to 742P3038)

$30.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 703-3538

Chute Bracket, 44" Deck

Note: Not included with Ref.No 3

$77.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 703-3604

Bag Latch

Note: Not included with Ref.No 3

$31.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 712-3004A

Flange Lock Nut, 5/16-18

Note: Not included with Ref.No 3

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 732-0334

Compression Spring, .50 OD x .50 Lg.

Note: Not included with Ref.No 3

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0247

Flat Washer, .406 x 1.25 x .157

Note: Not included with Ref.No 3

$10.99

$

In Stock, Qty 20+

0

20

Cub Cadet 738-3174

Shoulder Screw, 3/8 x .625; 5/16-18

Note: Not included with Ref.No 3

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 753-06158

Discharge Chute Plate Kit

Note: Not Shown (Incl. Extension Plate & Molding Strip)

$

$

Not available

Note: Two attachments groups are required to make up a complete bagging system. One Chute & Mounting attachment 19A40008100 (For 3000 Series models only) and one Rear Bag attachment furnished separately

$

$

Not available

.

$

$

Not available
