19A40012 (19A40012100) - Cub Cadet 42" Stamped Mower Deck (2012) att Mower Deck 42-Inch Stamped Parts Diagram

42" Stamped Mower Deck

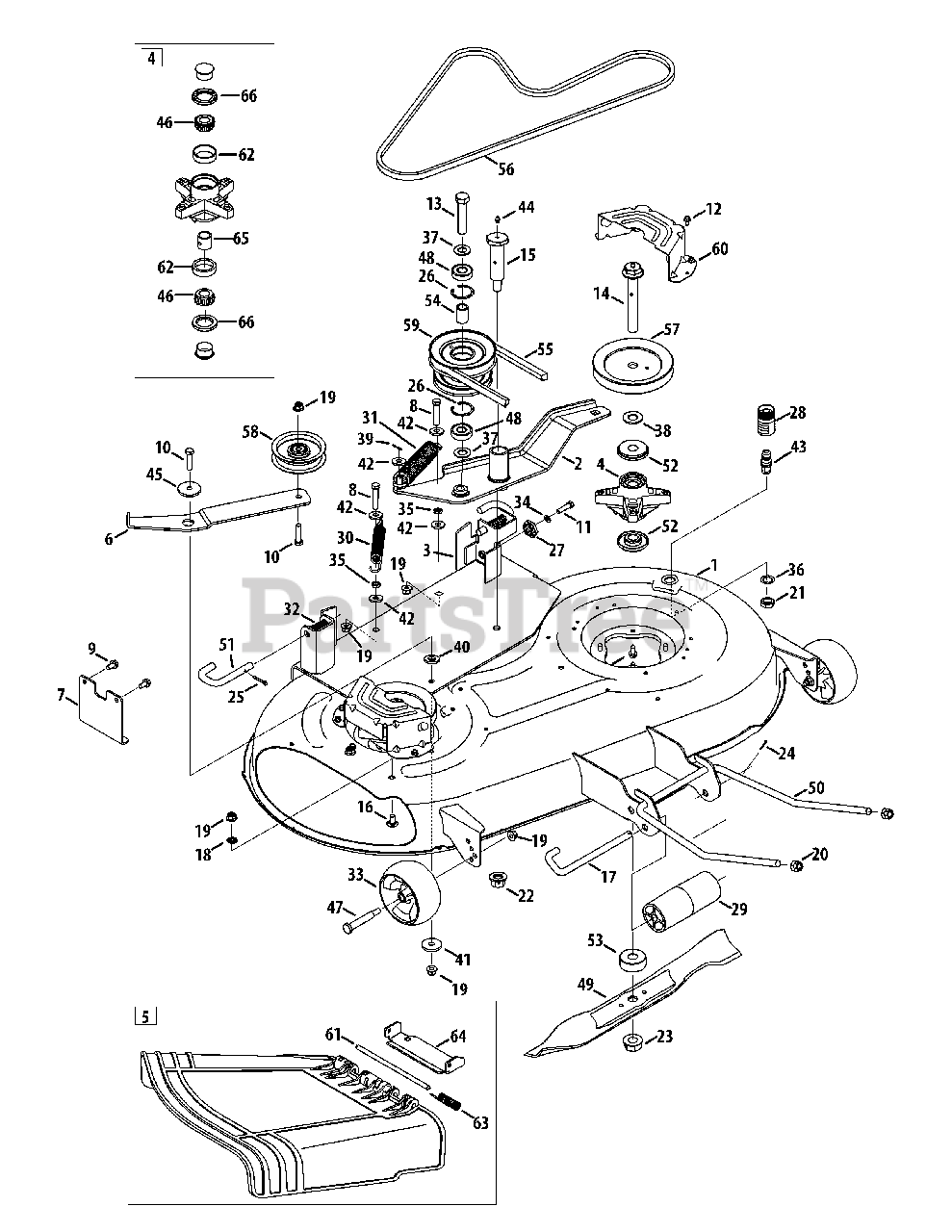

Mower Deck 42-Inch Stamped Parts Diagram

  • Title

1

Cub Cadet 903-04819B-4021

Deck Assembly
(Superseded to 903-04819C-4021)

$858.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-04851B

PTO Idler Assembly
(Superseded to 603-04851B-0637)

Variations

Cub Cadet 603-04851B-0637

PTO Idler Arm Assembly - POWDER BLACK (0637)

$105.99

$

In Stock, only 1 left!

0

$105.99

$

In Stock, only 1 left!

0

3

Cub Cadet 603-04859-4021

Hanger Adjustment Bracket
(Superseded to 603-04859-0637)

$43.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 918-3129C

Spindle Assembly
(Superseded to 918-04426)

$112.99

$

In Stock, Qty 20+

0

5

Cub Cadet 631-04288

Chute Assembly
(Superseded to 631-05191A)

$52.99

$

In Stock, Qty 20+

0

6

Cub Cadet 703-08286-0637

Idler Bracket

$39.99

$

In Stock, only 2 left!

0

7

Cub Cadet 703-08425-0637

Up-Stop Front Bracket

$25.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0347

Hex Screw, 3/8 x 16 x 1.75

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0520

Hex Screw, 3/8-16 x 1.50

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0528

Hex Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x .500

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0923

Hex Screw, 5/8-18 x 3.00

$9.49

$

In Stock, Qty 13

0

14

Cub Cadet 603-04944

Spindle Bolt, 3/4-16 x 5.37

$33.99

$

In Stock, only 1 left!

0

15

Cub Cadet 738-04544

Shoulder Screw, 1.0 x 3.00
(Superseded to 738-04544A)

$51.99

$

In Stock, only 2 left!

0

16

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 911-3314

Roller Pin, 1/2 x 7.31
(Superseded to 711-3314A)

$23.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-0229

Push Nut, 3/8

$3.49

$

In Stock, Qty 20+

0

19

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-04243

Flex Lock Nut, 1/2-13

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 912-0641

Hex Nut, 16-1.5
(Superseded to 712-0641)

$5.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-04327

Flange Lock Nut, 5/8-18

$6.99

$

In Stock, only 1 left!

0

23

Cub Cadet 712-3078

Flange Lock Nut, 3/4-16

$9.49

$

In Stock, Qty 20+

0

24

Cub Cadet 714-3004

Cotter Pin, 3/32 x 1.25

$4.49

$

In Stock, Qty 11

0

25

Cub Cadet 714-0162

Cotter Pin, 5/32 x 1.25

$4.99

$

In Stock, Qty 20+

0

26

Cub Cadet 916-3020

Retainer Ring

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 917-04074

Deck Adjustment Gear

$12.99

$

In Stock, Qty 20+

0

28

Cub Cadet 921-04041

Water Nozzle Adapter

$21.99

$

In Stock, Qty 20+

0

29

Cub Cadet 731-05679

Front Roller
(Superseded to 731-05679B)

$16.99

$

In Stock, Qty 20+

0

30

Cub Cadet 732-04247

Extension Spring, .850 x 6.415

$10.99

$

In Stock, Qty 20+

0

31

Cub Cadet 732-04896

Extension Spring, 1.25 x 6.9

$26.99

$

In Stock, Qty 6

0

32

Cub Cadet 932-3127

Compression Spring, .66 x 1.8

$4.49

$

In Stock, Qty 19

0

33

Cub Cadet 734-04155

Deck Wheel, 5.0

$19.99

$

In Stock, Qty 20+

0

34

Cub Cadet 936-0119

Lock Washer, 5/16

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 912-3008

Jam Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 736-0225

Lock Washer, 5/8

$3.99

$

In Stock, Qty 11

0

37

Cub Cadet 736-0237

Flat Washer, .65 x 1.25 x .075

$3.99

$

In Stock, Qty 20+

0

38

Cub Cadet 736-0315

Flat Washer, .760 x 1.50 x .120

$6.49

$

In Stock, Qty 7

0

39

Cub Cadet 914-0507

Cotter Pin, 3/32 x .75

$4.49

$

In Stock, Qty 19

0

40

Cub Cadet 936-0344

Flat Washer, .385 x 1.0 x .030
(Superseded to 736-0344)

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 736-3082A

Flat Washer, .45 x 1.5 x .172

$9.49

$

In Stock, Qty 17

0

42

Cub Cadet 736-0258

Flat Washer, .385 x 1.00 x .135

$4.49

$

In Stock, only 2 left!

0

43

Cub Cadet 737-04003D

Deck Water Nozzle

$21.99

$

In Stock, Qty 20+

0

44

Cub Cadet 937-3000

Drive Lube Fitting, 3/16

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 738-04162A

Shoulder Spacer, .8840 x .190
(Superseded to 738-04162C)

$12.99

$

In Stock, Qty 20+

0

46

Cub Cadet 941-04089

Cone Bearing, .750
(Superseded to 941-04298)

$15.99

$

In Stock, Qty 20+

0

47

Cub Cadet 938-3056

Shoulder Screw, 1/2 x 2.50

$8.99

$

In Stock, Qty 20+

0

48

Cub Cadet 941-0524A

Ball Bearing, .625 x 40 x 12

$21.99

$

In Stock, Qty 20+

0

49

Cub Cadet 942-04374

2-in-1 Blade, 21.23
(Superseded to 742-04374A-0637)

$35.99

$

In Stock, only 4 left!

0

50

Cub Cadet 747-05352

Front Lift Rod

$83.99

$

In Stock, only 1 left!

0

51

Cub Cadet 747-3188

Mower Support Pin

$32.99

$

In Stock, Qty 5

0

52

Cub Cadet 748-3065A

Deck Spindle Spacer

$12.99

$

In Stock, Qty 20+

0

53

Cub Cadet 750-05184

Spacer, .760 x 2.000 x .790

$34.99

$

In Stock, Qty 7

0

54

Cub Cadet 950-3132

Spacer, .88 x .635 x 1.25

$8.99

$

In Stock, Qty 20+

0

55

Cub Cadet 954-04055

PTO Belt

$78.99

$

In Stock, Qty 20+

0

56

Cub Cadet 954-0645A

Deck Belt

$42.99

$

In Stock, Qty 12

0

57

Cub Cadet 756-04458A

Pulley

$35.99

$

In Stock, only 4 left!

0

58

Cub Cadet 756-0627D

Idler Pulley

$28.99

$

In Stock, Qty 20+

0

59

Cub Cadet 756-3107A

Double Pulley

$104.99

$

In Stock, Qty 5

0

60

Cub Cadet 783-06424A

Belt Cover

Variations

Cub Cadet 783-06424A-0637

Deck Belt Cover, 42" Black - POWDER BLACK (0637)

$9.99

$

In Stock, Qty 20+

0

Cub Cadet 783-06424A-0638

Deck Belt Cover, 42" Troy-Bilt Red - MTD/TROY-BILT RED (0638)

$9.99

$

In Stock, Qty 20+

0

Cub Cadet 783-06424A-0691

Deck Belt Cover, 42" Black - BLACK JACK (0691)

$9.99

$

In Stock, Qty 20+

0

Cub Cadet 783-06424A-4033

Deck Belt Cover, 42" Flint - FLINT MICA (4033)

$9.99

$

In Stock, only 2 left!

0

Cub Cadet 783-06424A-0606

Deck Belt Cover, 42" Orange - MAJESTIC ORANGE (0606)

$9.99

$

In Stock, Qty 9

0

Cub Cadet 783-06424A-4008

Deck Belt Cover, Red - WINE RED (4008)

$9.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-06424A-4021

Deck Belt Cover, 42" Yellow - CUB YELLOW 2 (4021)

$9.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-06424A-0709

Deck Belt Cover, 42" Dark Green - MASTERCRAFT GREEN (0709)

$9.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-06424A-4044

Deck Belt Cover, 42" Red - CRAFTSMAN RED (4044)

$9.99

$

In Stock, Qty 20+

0

Cub Cadet 783-06424A-4028

Deck Belt Cover, 42" Yellow - SEARS YELLOW (4028)

$9.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-06424A-0665

COVER-BELT DECK 42 - YARDMAN GREEN (0665)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

61

Cub Cadet 711-04847B

Hinge Pin

$8.49

$

In Stock, Qty 20+

0

62

Cub Cadet 921-3018A

Oil Seal

$7.99

$

In Stock, Qty 20+

0

63

Cub Cadet 732-04372

Torsion Spring, .44 x 2.0

$9.49

$

In Stock, Qty 20+

0

64

Cub Cadet 783-06074A

Chute Bracket

$30.99

$

In Stock, Qty 5

0

65

Cub Cadet 750-04409

Bearing Spacer, .78 x 1.0 x 1.0425

$19.99

$

In Stock, only 4 left!

0
