19A40013 (19A40013100) - Cub Cadet 50" Stamped Mower Deck (2012) att Mower Deck 50-Inch Stamped Parts Diagram

50" Stamped Mower Deck

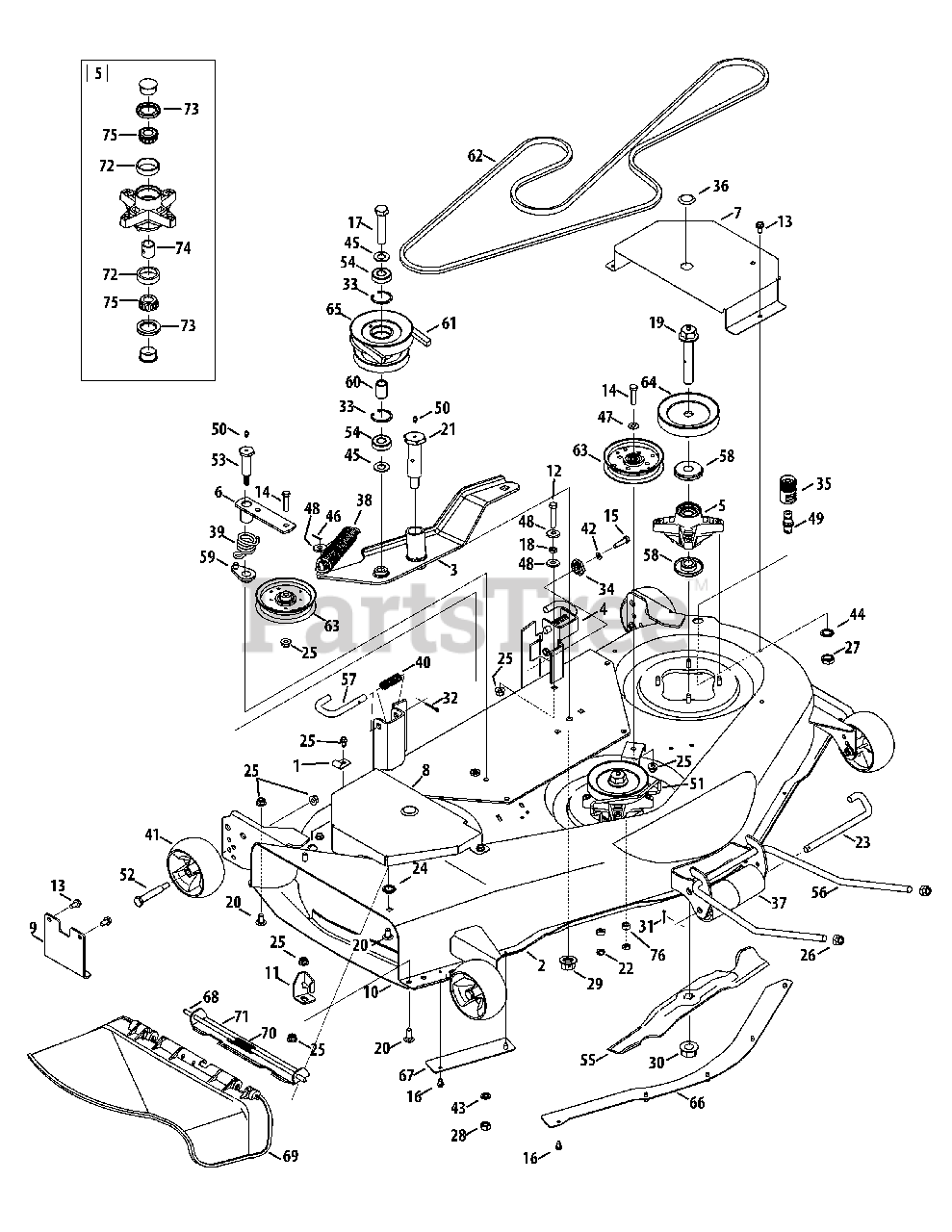

Mower Deck 50-Inch Stamped Parts Diagram

  • Title

1

Cub Cadet 96606

Hook Retainer Bracket

$7.99

$

In Stock, only 2 left!

0

2

Cub Cadet 903-04813A-4021

Deck Assembly
(Superseded to 903-04813B-4021)

$1191.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-04851B

PTO Idler Assembly
(Superseded to 603-04851B-0637)

Variations

Cub Cadet 603-04851B-0637

PTO Idler Arm Assembly - POWDER BLACK (0637)

$120.99

$

In Stock, only 1 left!

0

$120.99

$

In Stock, only 1 left!

0

4

Cub Cadet 603-04859-4021

Hanger Adjustment Bracket
(Superseded to 603-04859-0637)

$49.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 918-3129C

Spindle Assembly
(Superseded to 918-04426)

$119.99

$

In Stock, Qty 20+

0

6

Cub Cadet 603-04920A

Idler Arm Assembly

Variations

Cub Cadet 603-04920A-0637

Idler Arm Assembly - POWDER BLACK (0637)

$80.99

$

In Stock, only 4 left!

0

$80.99

$

In Stock, only 4 left!

0

7

Cub Cadet 703-05546-4021

LH Spindle Shield

$154.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-05556-4021

RH Spindle Shield

$151.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-08425-0637

Up-Stop Bracket

$29.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-08465A-4021

Guard

$65.99

$

In Stock, Qty 5

0

11

Cub Cadet 703-3279-4021

Chute Deflector Stop
(Superseded to 703-3279)

$42.99

$

In Stock, only 2 left!

0

12

Cub Cadet 710-0347

Hex Screw, 3/8 x 16 x 1.75

$5.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0520

Hex Screw, 3/8-16 x 1.50

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0528

Hex Screw, 5/16-18 x 1.25

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0923

Hex Screw, 5/8-18 x 3.00

$10.99

$

In Stock, Qty 20+

0

18

Cub Cadet 912-3008

Jam Nut, 3/8 x 16

$4.99

$

In Stock, Qty 12

0

19

Cub Cadet 603-04941

Spindle Bolt, 3/4-16 x 4.25

$30.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 738-04544

Shoulder Screw, 1.0 x 3.00
(Superseded to 738-04544A)

$58.99

$

In Stock, only 2 left!

0

22

Cub Cadet 912-0291

Hex Lock Nut, 1/4-20
(Superseded to 712-0291)

$

$

Not available

23

Cub Cadet 911-3314

Roller Pin, 1/2 x 7.31
(Superseded to 711-3314A)

$27.99

$

In Stock, Qty 20+

0

24

Cub Cadet 712-0229

Push Nut, 3/8

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 712-04243

Flex Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 912-0641

Hex Nut, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 9

0

28

Cub Cadet 912-3019

Hex Nut, 7/16-14
(Superseded to 712-3019)

$7.49

$

In Stock, only 3 left!

0

29

Cub Cadet 712-04327

Flange Lock Nut, 5/8-18

$7.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 712-3078

Flange Lock Nut, 3/4-16

$10.99

$

In Stock, Qty 20+

0

31

Cub Cadet 714-3004

Cotter Pin, 3/32 x 1.25

$5.49

$

In Stock, Qty 5

0

32

Cub Cadet 714-0162

Cotter Pin, 5/32 x 1.25

$5.49

$

In Stock, Qty 20+

0

33

Cub Cadet 916-3020

Retainer Ring

$5.49

$

In Stock, Qty 20+

0

34

Cub Cadet 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 20+

0

35

Cub Cadet 921-04041

Water Nozzle Adapter

$24.99

$

In Stock, Qty 20+

0

36

Cub Cadet 726-3045

Button Plug
(Superseded to 726-3045A)

$4.99

$

In Stock, Qty 15

0

37

Cub Cadet 731-05679

Front Roller
(Superseded to 731-05679B)

$19.99

$

In Stock, Qty 20+

0

38

Cub Cadet 732-04896

Extension Spring, 1.25 x 6.9

$30.99

$

In Stock, only 2 left!

0

39

Cub Cadet 732-3067

Idler Torsion Spring, 1.10 x 1.3

$25.99

$

In Stock, Qty 20+

0

40

Cub Cadet 932-3127

Compression Spring, .66 x 1.8

$4.99

$

In Stock, Qty 15

0

41

Cub Cadet 734-04155

Deck Wheel, 5.0

$21.99

$

In Stock, Qty 20+

0

42

Cub Cadet 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

43

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.99

$

In Stock, Qty 11

0

44

Cub Cadet 736-0225

Lock Washer, 5/8

$4.49

$

In Stock, only 2 left!

0

45

Cub Cadet 736-0237

Flat Washer, .65 x 1.25 x .075

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 914-0507

Cotter Pin, 3/32 x .750

$4.99

$

In Stock, Qty 11

0

47

Cub Cadet 736-3050

Flat Washer, .406 x .812 x .051

$4.49

$

In Stock, Qty 15

0

48

Cub Cadet 736-0258

Falt Washer, .385 x 1.00 x .135

$4.99

$

In Stock, Qty 20+

0

49

Cub Cadet 737-04003D

Deck Water Nozzle

$24.99

$

In Stock, Qty 10

0

50

Cub Cadet 937-3000

Drive Lube Fitting, 3/16

$4.99

$

In Stock, Qty 20+

0

51

Cub Cadet 747-05589B

Belt Drive Guard

$37.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 938-3056

Shoulder Screw, 1/2 x 2.50

$9.99

$

In Stock, Qty 20+

0

53

Cub Cadet 738-04545

Shoulder Screw, 7/16-14 x .687 x 2.443

$28.99

$

In Stock, only 4 left!

0

54

Cub Cadet 941-0524A

Ball Bearing, .625 x 40 x 12

$24.99

$

In Stock, Qty 20+

0

55

Cub Cadet 759-04047

Blade 2-in1, round hole
(Superseded to 742P04068C)

$33.99

$

In Stock, only 1 left!

0

56

Cub Cadet 747-05352

Front Lift Rod

$94.99

$

In Stock, only 1 left!

0

57

Cub Cadet 747-3188

Mower Support Pin

$36.99

$

In Stock, Qty 6

0

58

Cub Cadet 748-3065A

Spindle Spacer

$14.99

$

In Stock, Qty 20+

0

59

Cub Cadet 748-3100

Spring Retainer
(Superseded to 748-3100A)

$30.99

$

In Stock, Qty 9

0

60

Cub Cadet 950-3132

Spacer, .88 x .635 x 1.25

$10.99

$

In Stock, Qty 20+

0

61

Cub Cadet 954-04055

PTO Belt

$83.99

$

In Stock, Qty 20+

0

62

Cub Cadet 954-04137A

Deck Belt
(Superseded to 954-04137B)

$47.99

$

In Stock, Qty 20+

0

63

Cub Cadet 756-04129B

Idler Pulley
(Superseded to 753-08171)

$37.99

$

In Stock, Qty 20+

0

64

Cub Cadet 756-3096

Spindle Pulley

$43.99

$

In Stock, Qty 7

0

65

Cub Cadet 756-3107A

Double Pulley

$119.99

$

In Stock, Qty 8

0

66

Cub Cadet 783-04414A-4021

Center Skirt

$37.99

$

In Stock, Qty 8

0

67

Cub Cadet 783-04415-4021

RH Skirt

$32.99

$

In Stock, Qty 6

0

68

Cub Cadet 711-04565

Hinge Pin, .3175 x 14.06

$16.99

$

In Stock, only 2 left!

0

69

Cub Cadet 631-04070A

Chute Deflector
(Superseded to 631-04070C)

$130.99

$

In Stock, Qty 8

0

70

Cub Cadet 732-04372

Torsion Spring, .44 x 2.0

$10.99

$

In Stock, only 4 left!

0

71

Cub Cadet 783-05030

Chute Bracket

$30.99

$

In Stock, only 2 left!

0

72

Cub Cadet 941-04091

Bearing Cup, .750
(Superseded to 941-04299)

$7.49

$

In Stock, Qty 20+

0

73

Cub Cadet 921-3018A

Oil Seal

$8.99

$

In Stock, Qty 20+

0

74

Cub Cadet 750-04409

Bearing Spacer, .78 x 1.0 x 1.0425

$21.99

$

In Stock, only 2 left!

0

75

Cub Cadet 941-04089

Cone Bearing, .750
(Superseded to 941-04298)

$17.99

$

In Stock, Qty 20+

0

76

Cub Cadet 750-05297

Spacer, .256 x .500 x .240

$4.99

$

In Stock, Qty 20+

0
