19A40020 (19A40020100) - Cub Cadet 48" Snow Blower Attachment att General Assembly 48-Inch 2012 & After Parts Diagram

48" Snow Blower Attachment

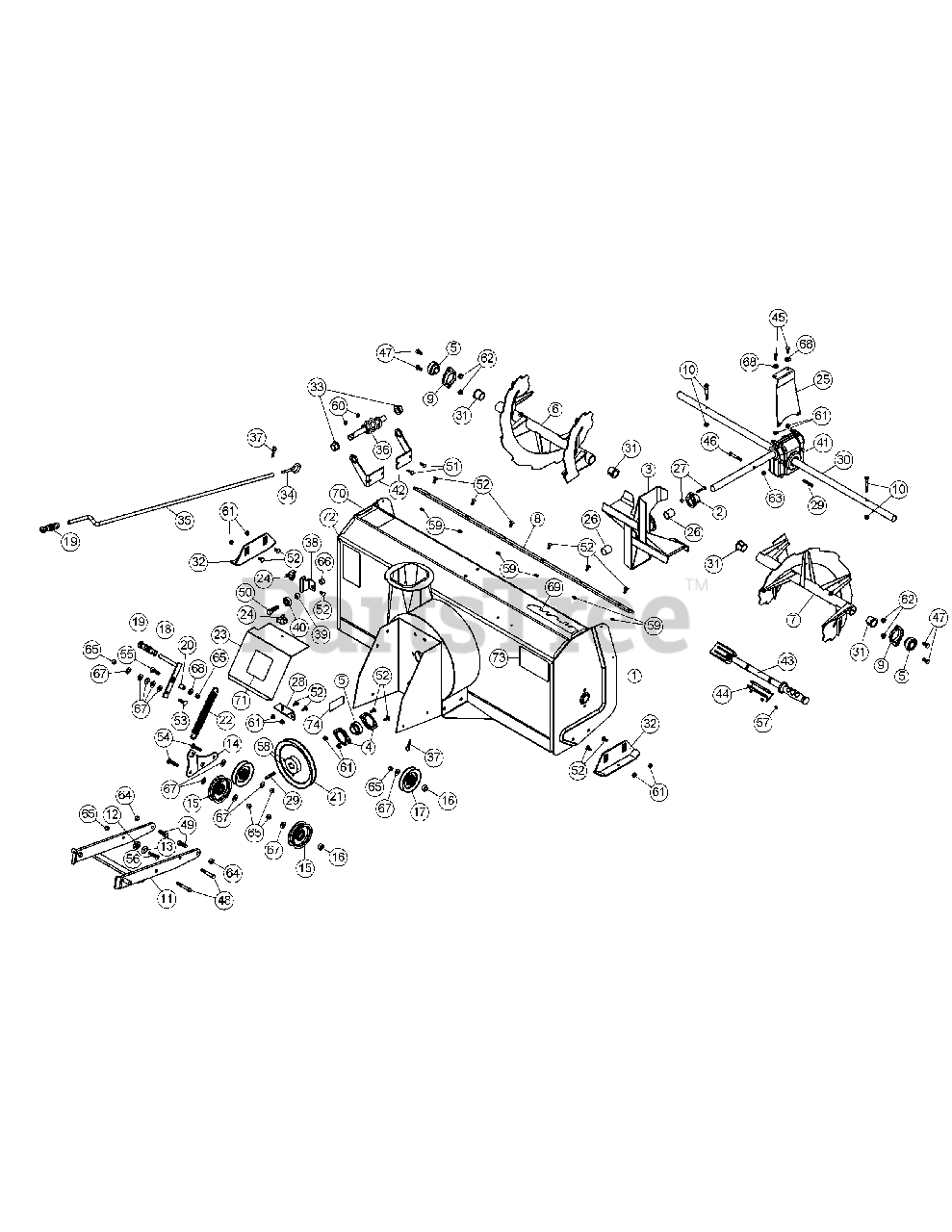

General Assembly 48-Inch 2012 & After Parts Diagram

  • Title

1

Cub Cadet BE-104852-Y

Frame 48"
(Superseded to BE-105969)

$914.99

$

Usually ships in 3-6 days

0

2

Cub Cadet BE-103933

Shear plate

$47.99

$

Usually ships in 3-6 days

0

3

Cub Cadet BE-103932

Fan
(Superseded to BE-105660)

$306.99

$

Usually ships in 3-6 days

0

4

Cub Cadet BE-102213

Flangette

$4.99

$

Usually ships in 3-6 days

0

5

Cub Cadet BE-102755

Bearing with set screw

$33.99

$

Usually ships in 3-6 days

0

6

Cub Cadet BE-104765

Auger 48" left

$250.99

$

Usually ships in 3-6 days

0

7

Cub Cadet BE-104766

Auger 48" right

$204.99

$

Usually ships in 3-6 days

0

8

Cub Cadet BE-103187

Cutting edge 48"

$44.99

$

Usually ships in 3-6 days

0

9

Cub Cadet BE-102680

Flangette

$11.99

$

Usually ships in 3-6 days

0

10

Cub Cadet BE-104000

Shear bolt / N.I.L.N. (auger)

Note: (Pack-10)

$30.99

$

In Stock, only 1 left!

0

11

Cub Cadet BE-104853

Male hitch

$97.99

$

Usually ships in 3-6 days

0

12

Cub Cadet BE-102081

Flange washer

$7.99

$

Usually ships in 3-6 days

0

13

Cub Cadet BE-103042

Special washer

$9.99

$

Usually ships in 3-6 days

0

14

Cub Cadet BE-104854

Tension lever

$43.99

$

Usually ships in 3-6 days

0

15

Cub Cadet BE-102765

Flat pulley

$42.99

$

Usually ships in 3-6 days

0

16

Cub Cadet BE-103939

Sleeve

$6.99

$

Usually ships in 3-6 days

0

17

Cub Cadet BE-102766

V pulley

$39.99

$

Usually ships in 3-6 days

0

18

Cub Cadet BE-103026

Tension arm

$32.99

$

Usually ships in 3-6 days

0

19

Cub Cadet BE-102062

Handgrip

$

$

Not available

20

Cub Cadet BE-103028

Sleeve

$8.99

$

Usually ships in 3-6 days

0

21

Cub Cadet BE-103740

V pulley

$85.99

$

Usually ships in 3-6 days

0

22

Cub Cadet BE-102861

Spring

$19.99

$

Usually ships in 3-6 days

0

23

Cub Cadet BE-104855-Y

Belt guard

$52.99

$

Usually ships in 3-6 days

0

24

Cub Cadet BE-103027

Knob

$

$

Not available

25

Cub Cadet BE-104746

Gear box support

$21.99

$

Usually ships in 3-6 days

0

26

Cub Cadet BE-102784

Oil lite bushing

$7.49

$

Usually ships in 3-6 days

0

27

Cub Cadet BE-103999

Shear bolt / N.I.L.N. (fan)

Note: (Pack-10)

$26.99

$

Usually ships in 3-6 days

0

28

Cub Cadet BE-103990

Belt guard support

$23.99

$

Usually ships in 3-6 days

0

29

Cub Cadet BE-102922

Key 1/4" x 1/4" x 2"

$4.99

$

Usually ships in 3-6 days

0

30

Cub Cadet BE-104721

Shaft 48"

$134.99

$

Usually ships in 3-6 days

0

31

Cub Cadet BE-103946

Rotation bushing

$7.99

$

Usually ships in 3-6 days

0

32

Cub Cadet BE-103188

Skid shoe

$32.99

$

Usually ships in 3-6 days

0

33

BE103945

Rotation bushing

$

$

Not available

34

Cub Cadet BE-102006

Handle hook

$14.99

$

Usually ships in 3-6 days

0

35

Cub Cadet BE-102061

Handle

$39.99

$

Usually ships in 3-6 days

0

36

Cub Cadet BE-102005

Rotation worm

$67.99

$

Usually ships in 3-6 days

0

37

Cub Cadet BE-102013

Hair pin 2.5mm

$1.49

$

Usually ships in 3-6 days

0

38

Cub Cadet BE-104734

Bracket

$9.99

$

Usually ships in 3-6 days

0

39

Cub Cadet BE-102225

Bushing

$6.49

$

Usually ships in 3-6 days

0

40

Cub Cadet BE-104624

Bearing

$6.49

$

Usually ships in 3-6 days

0

41

Cub Cadet BE-104718

Gear box left rotation

$573.99

$

Usually ships in 3-6 days

0

42

Cub Cadet BE-105755

Worm supports

$29.99

$

Usually ships in 3-6 days

0

43

Cub Cadet BE-105700

Chute shovel

$

$

Not available

44

Cub Cadet BE-105701

Chute shovel support

$

$

Not available

45

Cub Cadet O/L

Hex. bolt 5/16" n.c. x 3/4" GR5

Note: (Obtain Locally)

$

$

Currently unavailable

46

Cub Cadet O/L

Hex. bolt 5/16" n.c. x 2 1/4" GR8

Note: (Obtain Locally)

$

$

Currently unavailable

47

Cub Cadet O/L

Hex. bolt 3/8" n.c. x 3/4" GR5

Note: (Obtain Locally)

$

$

Currently unavailable

48

Cub Cadet O/L

Hex. bolt 3/8" n.c. x 2 1/2" GR5

Note: (Obtain Locally)

$

$

Currently unavailable

49

Cub Cadet O/L

Hex. bolt 7/16" n.c. x 1 1/4" GR5

Note: (Obtain Locally)

$

$

Currently unavailable

50

Cub Cadet O/L

Hex. bolt 1/2" n.c. x 1 3/4" GR5

Note: (Obtain Locally)

$

$

Currently unavailable

51

Cub Cadet O/L

Carriage bolt 1/4" n.c. x 1 " GR5

Note: (Obtain Locally)

$

$

Currently unavailable

52

Cub Cadet O/L

Carriage bolt 5/16" n.c. x 3/4 " GR5

Note: (Obtain Locally)

$

$

Currently unavailable

53

Cub Cadet O/L

Carriage bolt 3/8" n.c. x 1 1/4 " GR5

Note: (Obtain Locally)

$

$

Currently unavailable

54

Cub Cadet O/L

Carriage bolt 3/8" n.c. x 1 3/4 " GR5

Note: (Obtain Locally)

$

$

Currently unavailable

55

Cub Cadet O/L

Carriage bolt 3/8" n.c. x 1 1/2 " GR5

Note: (Obtain Locally)

$

$

Currently unavailable

56

Cub Cadet O/L

Hex socket f.h. cap screw 3/8" n.c. x 1-3/4"

Note: (Obtain Locally)

$

$

Currently unavailable

57

Cub Cadet O/L

Socket Head Cap Screw M5 x 0.80 x 10

Note: (Obtain Locally)

$

$

Currently unavailable

58

Cub Cadet O/L

Socket head set screw 5/16"' n.c. x 5/16''

Note: (Obtain Locally)

$

$

Currently unavailable

59

Cub Cadet O/L

Stover lock nut 5/16" n.c.

Note: (Obtain Locally)

$

$

Currently unavailable

60

Cub Cadet O/L

Flange nut 1/4" n.c.

Note: (Obtain Locally)

$

$

Currently unavailable

61

Cub Cadet O/L

Flange nut 5/16" n.c.

Note: (Obtain Locally)

$

$

Currently unavailable

62

Cub Cadet O/L

Flange nut 3/8" n.c.

Note: (Obtain Locally)

$

$

Currently unavailable

63

Cub Cadet O/L

Nylon Insert lock Nut 5/16" n.c. GR5

Note: (Obtain Locally)

$

$

Currently unavailable

64

Cub Cadet O/L

Nylon Insert lock Nut 7/16" n.c.

Note: (Obtain Locally)

$

$

Currently unavailable

65

Cub Cadet O/L

Nylon Insert lock Nut 3/8" n.c.

Note: (Obtain Locally)

$

$

Currently unavailable

66

Cub Cadet O/L

Nylon Insert lock Nut 1/2" n.c.

Note: (Obtain Locally)

$

$

Currently unavailable

67

Cub Cadet O/L

Flat washer 7/16" hole

Note: (Obtain Locally)

$

$

Currently unavailable

68

Cub Cadet O/L

Flat washer 3/8" hole

Note: (Obtain Locally)

$

$

Currently unavailable

69

Cub Cadet BE-106075

Decal Cub Cadet

$10.99

$

Usually ships in 3-6 days

0

70

Cub Cadet BE-105126

Decal danger auger

$6.99

$

Usually ships in 3-6 days

0

71

Cub Cadet BE-105128

Decal danger belts

$6.99

$

Usually ships in 3-6 days

0

72

Cub Cadet BE-105130

Decal read instructions

$9.49

$

Usually ships in 3-6 days

0

73

Cub Cadet BE-105131

Decal warning safety

$9.49

$

Usually ships in 3-6 days

0
