19A40024 (19A40024100) - Cub Cadet 42" 3X Snow Thrower Attachment (2016 - 2022) att Chute Crank Assembly Parts Diagram

42" 3X Snow Thrower Attachment

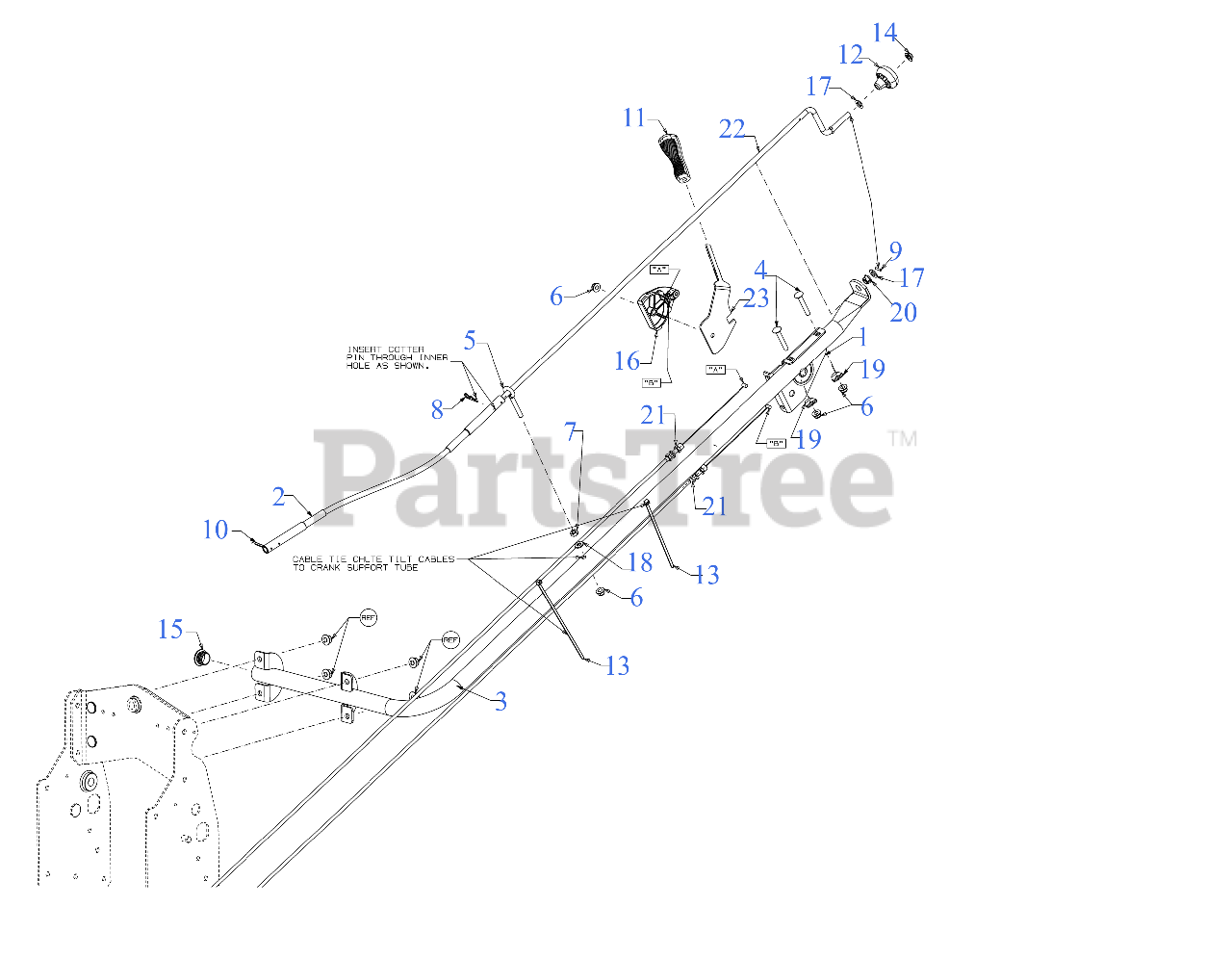

Chute Crank Assembly Parts Diagram

  • Title

1

Cub Cadet 603-0302A-0637

CHUTE TILT BRACKET

$64.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 710-1009

SCREW 5/16-18 x 1.5

Note: (Not Shown)

$

$

Currently unavailable

2

Cub Cadet 611-05064

CHUTE CRANK

$181.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 684-05094-0637

CHUTE CRANK SUPPORT (POWDER BLACK)

$156.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0487

BOLT 5/16-18 x 2.00 GR5

$6.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-05050

EYEBOLT 5/16-18 x 3.25

$7.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 912-3010

HEX NUT 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 914-0101

INTERNAL COTTER PIN-1/2 DIA
(Superseded to 714-0101)

$

$

Not available

9

Cub Cadet 915-0138

ROLL PIN 1/18 DIA

$4.49

$

In Stock, only 1 left!

0

10

Cub Cadet 715-04095

ROLL PIN

$4.99

$

In Stock, only 2 left!

0

11

Cub Cadet 720-04049A

HANDLE GRIP

$14.99

$

In Stock, only 4 left!

0

12

Cub Cadet 720-04102

SHIFT KNOB

$6.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 725-0157

7" CABLE TIE

$3.49

$

In Stock, only 4 left!

0

14

Cub Cadet 926-0100

PUSH NUT
(Superseded to 726-0100)

$

$

Not available

15

Cub Cadet 731-07580

PLUG

$6.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 731-1313C

CABLE GUIDE

$11.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 936-0185

FLAT WASHER
(Superseded to 736-0185)

$3.49

$

In Stock, Qty 15

0

18

Cub Cadet 936-0275

FLAT WASHER
(Superseded to 736-0275)

$

$

Not available

19

Cub Cadet 936-0451

SADDLE WASHER
(Superseded to 736-0451)

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 941-0475

BUSHING .380 ID

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 946-04332A

CHUTE CONTROL CABLE 74.5"

$64.99

$

In Stock, only 2 left!

0

22

Cub Cadet 747-06436

CHUTE CRANK UPPER

$41.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 790-00650-0637

CHUTE HANDLE TILT (POWDER BLACK)

$25.99

$

Usually ships in 3-6 days

0
