19A40024100 (19A40024OEM) - Troy-Bilt 42" 3x Snow Thrower Attachment (2015) Chute Control Parts Diagram

42" 3x Snow Thrower Attachment

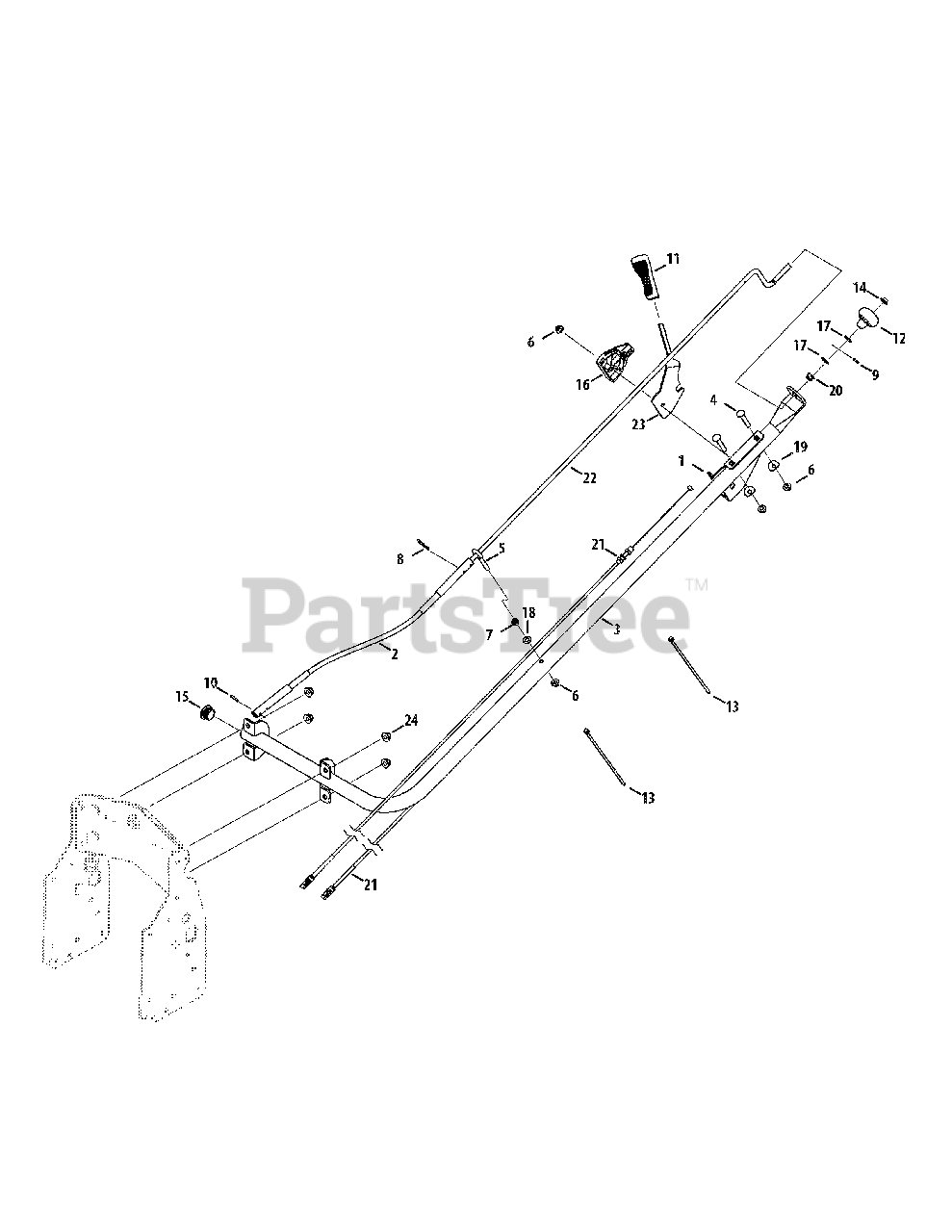

Chute Control Parts Diagram

  • Title

1

Troy-Bilt 603-0302A-0637

Assembly, Chute Tilt Bracket

$64.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 611-05064

Control Assembly

$181.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 684-05094-0637

Bracket Assembly

$156.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-0487

Screw, Carriage, 5/16-18, 2.00, Gr5

$6.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-05050

Bolt, Eye, 5/16-18 x 3.25

$7.49

$

Usually ships in 3-6 days

0

6

Troy-Bilt 712-04063

Nut, Flange Lock, 5/16-18, Grf, Nylon

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 912-3010

Nut, Hex, 5/16-18, Gr5
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 914-0101

Pin, Cotter, Int .08 x 1.42
(Superseded to 714-0101)

$

$

Not available

9

Troy-Bilt 915-0138

Pin, Roll, 1/8 OD, .63

$4.49

$

In Stock, only 1 left!

0

10

Troy-Bilt 715-04095

Pin, Spg, .156 Dia x .875 Lg

$4.99

$

In Stock, only 2 left!

0

11

Troy-Bilt 720-04049A

Grip, Handle, 3/8

$14.99

$

In Stock, only 4 left!

0

12

Troy-Bilt 720-04102

Knob, .390 ID

$6.49

$

Usually ships in 3-6 days

0

13

Troy-Bilt 725-0157

Cable, Tie, 3/16 x .05 x 7.4

$3.49

$

In Stock, only 4 left!

0

14

Troy-Bilt 926-0100

Cap, Push, 3/8 Rod
(Superseded to 726-0100)

$

$

Not available

15

MTD 731-07580

Plug, But, 1.250 Thin Wall

$6.49

$

Usually ships in 3-6 days

0

16

Troy-Bilt 731-1313C

Guide, Cable, Chute Tilt

$11.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 936-0185

Washer, Flat, .375 x .738 x .063
(Superseded to 736-0185)

$3.49

$

In Stock, Qty 16

0

18

Troy-Bilt 936-0275

Washer, Flat, .344 x .688 x .065
(Superseded to 736-0275)

$

$

Not available

19

Troy-Bilt 936-0451

Washer, Saddle, .320 x .930 x .060
(Superseded to 736-0451)

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 941-0475

Bearing, Flange, Snap .385 ID

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 946-04332A

Cable, 74.5 Lg

$64.99

$

In Stock, only 2 left!

0

22

Troy-Bilt 747-06436

Crank, Chute, .375 Dia x 34.63

$41.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 790-00650-0637

Handle, Bracket, Chute Tilt

$25.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 712-04065

Nut, Flange Lock, 3/8-16, Grf, Nylon

$3.99

$

In Stock, Qty 20+

0
