19A40026 (19A40026100) - Cub Cadet Hauler (2015) att General Assembly Parts Diagram

Hauler

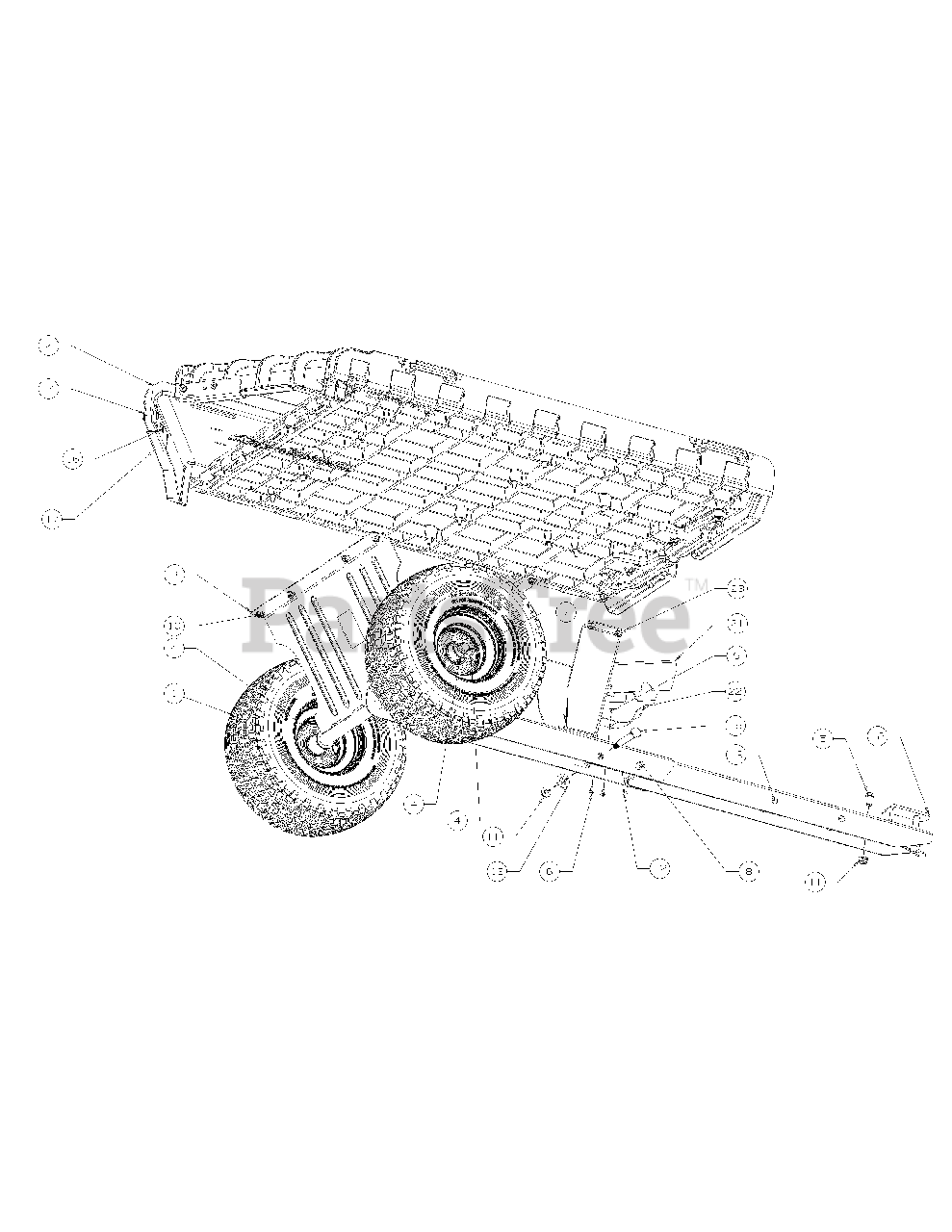

General Assembly Parts Diagram

  • Title

1

MTD 634-05166

Wheel Asm 15 X 6 X 6

$90.99

$

Usually ships in 3-6 days

0

2

Bed Asm:

Note: See Breakdown

$

$

Not available

3

MTD 689-00389

Bracket Asm-Axle Support

Variations

689-00389-0637

MTD 689-00389-0637

BRACKET ASM-AXLE S - POWDER BLACK (0637)

$155.99

$

Usually ships in 3-6 days

0

$135.99

$

Usually ships in 3-6 days

0

4

Hdwr Asm:Hauler

Note: See Breakdown

$

$

Not available

5

MTD 710-0216

Screw-Hex 3/8-16 X

$4.49

$

In Stock, Qty 8

0

6

MTD 710-04838

Screw-10 X .393

$4.99

$

Usually ships in 3-6 days

0

7

MTD 711-06444

Axle Shaft-.75 X 29.1

$104.99

$

Usually ships in 3-6 days

0

8

MTD 711-06472

Clevis Pin: 0.5 X 3.25

$6.99

$

Usually ships in 3-6 days

0

9

MTD 712-0161

Nut-Hex Ins L-#10-

$4.99

$

In Stock, Qty 16

0

10

MTD 712-04063

Nut-Flglk 5/16-18

$4.49

$

In Stock, Qty 20+

0

11

MTD 712-04065

Nut-Flange Lk.Nylo

$4.49

$

In Stock, Qty 20+

0

12

MTD 714-3020

Pin-Internal Cotte

$4.49

$

In Stock, Qty 20+

0

13

MTD 938-0347

Spacer-Shld

$10.99

$

In Stock, only 3 left!

0

14

MTD 738-04240

Nut-Shoulder .375

$7.49

$

In Stock, Qty 6

0

15

MTD 738-05140

Shoulder Screw 3/8-16

$6.99

$

Usually ships in 3-6 days

0

16

MTD 738-05145

Shoulder Screw: 1/4-20

$4.49

$

In Stock, only 2 left!

0

17

MTD 789-00231

Latch-Door
(Superseded to 789-00231A)

Variations

789-00231-0662

MTD 789-00231-0662

LATCH-DOOR - OYSTER GRAY (0662)

$10.99

$

In Stock, only 2 left!

0

789-00231-4021

MTD 789-00231-4021

LATCH-DOOR - CUB YELLOW 2 (4021)

$12.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0

18

MTD 789-00233

Bracket-Tounge
(Superseded to 789-00233A)

Variations

789-00233-0637

MTD 789-00233-0637

Tounge Bracket - POWDER BLACK (0637)

$24.99

$

In Stock, only 2 left!

0

$24.99

$

In Stock, only 2 left!

0

19

MTD 789-00234

Bracket-Tounge Extension
(Superseded to 989-00234A)

Variations

789-00234-0637

MTD 789-00234-0637

Tongue Extension Bracket - POWDER BLACK (0637)

$86.99

$

In Stock, only 1 left!

0

$86.99

$

In Stock, only 1 left!

0

20

MTD 789-00235

Bracket-Tounge Fixed
(Superseded to 789-00235A)

Variations

789-00235-0637

MTD 789-00235-0637

BRACKET-TOUNGE FIX - POWDER BLACK (0637)

$88.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

21

MTD 789-00237

Pedal-Dump Release
(Superseded to 789-00237A)

Variations

789-00237-0637

MTD 789-00237-0637

PEDAL-DUMP RELEASE - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

22

MTD 789-00239

Bracket-Release

$9.99

$

Usually ships in 3-6 days

0

23

MTD 789-00240

Bracket-Lock
(Superseded to 789-00240A)

Variations

789-00240-0637

MTD 789-00240-0637

BRACKET-LOCK - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$66.99

$

Usually ships in 3-6 days

0
