19A40026OEM - MTD EZ-Stow (2015) Bed Assembly Parts Diagram

EZ-Stow

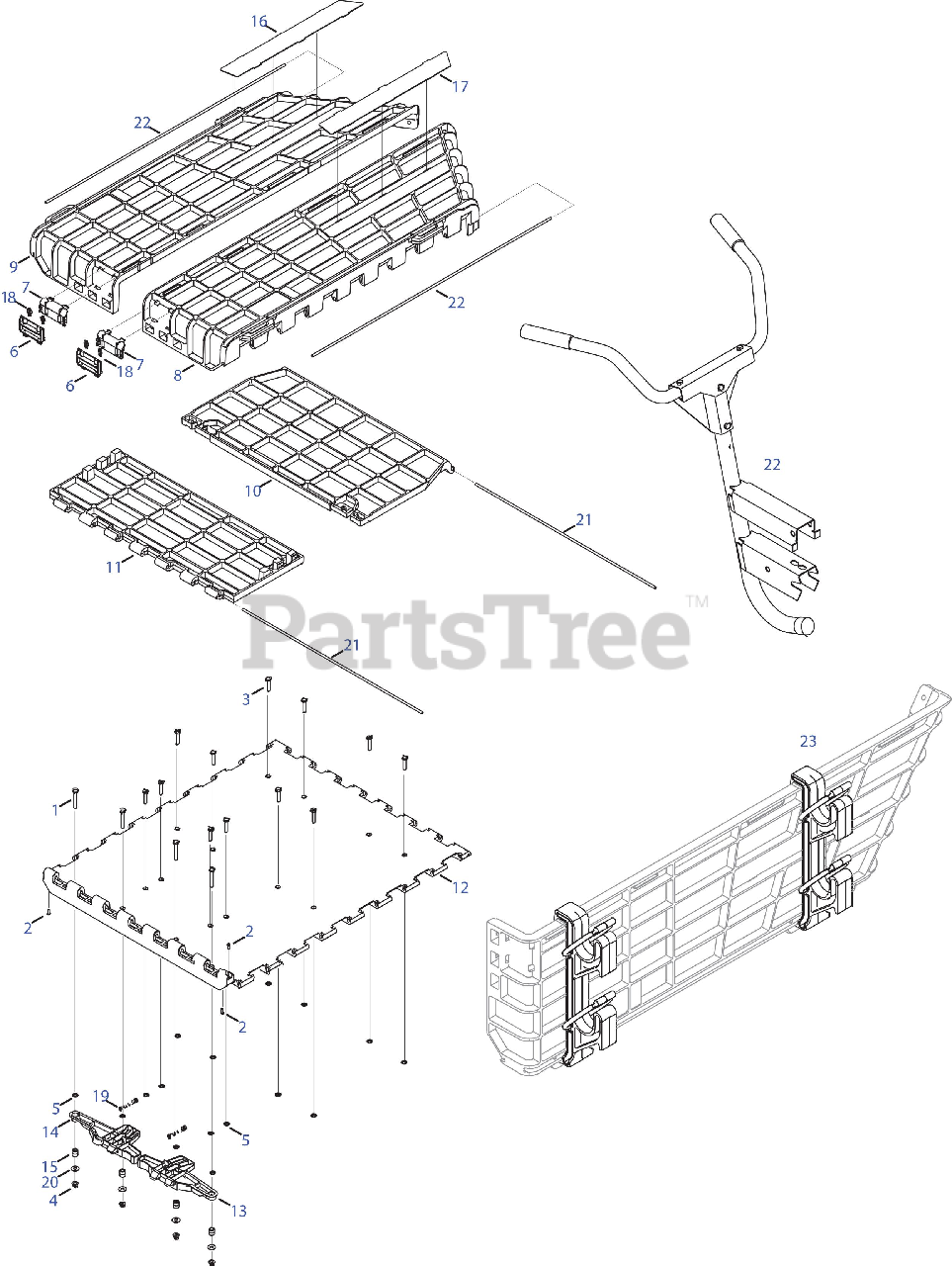

Bed Assembly Parts Diagram

  • Title

1

MTD 710-0395

Hex Screw, 5/16-18 x 2.25

$4.49

$

In Stock, Qty 7

0

2

MTD 710-04326

Hex Washer Screw, #8-16 x .50

$3.99

$

In Stock, Qty 11

0

3

MTD 710-0805A

Hex Screw, 5/16-18 x 1.50

$3.99

$

In Stock, Qty 12

0

4

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

5

MTD 726-0201

Speed Nut, .3125

$6.49

$

In Stock, Qty 20+

0

6

MTD 731-11541

Panel Latch

$

$

Not available

7

MTD 731-11542

Panel Latch Retainer

$

$

Not available

8

MTD 931-11050

LH Side Panel
(Superseded to 931-11050B)

$76.99

$

Usually ships in 3-6 days

0

9

MTD 931-11051

RH Side Panel
(Superseded to 931-11051B)

$88.99

$

Usually ships in 3-6 days

0

10

MTD 931-11052

Tailgate
(Superseded to 931-11052A)

$58.99

$

Usually ships in 3-6 days

0

11

MTD 931-11055

Front Panel

$

$

Not available

12

MTD 931-11056

Base Panel

$72.99

$

Usually ships in 3-6 days

0

13

MTD 731-11544

RH Door Release Lever

$7.99

$

Usually ships in 3-6 days

0

14

MTD 731-11543

LH Door Release Lever

$7.99

$

Usually ships in 3-6 days

0

15

MTD 731-11060

Lever Spacer, .32 x .63 x .64 LG

$

$

Not available

16

MTD 731-11537

RH Logo Plate

$10.99

$

Usually ships in 3-6 days

0

17

MTD 731-11538

LH Logo Plate

$10.99

$

Usually ships in 3-6 days

0

18

MTD 732-05329

Compression Spring, 1.00 x .313

$2.99

$

In Stock, Qty 5

0

19

MTD 732-05330

Compression Spring, 2.50 x. 480

$2.99

$

Usually ships in 3-6 days

0

20

MTD 936-0159

Flat Washer, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

21

MTD 747-06517

Rod, .25 x 27.5

$13.99

$

Usually ships in 3-6 days

0

22

MTD 747-06518

Rod, .250 x 36

$14.99

$

Usually ships in 3-6 days

0

23

MTD 19A40027OEM

EZ-Stow? Handles

Note: Optional Attachments

$121.99

$

Usually ships in 3-6 days

0

24

MTD 19A40030OEM

EZ-Stow? Toolholders

Note: Optional Attachments

$56.99

$

Usually ships in 3-6 days

0
