19A40026OEM - Troy-Bilt EZ-Stow (2015) General Assembly Parts Diagram

EZ-Stow

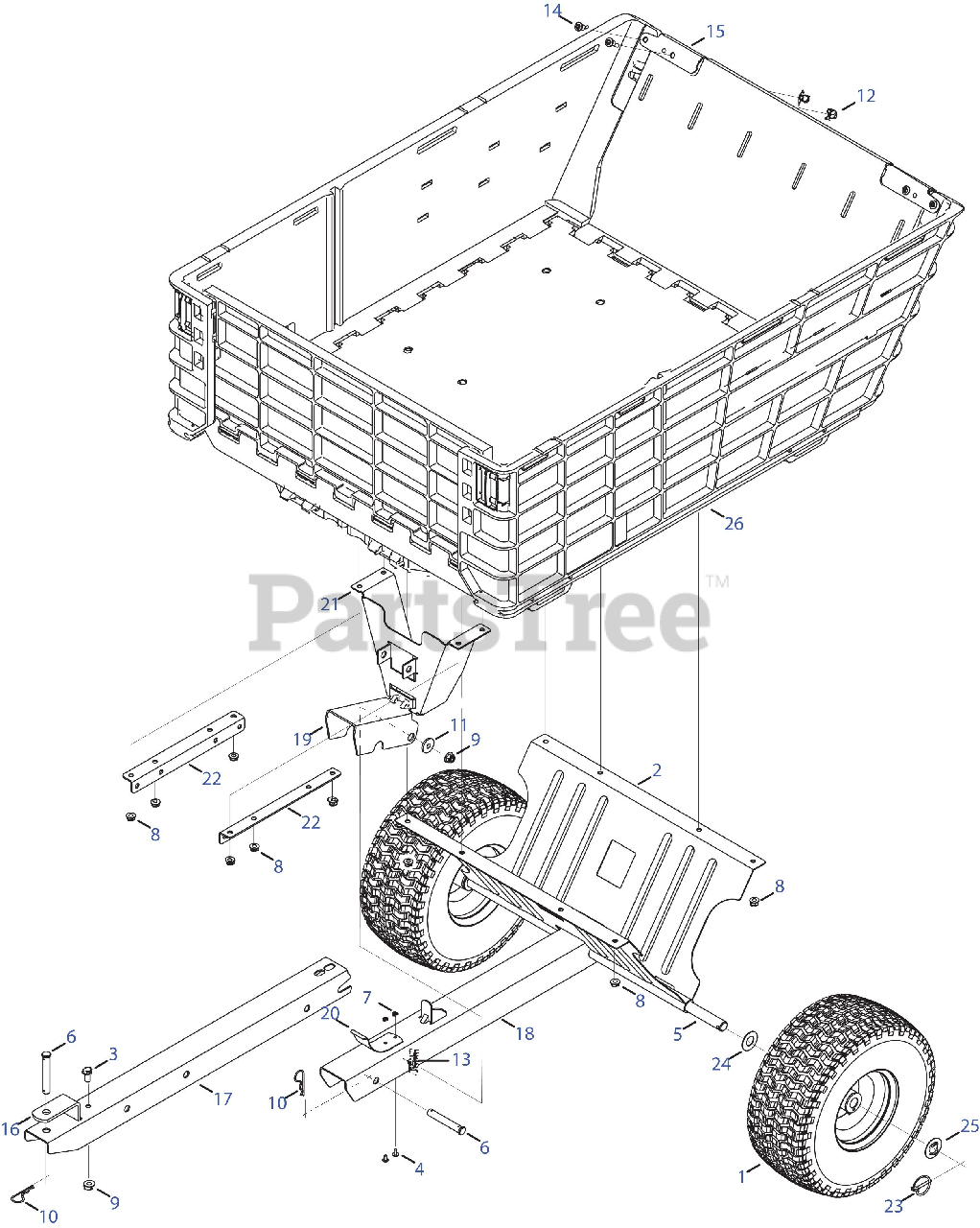

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 634-05205

Wheel Assembly, 15 x 6 x 6

$132.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 689-00389

Hauler Support Axle Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 689-00389-0637

BRACKET ASM-AXLE S - POWDER BLACK (0637)

$155.99

$

Usually ships in 3-6 days

0

$135.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-0216

Hex Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 8

0

4

Troy-Bilt 710-04838

Screw, 10-24 x .393

$4.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 711-06444

Axle Shaft, .750 x 29.88

$104.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 711-06472

Clevis Pin, .50 x 3.25

$6.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 712-0161

Hex Lock Nut, #10-24

$4.99

$

In Stock, Qty 16

0

8

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 714-3020

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 938-0347

Shoulder Spacer, .625 x .169

$10.99

$

In Stock, only 3 left!

0

12

Troy-Bilt 738-04240

Shoulder Nut, .375 x .5

$7.49

$

In Stock, Qty 6

0

13

Troy-Bilt 738-05140

Shoulder Screw, 3/8-16 x .500 x 2.875

$6.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 738-05145

Shoulder Screw, 1/4-20 x .375 x .500

$4.49

$

In Stock, only 2 left!

0

15

Troy-Bilt 789-00231

Tailgate Latch
(Superseded to 789-00231A)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 789-00231-0662

LATCH-DOOR - OYSTER GRAY (0662)

$10.99

$

In Stock, only 2 left!

0

Troy-Bilt 789-00231-4021

LATCH-DOOR - CUB YELLOW 2 (4021)

$12.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 789-00233

Tongue Hitch Bracket
(Superseded to 789-00233A)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 789-00233-0637

Tounge Bracket - POWDER BLACK (0637)

$24.99

$

In Stock, only 2 left!

0

$24.99

$

In Stock, only 2 left!

0

17

Troy-Bilt 789-00234

Tongue
(Superseded to 989-00234A)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 789-00234-0637

Tongue Extension Bracket - POWDER BLACK (0637)

$86.99

$

In Stock, only 1 left!

0

$86.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 789-00235

Fixed Tongue Bracket
(Superseded to 789-00235A)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 789-00235-0637

BRACKET-TOUNGE FIX - POWDER BLACK (0637)

$88.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 789-00237

Dump Pedal
(Superseded to 789-00237A)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 789-00237-0637

PEDAL-DUMP RELEASE - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 789-00239

Pedal Release Spring

$9.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 789-00240

Lock Bracket
(Superseded to 789-00240A)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 789-00240-0637

BRACKET-LOCK - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$66.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 789-00257

Hauler Support Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 789-00257-0637

BRACKET SUPPORT - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 753-04070

Lynch Pin, .1875

$10.99

$

In Stock, Qty 16

0

24

Troy-Bilt 936-0351

Flat Washer, .760 x 1.490 x .030
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 736-04228A

Flat Washer, .781 x 1.590
(Superseded to 736-04228B)

$5.99

$

In Stock, Qty 20+

0

26

Bed Assembly

$

$

Not available
