19A40033 (19A40033100) - Cub Cadet XT3 Sun Shade (2016) General Assembly Parts Diagram

XT3 Sun Shade

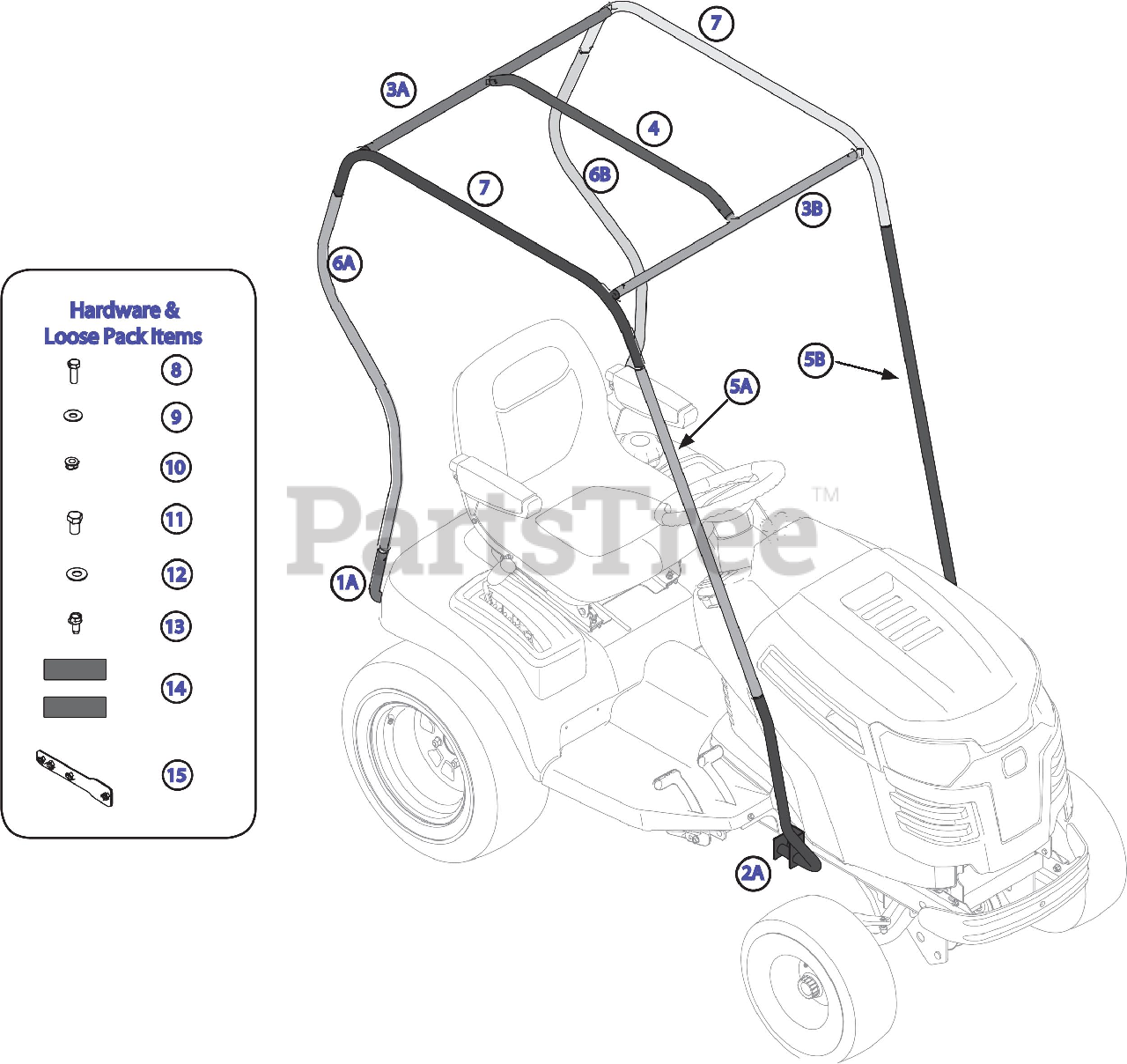

General Assembly Parts Diagram

  • Title

1A

Cub Cadet 749-05437

Rear Bottom Right Support

$36.99

$

Usually ships in 3-6 days

0

1A

Cub Cadet 749-05438

Rear Bottom Left Support (NS)
(Superseded to 749-05438A)

$36.99

$

Usually ships in 3-6 days

0

2A

Cub Cadet 649-05084

Right Front Bottom Support
(Superseded to 649-05084A)

$31.99

$

Usually ships in 3-6 days

0

2A

Cub Cadet 649-05085

Left Front Bottom Support (NS)
(Superseded to 649-05085A)

$31.99

$

Usually ships in 3-6 days

0

3A

Cub Cadet 749-05386

Rear Top Cross Support

$26.99

$

Usually ships in 3-6 days

0

3B

Cub Cadet 749-05386

Front Top Cross Support

$26.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 749-05408

Top Center Support

$26.99

$

Usually ships in 3-6 days

0

5A

Cub Cadet 749-05434

Front Right Side Support

$36.99

$

Usually ships in 3-6 days

0

5B

Cub Cadet 749-05434

Front Left Side Support

$36.99

$

Usually ships in 3-6 days

0

6A

Cub Cadet 749-05435

Right Rear Side Support
(Superseded to 749-05435A)

$29.99

$

Usually ships in 3-6 days

0

6B

Cub Cadet 749-05436

Left Rear Side Support

$34.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 649-05053

Top Side Support
(Superseded to 649-05053A)

$28.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0376

Hex Screw, 5?16-18: 1.0

$3.99

$

In Stock, Qty 17

0

9

Cub Cadet 736-0371

Washer, .343 x .800 x .062

$4.49

$

In Stock, Qty 7

0

10

Cub Cadet 712-04063

Flange Lock Nut, 5?16-18

$3.99

$

In Stock, Qty 20+

0

11

n/a

Hex Screw, 7/ 16-14: .750

$

$

Not available

12

Cub Cadet 736-04006

Flat Washer, .444 x 1.0 x .057

$3.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-1260A

Hex Screw, 5?16-18: .75

$3.49

$

In Stock, Qty 20+

0

14

Cub Cadet 777X45500

Reflector Labels

Note: * -- If equipped

$19.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 683-05242

Mounting Bracket

$25.99

$

Usually ships in 3-6 days

0

NS

Cub Cadet 714-05013

Spring Button Clip

$7.99

$

Usually ships in 3-6 days

0

NS

Cub Cadet 790-00729

Snow Cab XT-3
(Superseded to 790-00729A)

Note: * -- If equipped

$557.99

$

Usually ships in 3-6 days

0

NS

Cub Cadet 790-00710

Sun Shade

Note: * -- If equipped

$

$

Not available
