19A40035 (19A40035100) - Cub Cadet 8 Cubic Feet Poly Cart General Assembly Parts Diagram

8 Cubic Feet Poly Cart

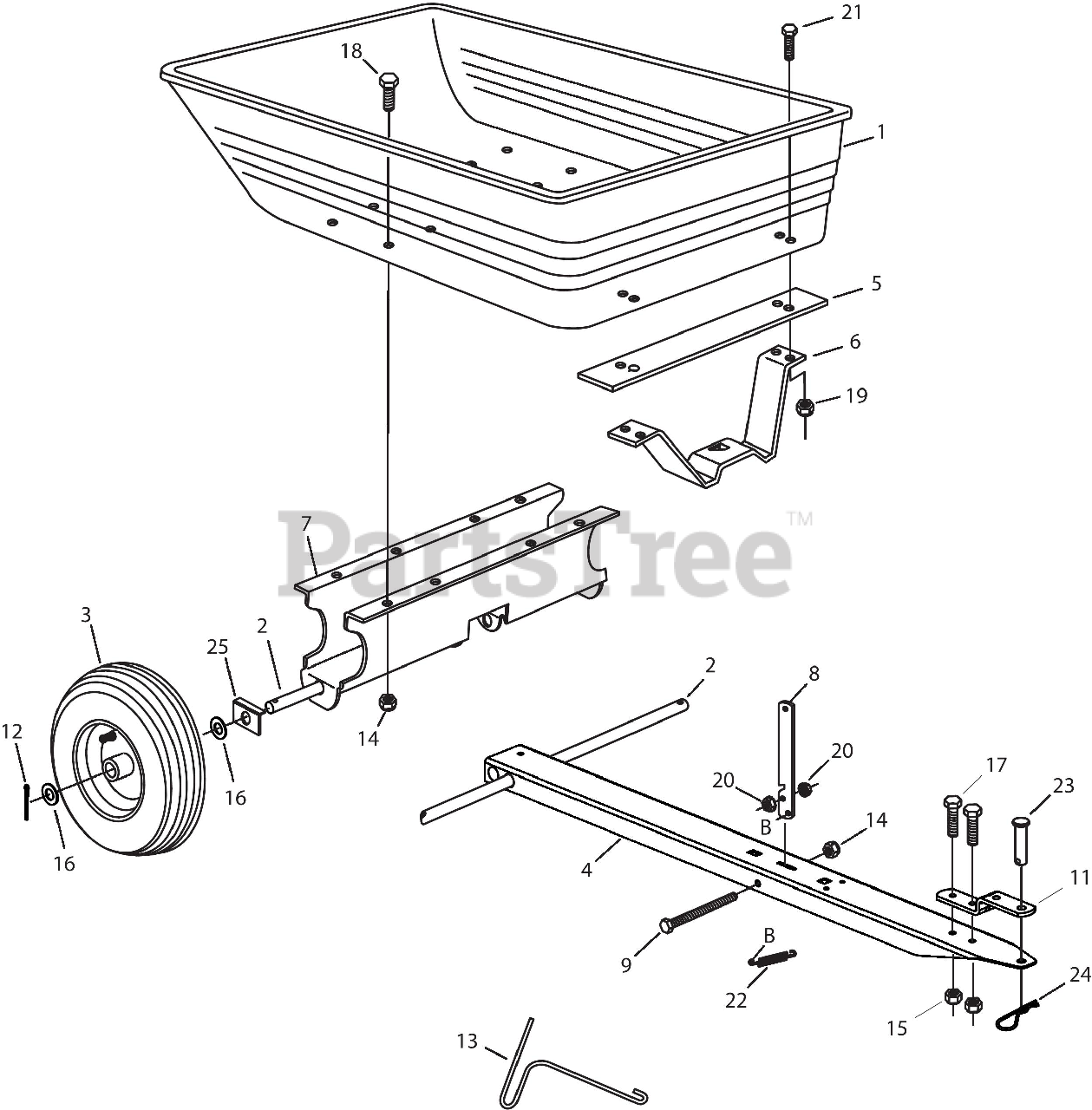

General Assembly Parts Diagram

  • Title

1

Cub Cadet AF-40472

Poly Tray

$194.99

$

Usually ships in 3-6 days

0

2

Cub Cadet AF-24908

Axle 5/8

$18.99

$

Usually ships in 3-6 days

0

3

Cub Cadet AF-40880

Wheel Assembly

$56.99

$

Usually ships in 3-6 days

0

4

Cub Cadet AF-27715

Tounge Draw Bar

$38.99

$

Usually ships in 3-6 days

0

5

Cub Cadet AF-24386

Latch Stand Plate

$6.49

$

Usually ships in 3-6 days

0

6

Cub Cadet AF-24497-0637

Bracket-Lat

$24.99

$

Usually ships in 3-6 days

0

7

Cub Cadet AF-24527

Wheel Support

$54.99

$

Usually ships in 3-6 days

0

8

Cub Cadet AF-24498

Lever-Latch Lock
(Superseded to AF-24498BL1)

$11.99

$

Usually ships in 3-6 days

0

9

Cub Cadet AF-47407

Hex Bolt 5/16 X 3-3/4

$1.49

$

Usually ships in 3-6 days

0

11

Cub Cadet AF-23687

Bracket-Hitch

$30.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 914-0470

Cotter Pin-1/8 D
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 15

0

13

Cub Cadet AF-47622

Puller-Spring

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 912-0429

Hex Nut Ins
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-0130

Hex Nut Ins L-3/

$4.49

$

In Stock, only 4 left!

0

16

Cub Cadet AF-R19212016

Washer-Pivot 21/32

$1.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 910-0253

Hex Screw 3/8-16
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet AF-43182

Hex Bolt 5/16-18 X 3/4

$1.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 712-0324

Nut-Nylon Lk 1/4

$3.99

$

In Stock, only 4 left!

0

20

Cub Cadet AF-46980

Hex Nut
(Superseded to 712-0265)

$3.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-3015

Hex Screw 1/4-20

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet AF-47408

Extension Spring

$4.49

$

Usually ships in 3-6 days

0

23

Cub Cadet AF-HA23638

Hitch Pin

$3.99

$

Usually ships in 3-6 days

0

24

Cub Cadet AF-43343

Hairpin Cotter 1/8

$13.99

$

Usually ships in 3-6 days

0

25

Cub Cadet AF-25910

Axle Keeper

$2.49

$

Usually ships in 3-6 days

0

769-11326

Owners Manual

$

$

Not available
