19A40036 (19A40036100) - Cub Cadet 12 Cubic Feet Steel Cart General Assembly Parts Diagram

12 Cubic Feet Steel Cart

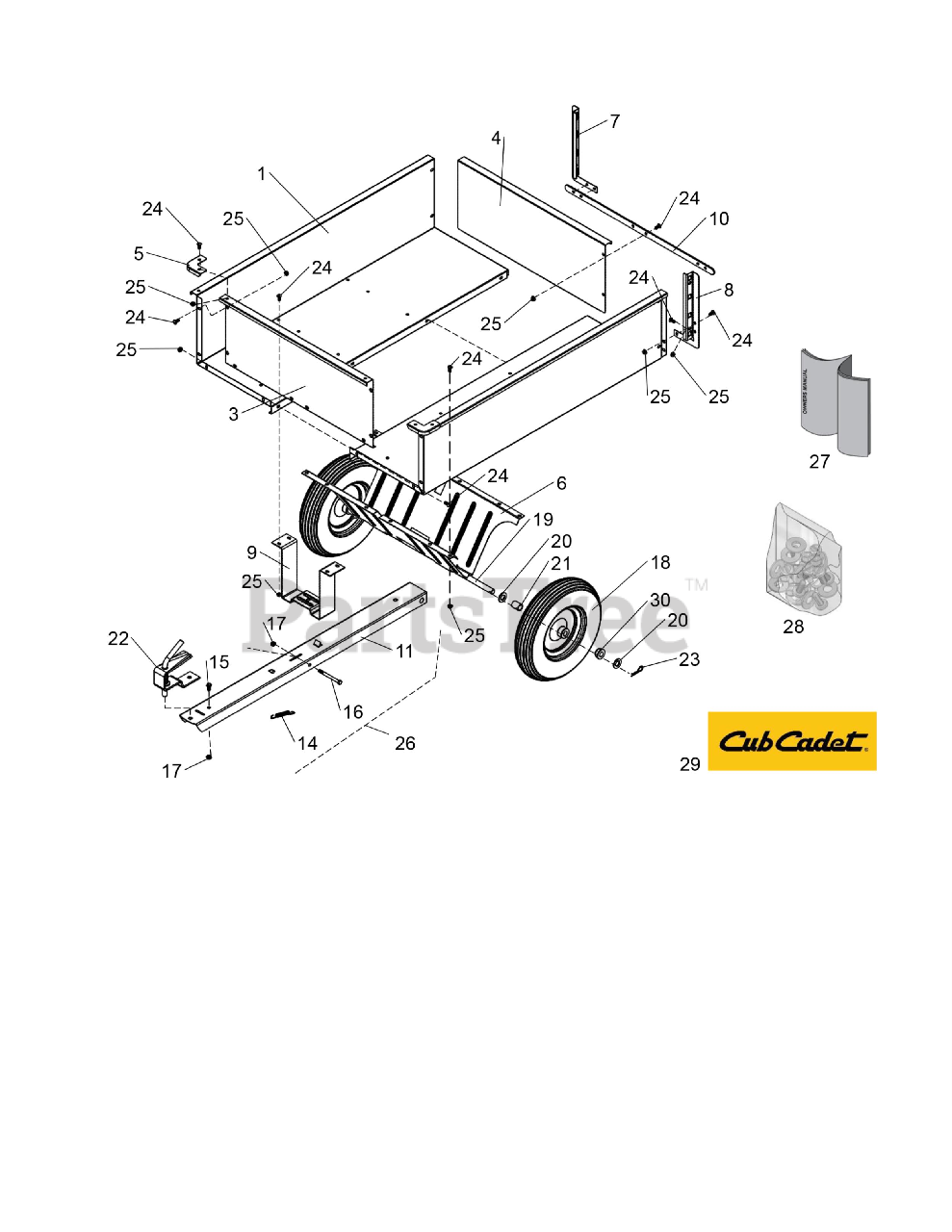

General Assembly Parts Diagram

  • Title

1

Cub Cadet OS-401011Y

Body Half (Rh)

$86.99

$

Usually ships in 3-6 days

0

1

Cub Cadet OS-401021Y

Body Half (Lh)

$

$

Not available

3

Cub Cadet OS-401031Y

Gate Front

$

$

Not available

4

Cub Cadet OS-401041Y

Tailgate

$

$

Not available

5

Cub Cadet OS-401051Y

Corner Guard

$

$

Not available

6

Cub Cadet OS-401061

Undercarriage

$

$

Not available

7

Cub Cadet OS-401071Y

Retainer Gate (Rh)

$

$

Not available

8

Cub Cadet OS-401081Y

Retainer Gate (Lh)

$

$

Not available

9

Cub Cadet OS-401091

Support Front

$

$

Not available

10

Cub Cadet OS-401131Y

Rear Bar Support

$

$

Not available

11

n/a

Drawbar

Note: Order Ref 26

$

$

Not available

14

Cub Cadet OS-300131

Spring Latch

$

$

Not available

15

Cub Cadet OS-300052

Hex Bolt 3/8-16 X 3/4"

$

$

Not available

16

Cub Cadet OS-300053

Hex Bolt 3/8-16 X 4"

$

$

Not available

17

Cub Cadet OS-300061

Hex Nut 3/8-16 C-Lock

$

$

Not available

18

Cub Cadet OS-6002415-C

Wheel Assembly

$

$

Not available

19

Cub Cadet OS-300001

Axle

$

$

Not available

20

Cub Cadet OS-3000721

Washer 3/4" Sae

$

$

Not available

21

Cub Cadet OS-6000105

Spacer 3/4"X1.250"

$

$

Not available

22

Cub Cadet OS-6000612

Spring Loaded Hitch Bracket

$

$

Not available

23

Cub Cadet OS-300084

Cotter Hairpin

$

$

Not available

24

Cub Cadet OS-300054

Truss Hd Screw 5/16-18 X 3/4"

$

$

Not available

25

Cub Cadet OS-6000418

Spinner Grip Nut 5/16-18

$

$

Not available

26

Cub Cadet OS-501012

Drawbar Assembly

$

$

Not available

27

769-11334

Manual

$

$

Not available

28

Cub Cadet OS-3010355

Hardware Bolt Bag

$

$

Not available

29

n/a

Decal

$

$

Not available

30

Cub Cadet OS-6000809

Wheel Bushing Kit 3/4"

$

$

Not available
