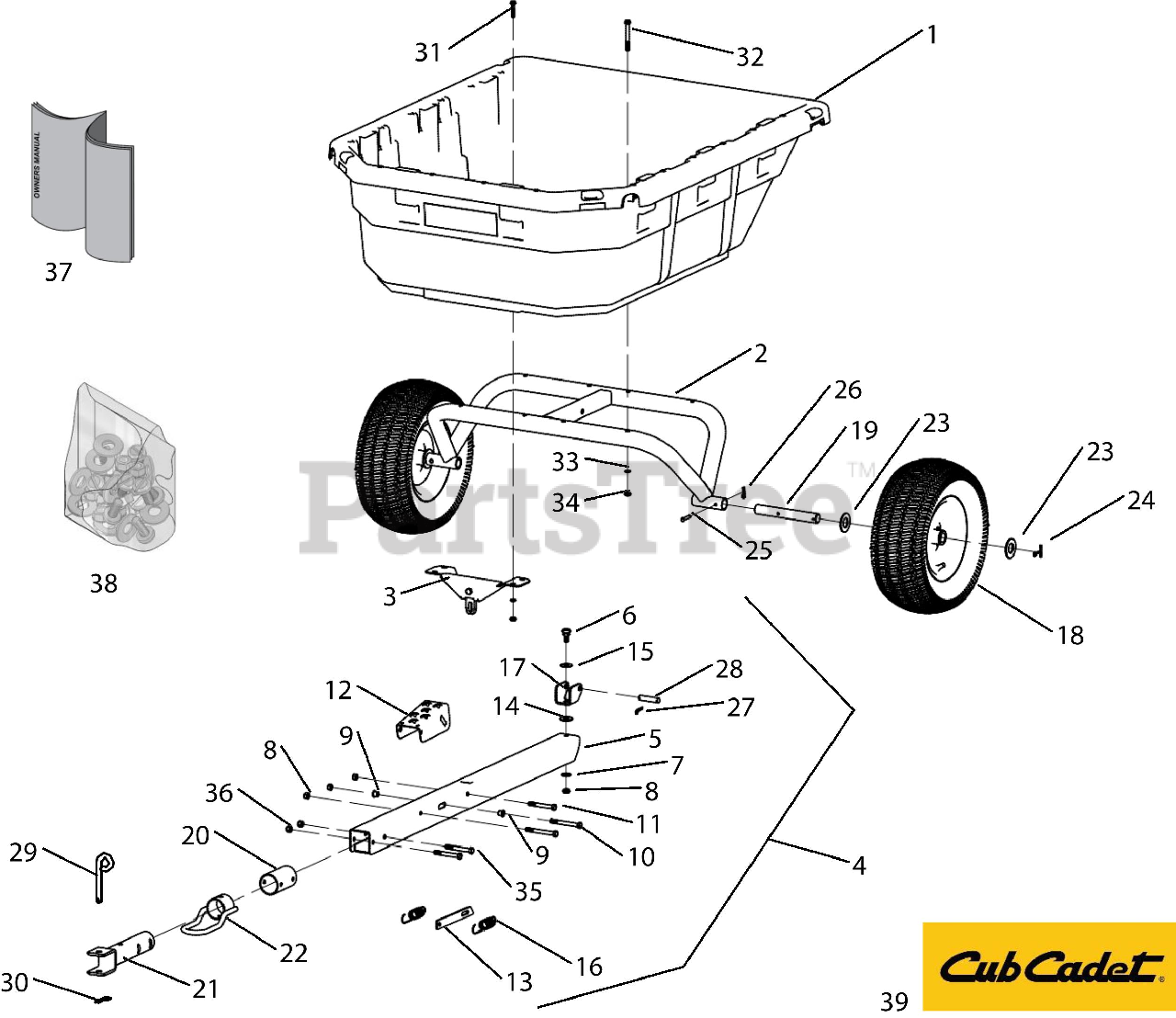

19A40037 (19A40037100) - Cub Cadet 12.5 Cubic Feet Hybrid UV Cart General Assembly Parts Diagram

12.5 Cubic Feet Hybrid UV Cart

General Assembly Parts Diagram

  • Title

1

Cub Cadet OS-311161

Poly Body

$

$

Not available

2

Cub Cadet OS-6000320

Undercarriage

$

$

Not available

3

Cub Cadet OS-6000311

Front Support

$

$

Not available

4

Cub Cadet OS-6000323-CC

Drawbar Assembly

$

$

Not available

5

n/a

Drawbar

Note: Order Ref 4

$

$

Not available

6

Cub Cadet OS-6000369

Shoulder Bolt

$

$

Not available

7

Cub Cadet OS-3000720

Washer 3/8" Uss

$

$

Not available

8

Cub Cadet OS-300061

Hex Nut 3/8-16 C-Lock

$

$

Not available

9

Cub Cadet OS-6000727-C

Bushing

$

$

Not available

10

Cub Cadet OS-6000370

Hex Bolt 3/8-16 X 3-1/2"

$

$

Not available

11

Cub Cadet OS-300055

Hex Bolt 3.8-16 X 3"

$

$

Not available

12

Cub Cadet OS-6000323-CC

Foot Pedal

$

$

Not available

13

Cub Cadet OS-6000309

Latch

$

$

Not available

14

Cub Cadet OS-300075

Washer 1/2" Uss

$

$

Not available

15

Cub Cadet OS-6000368

Spring Washer

$

$

Not available

16

Cub Cadet OS-6000325

Latch Spring

$

$

Not available

17

Cub Cadet OS-6000321

Swivel Clevis

$

$

Not available

18

Cub Cadet OS-6000727-C

Wheel

$

$

Not available

19

Cub Cadet OS-6000367

Stub Axle
(Superseded to OS-6000523)

$

$

Not available

20

Cub Cadet OS-6000379

Hitch Bushing

$

$

Not available

21

Cub Cadet OS-6000534

Hybrid Hitch

$

$

Not available

22

Cub Cadet OS-6000536

Hitch Keeper

$

$

Not available

23

Cub Cadet OS-300076

1" Sae Flat Washer

$

$

Not available

24

Cub Cadet OS-300087

Cotter Pin 3/16" X 1-1/2"

$

$

Not available

25

Cub Cadet OS-3000811

Clevis Pin 1/4" X 1-1/2"

$

$

Not available

26

Cub Cadet OS-3000812

Hairpin Cotter 1-3/16"

$

$

Not available

27

Cub Cadet OS-6000372

Hairpin Cotter 1-9/16"

$

$

Not available

28

Cub Cadet OS-6000371

Pin 1/2" X 2-13/32"

$

$

Not available

29

Cub Cadet OS-6000533

Hitch Pin

$

$

Not available

30

Cub Cadet OS-300084

Cotter Hairpin

$

$

Not available

31

Cub Cadet OS-3000528

5/16-18 X 1-1/2" Hex Bolt

$

$

Not available

32

Cub Cadet OS-6000373

5/16-18 X 3" Hex Bolt

$

$

Not available

33

Cub Cadet OS-6000409

5/16" Split Lock Washer

$

$

Not available

34

Cub Cadet OS-6000410

5/16-18 Hex Nut

$

$

Not available

35

Cub Cadet OS-6000378

3/8-16 X 3" Hex Bolt

$

$

Not available

36

Cub Cadet OS-310061

3/8-16 Nyloc Nut

$

$

Not available

37

769-11335

Manual

$

$

Not available

38

Cub Cadet OS-6000462

Hardware Bolt Bag
(Superseded to OS-6000761)

$

$

Not available

39

n/a

Decal

$

$

Not available
