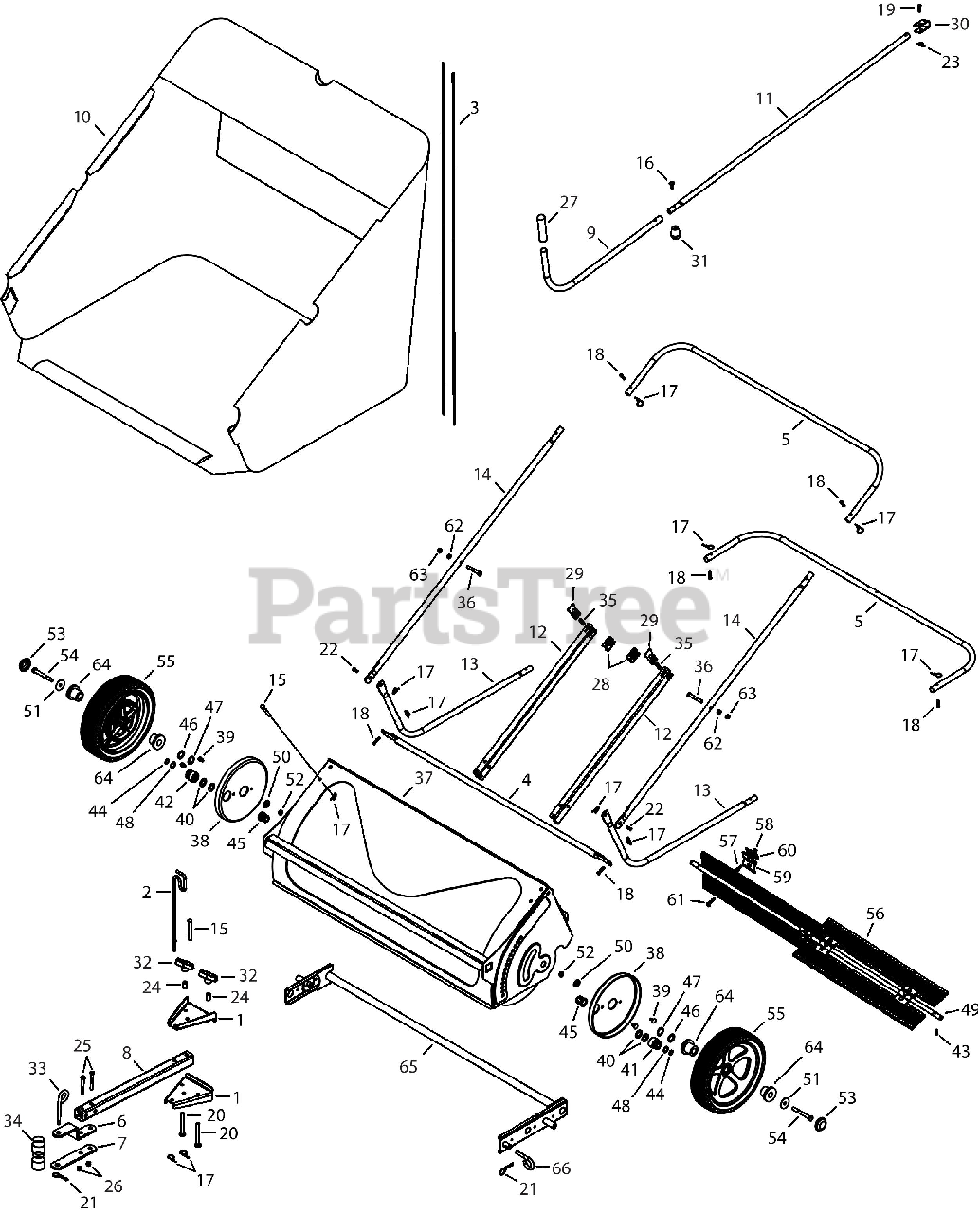

19A40038 (19A40038100) - Cub Cadet 44" Lawn Sweeper General Assembly Parts Diagram

44" Lawn Sweeper

General Assembly Parts Diagram

  • Title

1

Cub Cadet AF-27425

Drawbar Bracket

$18.99

$

Usually ships in 3-6 days

0

2

Cub Cadet AF-42661

Handle Holder

$17.99

$

Usually ships in 3-6 days

0

3

Cub Cadet AF-42646

Hopper Support Rod

$1.99

$

In Stock, only 4 left!

0

4

Cub Cadet AF-42020

Bag Frame Tube

$12.99

$

Usually ships in 3-6 days

0

5

Cub Cadet AF-42649

Rear Hopper Tube

$26.99

$

Usually ships in 3-6 days

0

6

Cub Cadet AF-23014-0637

Hitch Bracket

$54.99

$

Usually ships in 3-6 days

0

7

Cub Cadet AF-24192

Hitch Bracket (Straight)

$30.99

$

Usually ships in 3-6 days

0

8

Cub Cadet AF-27421

Drawbar

$27.99

$

Usually ships in 3-6 days

0

9

Cub Cadet AF-42648

Lower Handle Tube

$12.99

$

Usually ships in 3-6 days

0

10

Cub Cadet AF-42904

Hopper Bag

$109.99

$

Usually ships in 3-6 days

0

11

Cub Cadet AF-42647

Upper Handle Tube

$19.99

$

Usually ships in 3-6 days

0

12

Cub Cadet AF-27424

Bag Arm

$14.99

$

Usually ships in 3-6 days

0

13

Cub Cadet AF-40897

Lower Hopper Tube

$12.99

$

In Stock, only 1 left!

0

14

Cub Cadet AF-42539

Upper Hopper Tube

$20.99

$

Usually ships in 3-6 days

0

15

Cub Cadet AF-HA23636

Clevis Pin, 3/8 x 2-1/4"

$2.49

$

Usually ships in 3-6 days

0

16

Cub Cadet AF-43978

Bolt, 1/4-20 x 1"

$3.49

$

Usually ships in 3-6 days

0

17

Cub Cadet AF-47134

Hair Pin, 3/32 x 1.8"

$6.49

$

In Stock, only 2 left!

0

18

Cub Cadet AF-48365

Clevis Pin, 1/4 x 1.11"

$3.99

$

Usually ships in 3-6 days

0

19

Cub Cadet AF-43259

Clevis Pin, 5/16 x 1-1/4"

$5.49

$

Usually ships in 3-6 days

0

20

Cub Cadet AF-44217

Carriage Bolt, 5/16-18 x 3"

$0.99

$

Usually ships in 3-6 days

0

21

Cub Cadet AF-43343

Hair Cotter Pin, 3/32 x 2-5/16"

$11.99

$

Usually ships in 3-6 days

0

22

Cub Cadet AF-48366

Clevis Pin, 3/8 x 1/2"

$8.49

$

Usually ships in 3-6 days

0

23

Cub Cadet AF-HA3090

Hair Cotter Pin, .08 x 1-1/8"

$1.49

$

Usually ships in 3-6 days

0

24

Cub Cadet AF-42659

Spacer, 3/4"

$1.49

$

Usually ships in 3-6 days

0

25

Cub Cadet AF-44292

Bolt, Hex 5/16-18 x 2-1/2"

$1.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 912-0429

Nut, Nylock 5/16-18
(Superseded to 712-0429)

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet AF-7071

Handle Grip

$2.49

$

Usually ships in 3-6 days

0

28

Cub Cadet AF-27426

Pivot Rod Support Bracket

$2.49

$

Usually ships in 3-6 days

0

29

Cub Cadet AF-26484

Pivot Rod Retainer

$2.49

$

Usually ships in 3-6 days

0

30

Cub Cadet AF-23878

U-Clamp

$12.99

$

In Stock, only 1 left!

0

31

Cub Cadet AF-42651

Knob

$7.49

$

Usually ships in 3-6 days

0

32

Cub Cadet AF-43720

Wing Knob

$16.99

$

Usually ships in 3-6 days

0

33

Cub Cadet AF-23353

Hitch Pin

$36.99

$

Usually ships in 3-6 days

0

34

Cub Cadet AF-23368

Spacer

$14.99

$

Usually ships in 3-6 days

0

35

Cub Cadet AF-41036

Compression Spring

$0.99

$

Usually ships in 3-6 days

0

36

Cub Cadet AF-43432

Hex Bolt, 3/8-16 x 2-1/2"

$

$

Not available

37

Cub Cadet AF-67634

Sweeper Housing

$262.99

$

Usually ships in 3-6 days

0

38

Cub Cadet AF-41035

Dust Cover

$5.99

$

Usually ships in 3-6 days

0

39

Cub Cadet AF-48373

Pop Rivet

$1.49

$

Usually ships in 3-6 days

0

40

Cub Cadet AF-40001

Shim Washer

$1.49

$

Usually ships in 3-6 days

0

41

Cub Cadet AF-48651

Pinion Gear (LH)

$9.99

$

In Stock, only 1 left!

0

42

Cub Cadet AF-48652

Pinion Gear (RH)

$10.99

$

In Stock, only 1 left!

0

43

Cub Cadet AF-47046

Dowel Pin, 1/4 x 3/4"

$6.49

$

In Stock, only 2 left!

0

44

Cub Cadet AF-42094

Retaining Ring

$0.99

$

Usually ships in 3-6 days

0

45

AF-67407

Bearing Assembly

$

$

Not available

46

Cub Cadet HG-44008

Washer, 1-1/8"

$3.99

$

Usually ships in 3-6 days

0

47

Cub Cadet AF-1540-31

Washer, 1-1/4"

$1.49

$

Usually ships in 3-6 days

0

48

Cub Cadet AF-42093

Washer, .598"

$0.99

$

Usually ships in 3-6 days

0

49

Cub Cadet AF-40722

Brush Shaft

$44.99

$

Usually ships in 3-6 days

0

50

Cub Cadet AF-26538

Step Spacer

$10.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 736-0234

Washer, 1-1/4"

$5.99

$

Usually ships in 3-6 days

0

52

Cub Cadet AF-1038

Nylock Jam Nut, 3/8"

$0.99

$

Usually ships in 3-6 days

0

53

Cub Cadet AF-41017

Hub Cap

$0.99

$

Usually ships in 3-6 days

0

54

Cub Cadet AF-44961

Hex Bolt, 3/8-24 x 3-1/4"

$3.49

$

Usually ships in 3-6 days

0

55

Cub Cadet AF-40987

Wheel

$57.99

$

Usually ships in 3-6 days

0

56

Cub Cadet AF-46780

Brush

$27.99

$

In Stock, Qty 7

0

57

Cub Cadet 710-3015

Hex Bolt, 1/4-20 x 3/4"

$3.99

$

In Stock, Qty 20+

0

58

Cub Cadet 712-0324

Nylock Nut, 1/4"

$3.49

$

In Stock, Qty 20+

0

59

Cub Cadet AF-23580

Brush Retainer (Double)

$11.99

$

In Stock, Qty 5

0

60

Cub Cadet AF-23581

Brush Retainer (SIngle)

$12.99

$

In Stock, Qty 7

0

61

Cub Cadet 710-0597

Hex Bolt, 1/4-20 x 1"

$3.99

$

In Stock, Qty 19

0

62

Cub Cadet 712-3008

Jam Nut, 3/8"

$4.49

$

In Stock, Qty 20+

0

63

Cub Cadet AF-42210

Nylock Jam Nut, 3/8"

$0.99

$

Usually ships in 3-6 days

0

64

Cub Cadet AF-45088

Wheel Bearing

$13.99

$

In Stock, only 2 left!

0

65

Cub Cadet AF-68539

Height Adjustment Tube

$243.99

$

Usually ships in 3-6 days

0

66

Cub Cadet AF-43038

Pivot Lock Pin 3/8" x 1-1/2"

$14.99

$

Usually ships in 3-6 days

0

769-11327

Owner's Manual

$

$
