19A40041 (19A40041100) - Cub Cadet XT3 Sleeve Hitch Kit (2016) Replacement Parts Parts Diagram

XT3 Sleeve Hitch Kit

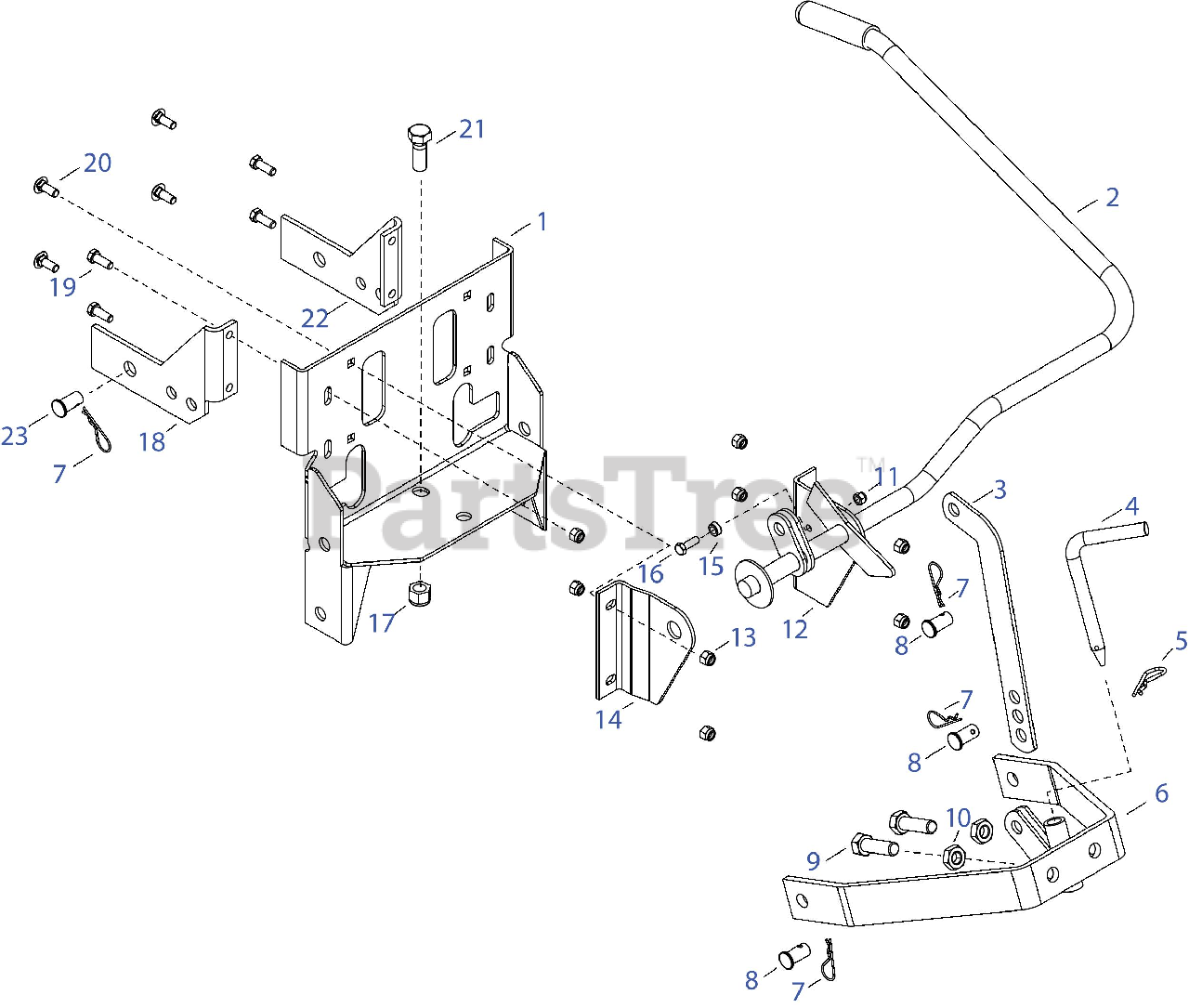

Replacement Parts Parts Diagram

  • Title

1

AF-68936

Sleeve Hitch Frame

$

$

Not available

2

Cub Cadet AF-64625

Lift Lever Assembly

$

$

Not available

3

Cub Cadet AF-24732

Lifting Link Plate

$28.99

$

Usually ships in 3-6 days

0

4

Cub Cadet AF-47950

Pin - Sleeve Hitch

$49.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 714-0117

Internal Cotter Pin

$4.49

$

In Stock, Qty 15

0

6

Cub Cadet AF-65404

Sleeve Hitch Assembly

$201.99

$

Usually ships in 3-6 days

0

7

Cub Cadet AF-43343

Hairpin Cotter 1/8

$13.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 711-0309A

Clevis Pin .62

$12.99

$

In Stock, Qty 5

0

9

Cub Cadet AF-47947

Bolt - Hex 5/8-11 X 2"

$6.49

$

Usually ships in 3-6 days

0

10

Cub Cadet AF-46471

Grip

$8.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 912-0429

Hex Nut Ins
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet AF-25714

Pivot Bracket - R.H.

$29.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 712-0130

Hex Nut Ins L-3/

$4.49

$

Usually ships in 3-6 days

0

14

Cub Cadet AF-25715

Pivot Bracket - L.H.

$36.99

$

Usually ships in 3-6 days

0

15

AF-23625

Bushing-Pivot

$

$

Not available

16

Cub Cadet 710-0376

Screw

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet AF-41615

Nut - Hex 5/8-11 Nylock

$5.99

$

Usually ships in 3-6 days

0

18

AF-28419

Sleeve Hitch Bracket LH

$

$

Not available

19

Cub Cadet 910-0253

Hex Screw 3/8-16
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet AF-43350

Bolt

$5.49

$

Usually ships in 3-6 days

0

21

Cub Cadet AF-47951

Bolt - Hex 5/8-11 X 1-3/4"

$8.99

$

Usually ships in 3-6 days

0

22

AF-28420

Sleeve Hitch Bracket RH

$

$

Not available

23

AF-HA3980

Clevis Pin 5/8 x 1 3/4

$

$

Not available

AF-45462

7/16-14 x 1 1/2 Bolt

Note: Required for Mounting Snow Cab or Sun Shade

$

$

Not available

Cub Cadet AF-43070

Flat Washer 3/8 Id

Note: Required for Mounting Snow Cab or Sun Shade

$8.99

$

Usually ships in 3-6 days

0
