19A40044 (19A40044OEM) - Cub Cadet Box Scraper General Assembly Parts Diagram

Box Scraper

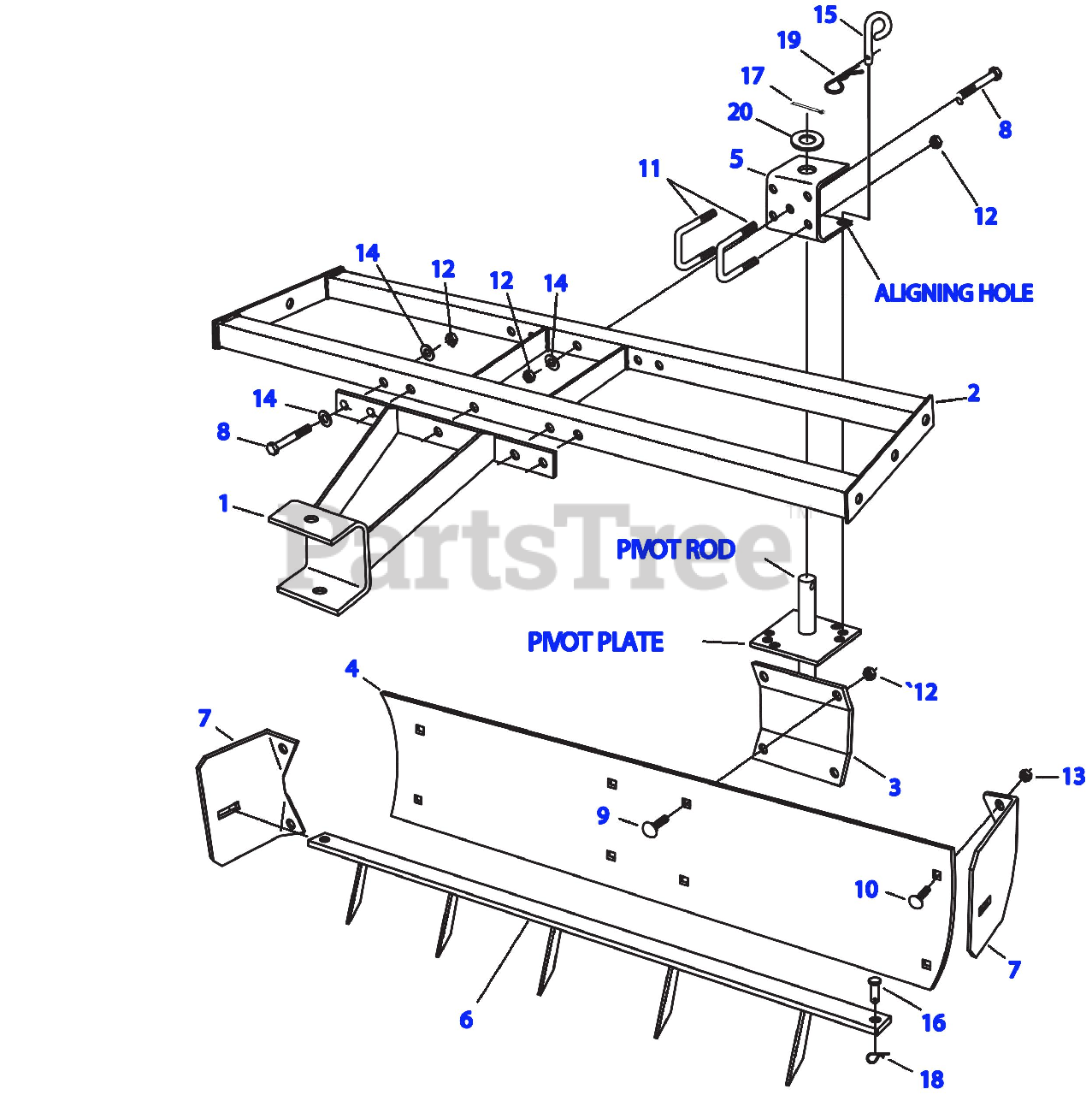

General Assembly Parts Diagram

  • Title

1

Cub Cadet AF-63656

Hitch Assembly

$63.99

$

Usually ships in 3-6 days

0

2

Cub Cadet AF-64279

Frame Assembly

$139.99

$

Usually ships in 3-6 days

0

3

Cub Cadet AF-63506

Pivot Bracket Assembly

$82.99

$

Usually ships in 3-6 days

0

4

Cub Cadet AF-24233

Blade

$125.99

$

Usually ships in 3-6 days

0

5

Cub Cadet AF-24231

Clevis Bracket

$30.99

$

Usually ships in 3-6 days

0

6

Cub Cadet AF-63507

Scarifier Assembly

$66.99

$

Usually ships in 3-6 days

0

7

Cub Cadet AF-24237

Box End Plate

$28.99

$

Usually ships in 3-6 days

0

8

Cub Cadet AF-43432

Hex Bolt 3/8-16 X 2-1/2

$

$

Not available

9

Cub Cadet AF-43350

Bolt

$5.49

$

Usually ships in 3-6 days

0

10

Cub Cadet AF-44326

Carriage Bolt 5/16-18 X 1
(Superseded to 710-0276)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet AF-46853

U Bolt 3/8-16

$4.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 712-0130

Hex Nut Ins L-3/8-16

$4.49

$

In Stock, only 4 left!

0

13

Cub Cadet 912-0429

Hex Nut Ins
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet AF-43070

Flat Washer 3/8 Id

$8.99

$

Usually ships in 3-6 days

0

15

Cub Cadet AF-43038

Pin-Pivot Lock

$17.99

$

Usually ships in 3-6 days

0

16

Cub Cadet AF-44044

Clevis Pin 3/8Diax.75Lg

$1.99

$

Usually ships in 3-6 days

0

17

Cub Cadet AF-46855

Cotter Pin 3/16 X 2

$1.49

$

Usually ships in 3-6 days

0

18

Cub Cadet AF-47134

Pin-Quick Attach

$7.49

$

In Stock, only 1 left!

0

19

Cub Cadet AF-43343

Hairpin Cotter 1/8

$13.99

$

Usually ships in 3-6 days

0

20

Cub Cadet AF-23336

Special Washer

$3.99

$

In Stock, only 1 left!

0
