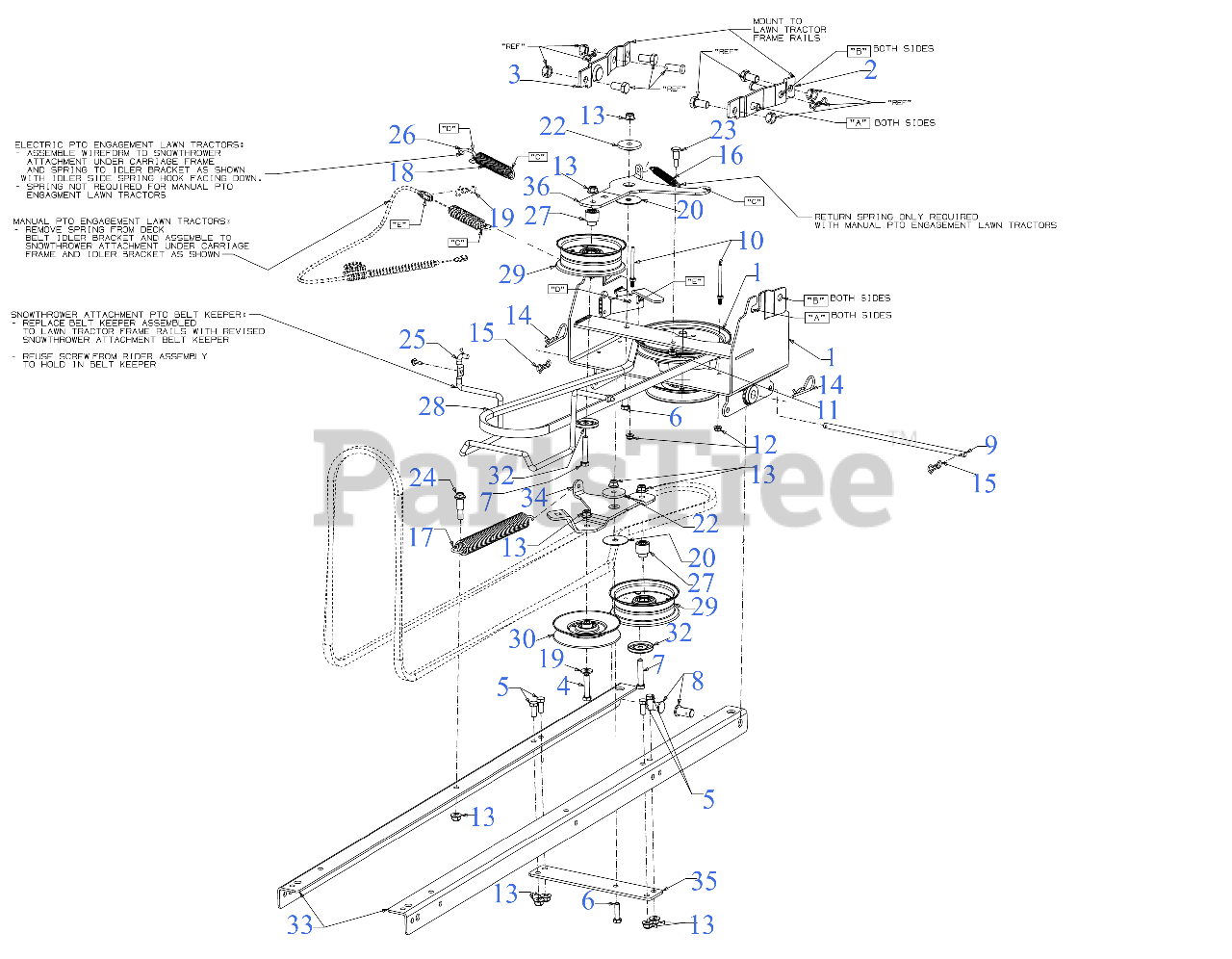

19A40045OEM - MTD 42" 3X Snow Thrower Attachment (2018) Drive Assembly Parts Diagram

42" 3X Snow Thrower Attachment

Drive Assembly Parts Diagram

  • Title

1

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$

$

Not available

2

MTD 684-05237

HANGER BRACKET (LH)

$35.99

$

Usually ships in 3-6 days

0

3

MTD 684-05238

HANGER BRACKET (RH)

$35.99

$

Usually ships in 3-6 days

0

4

MTD 710-0347

HEX SCREW 3/8-16 x 1.75 GR5

$4.99

$

In Stock, Qty 20+

0

5

MTD 710-3001

SCREW 3/8-16 x .880 GR5

$6.99

$

In Stock, Qty 13

0

6

MTD 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-3144

SCREW 3/8-16 x 2.0 GR5

$4.49

$

In Stock, Qty 20+

0

8

MTD 711-0309A

CLEVIS PIN .62

$11.99

$

In Stock, Qty 10

0

9

MTD 711-06303

BELT KEEPER ROD

$22.99

$

Usually ships in 3-6 days

0

10

MTD 711-06425

BELT KEEPER .25X2.64

$7.99

$

Usually ships in 3-6 days

0

11

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

14

MTD 714-0117

INTERNAL COTTER PIN

$3.99

$

In Stock, Qty 11

0

15

MTD 714-05005

BOW TIE COTTER PIN

$4.49

$

In Stock, Qty 20+

0

16

MTD 932-0470A

EXTENSION SPRING

$9.49

$

In Stock, Qty 20+

0

17

MTD 732-04927

EXTENSION SPRING

$21.99

$

In Stock, Qty 19

0

18

MTD 759-05087

SPRING KIT-IDLER

$17.99

$

In Stock, only 2 left!

0

19

MTD 736-0262

FLAT WASHER .385X.870X.090

$3.99

$

In Stock, Qty 20+

0

20

MTD 736-0518

THRUST WASHER

$9.99

$

In Stock, only 2 left!

0

22

MTD 738-04162C

SHOULDER SPACER

$12.99

$

In Stock, Qty 20+

0

23

MTD 738-0754

SHOULDER SCREW

$3.99

$

In Stock, only 2 left!

0

24

MTD 738-0966A

SHOULDER SCREW .50X.925

$4.49

$

In Stock, Qty 20+

0

25

MTD 747-06399

BELT KEEPER ROD

$87.99

$

Usually ships in 3-6 days

0

26

MTD 747-06513

EXTENSION SPRING HOOK

$11.99

$

Usually ships in 3-6 days

0

27

MTD 748-05037B

SHOULDER SPACER

$4.99

$

In Stock, Qty 20+

0

28

MTD 954-05061

V-BELT B SEC x 68.2
(Superseded to 954-05061A)

$78.99

$

Usually ships in 3-6 days

0

29

MTD 756-05034A

IDLER PULLEY 4.50" DIA

$42.99

$

In Stock, Qty 20+

0

30

MTD 956-3045A

IDLER PULLEY 5.06 DIA

$53.99

$

In Stock, Qty 20+

0

32

MTD 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+

0

33

MTD 790-00617-0637

UNDER CARRIAGE RAIL(POWDER BLACK)

$99.99

$

Usually ships in 3-6 days

0

34

MTD 790-00629-0637

IDLER BRACKET PIVOT (POWDER BLACK)

$54.99

$

Usually ships in 3-6 days

0

35

MTD 790-00630-0637

IDLER SUPPORT BRACKET (POWDER BLACK)

$32.99

$

Usually ships in 3-6 days

0

36

MTD 790-00634A

IDLER PIVOT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 790-00634A-0637

BRACKET-IDLER PIVOT - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

$38.99

$

Usually ships in 3-6 days

0

MTD 777X45500

LABEL-REFLECTOR

$19.99

$

Usually ships in 3-6 days

0
