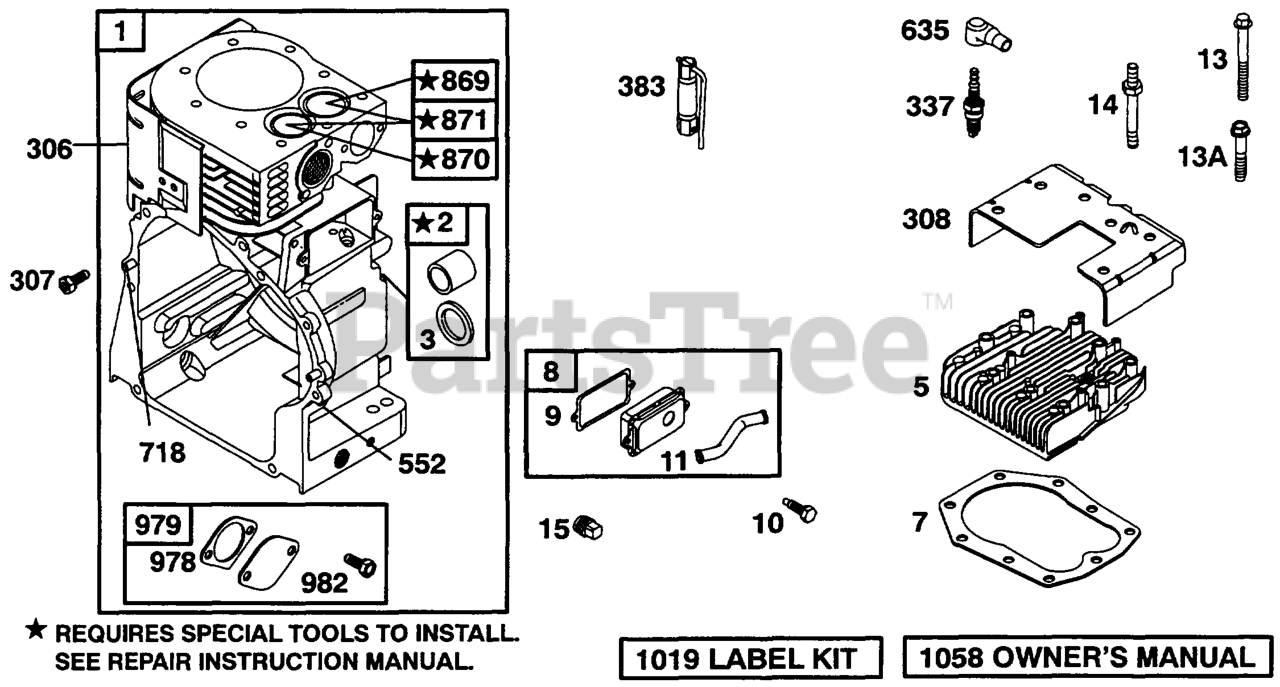

19A402-0699-XX - Briggs & Stratton Horizontal Engine Cylinder Parts Diagram

Horizontal Engine

Cylinder Parts Diagram

  • Title

1

Briggs & Stratton 495631

Cylinder Assembly

$

$

Not available

2

Briggs & Stratton 495657

Kit-Bushing/seal (Magneto Side)
(Superseded to 698340)

$22.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 391086

Seal-Oil (Magneto Side)
(Superseded to 391086S)

$6.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 691159

Head-Cylinder

$95.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 272163

Gasket-Cylinder Head
(Superseded to 272163S)

$7.99

$

In Stock, Qty 11

0

8

Briggs & Stratton 498038

Breather Assembly

$60.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 27803

Gasket-Breather
(Superseded to 27803S)

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 691666

Screw (Breather Assembly)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 280819

Tube-Breather
(Superseded to 691907)

$24.99

$

In Stock, only 1 left!

0

13A

Briggs & Stratton 94622

Screw (3" Long)
(Superseded to 690904)

$11.99

$

In Stock, Qty 6

0

13

Briggs & Stratton 94565

Screw (3 9/16" Long)
(Superseded to 592244)

$3.49

$

In Stock, Qty 13

0

14

Briggs & Stratton 94926

Stud (Cylinder Head)
(Superseded to 691690)

$

$

Not available

15

Briggs & Stratton 94239

Plug-Pipe
(Superseded to 690946)

$5.99

$

In Stock, Qty 17

0

306

Briggs & Stratton 496797

Shield-Cylinder

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 691003

SCREW

$3.49

$

In Stock, only 2 left!

0

308

Briggs & Stratton 691212

Cover-Cylinder Head

$12.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 496018

Plug-Spark (Resistor)
(Superseded to 496018S)

$4.49

$

In Stock, Qty 20+

0

383

Briggs & Stratton 89838

Wrench-Spark Plug
(Superseded to 89838S)

$6.49

$

In Stock, Qty 5

0

552

Briggs & Stratton 491986

Bushing-Governor

$

$

Not available

635

Briggs & Stratton 66538

Boot-Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 15

0

718

Briggs & Stratton 230192

Pin-Locating
(Superseded to 690959)

$6.99

$

Usually ships in 2-12 days

0

869

Briggs & Stratton 211661

Seat-Valve (Intake)
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

870

Briggs & Stratton 211661

Seat-Valve (Exhaust)
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 231218

Bushing-Valve Guide (Intake)

$14.99

$

In Stock, only 2 left!

0

871

Briggs & Stratton 261961

Bushing-Valve Guide (Exhaust)

$14.99

$

Usually ships in 2-12 days

0

978

Briggs & Stratton 273326

Gasket-Oil Gard
(Superseded to 273326S)

$7.49

$

Usually ships in 2-12 days

0

979

Briggs & Stratton 691382

Cover-Oil Gard

$4.99

$

Usually ships in 2-12 days

0

982

Briggs & Stratton 690351

SCREW

$3.99

$

In Stock, only 2 left!

0

1019

Briggs & Stratton 491181

Kit-Label

$40.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 272848

Owner's Manual (Non Emission Engines)

$

$

Not available

1058

Briggs & Stratton 274268

Owner's Manual (Emission Engines)

$

$

Not available
