19A70001 (19A70001100) - Cub Cadet Twin Rear Bagger

Twin Rear Bagger

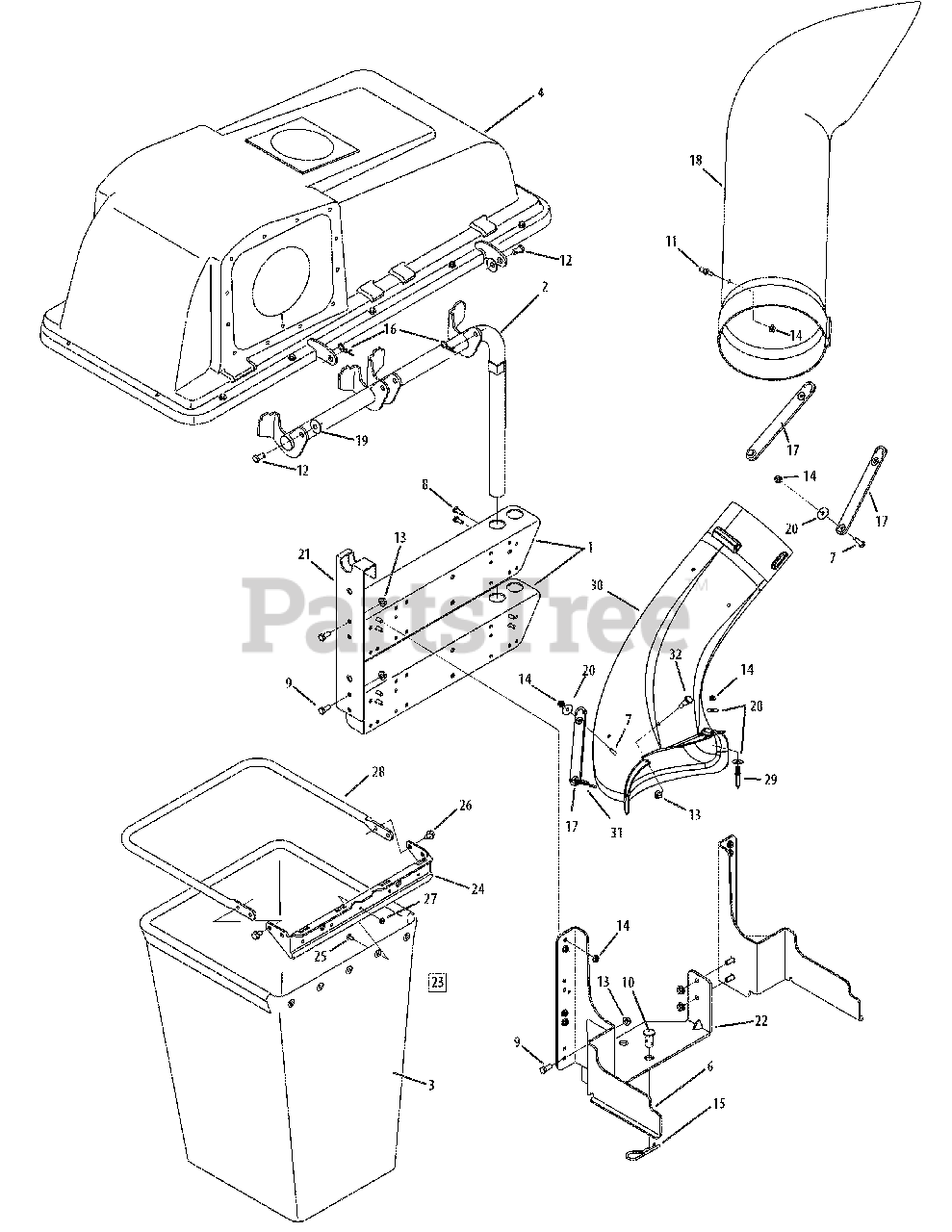

19A70001 (19A70001100) - Cub Cadet Twin Rear Bagger > Parts Diagrams (2) > General Assembly #1

  • Title
16587D

1

Bracket Support

Part# 16587D

OEM Warranty Repair Part for Cub Cadet

Variations

POWDER BLACK (0637)

BRACKET-MOUNTING

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $53.68

16592

2

Support Tube Assembly

Part# 16592

OEM Warranty Repair Part for Cub Cadet

Variations

POWDER BLACK (0637)

TUBE ASSY-SUPPORT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $126.98

764-0221

3

Catcher Bag

Part# 764-0221 (Superseded to 964-0221)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $50.08

664-04017

4

Grass catcher Cover Assembly

Part# 664-04017

OEM Warranty Repair Part for Cub Cadet

Not available

683-04348

5

Mounting Bracket - RH

Part# 683-04348

OEM Warranty Repair Part for Cub Cadet

Variations

POWDER BLACK (0637)

MOUNTING BRACKET - RH(POWDER BLACK)

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Cub Cadet

Not available

683-04350

6

Mounting Bracket - LH

Part# 683-04350

OEM Warranty Repair Part for Cub Cadet

Variations

POWDER BLACK (0637)

BRACKET ASSY-FAST

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $70.92

710-0597

7

Screw 1/4-20 x 1"

Part# 710-0597

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.69

710-0751

8

Hex Screw 1/4-20 x0.620

Part# 710-0751

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.66

710-3008

9

Hex Screw 5/16-18 x 0.75"

Part# 710-3008

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.76

711-0309A

10

Clevis Pin

Part# 711-0309A

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $8.32

711-04069

11

Grass catcher Pin

Part# 711-04069 (Superseded to 911-04069)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.75

711-1421

12

Clevis Pin

Part# 711-1421

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $4.81

712-04063

13

Flange Lock Nut, 5/16-18

Part# 712-04063

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.75

712-04064

14

Flange Lock Nut, 1/4-20

Part# 712-04064

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.67

714-0117

15

Hairpin Clip

Part# 714-0117

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.82

714-0145

16

Click Pin

Part# 714-0145 (Superseded to 914-0145)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $3.24

723-04008A

17

Chute Strap - 6"

Part# 723-04008A

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $6.52

731-0899E

18

Catcher Tube

Part# 731-0899E

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $81.47

736-0331

19

Bell Washer

Part# 736-0331

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.57

736-3092

20

Flat Washer

Part# 736-3092

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.71

783-0601

21

Catcher Support Bracket

Part# 783-0601

OEM Warranty Repair Part for Cub Cadet

Variations

POWDER BLACK (0637)

BRACKET-SUPPORT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $24.05

783-0765

22

Cross Support Bracket

Part# 783-0765

OEM Warranty Repair Part for Cub Cadet

Variations

POWDER BLACK (0637)

BRACKET SUPT CROSS

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $52.89

N/A

23

Grass Bag Assy.

Part# N/A

Note: Order Components

OEM Warranty Repair Part for Cub Cadet

Currently unavailable

16591A

24

Bag Hanger Bracket

Part# 16591A

OEM Warranty Repair Part for Cub Cadet

Variations

POWDER BLACK (0637)

BRACKET-HANGER BAG

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $42.66

710-0473

25

Machine Screw, #10-24 x .5

Part# 710-0473

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.85

710-0604A

26

Self-Tapping Screw 5/16-18

Part# 710-0604A

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.92

712-0272

27

Hex Sems Nut, #10-24

Part# 712-0272

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.63

749-0701A

28

Grass Bag Frame

Part# 749-0701A

OEM Warranty Repair Part for Cub Cadet

Variations

POWDER BLACK (0637)

FRAME CATCHER BAG

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $42.44

711-05008

29

Belt Pin Guard, 1/4 x 1.43

Part# 711-05008 (Superseded to 711-05049)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $5.60

731-06099

30

Chute Elbow, 42" Timing Deck

Part# 731-06099 (Superseded to 731-06099B)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $74.45

732-04510

31

Spring Hook

Part# 732-04510 (Superseded to 732-04510A)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $3.10

738-0754

32

Shoulder Screw, .437 x .54

Part# 738-0754

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.79
