19A70001 (19A70001100) - Cub Cadet Twin Rear Bagger

Twin Rear Bagger

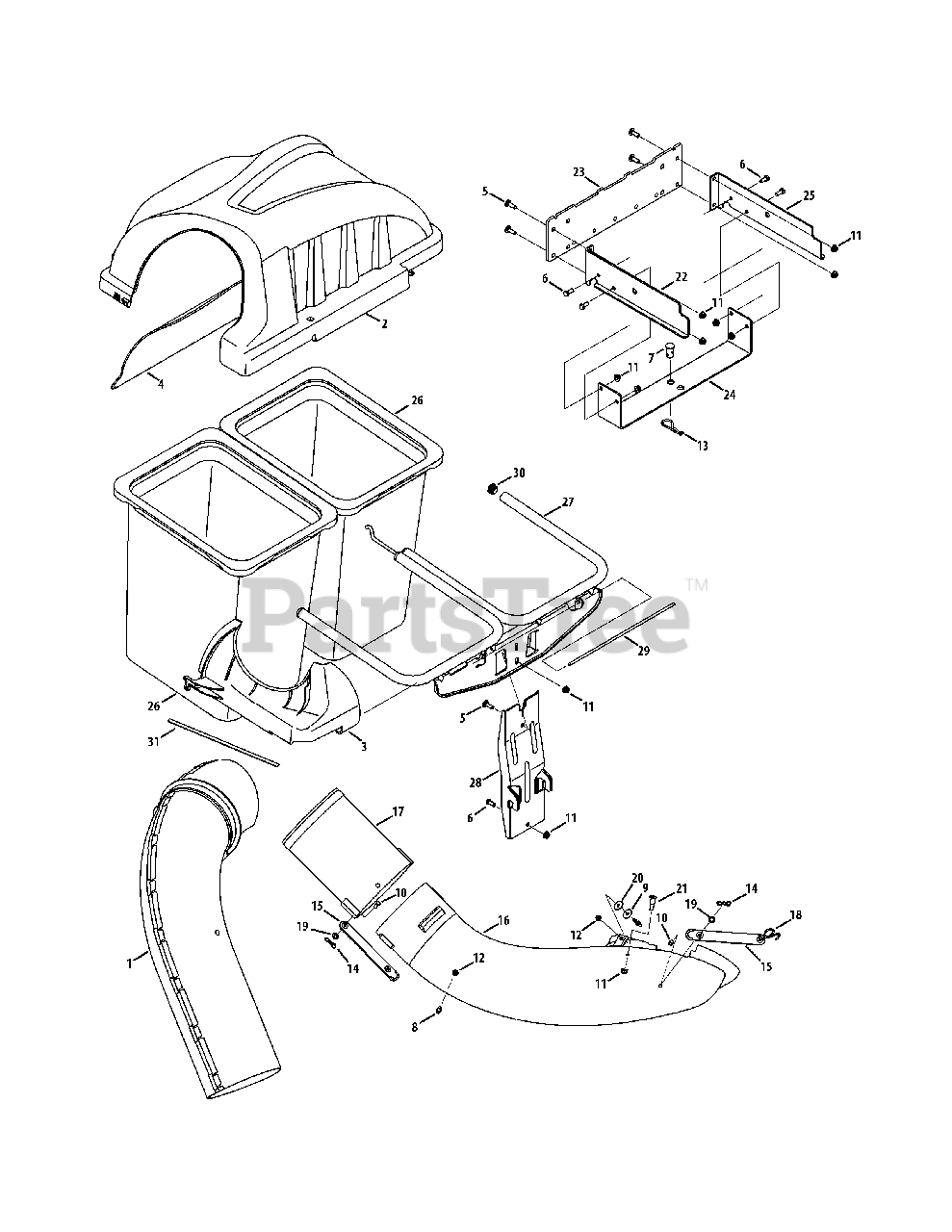

19A70001 (19A70001100) - Cub Cadet Twin Rear Bagger > Parts Diagrams (2) > General Assembly #2

  • Title
931-04291

1

Upper Chute Assembly

Part# 931-04291 (Superseded to 931-04291A)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $91.19

931-04292

2

Double Bagger Cover Assembly

Part# 931-04292

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $110.11

731-06497

3

Upper Chute Support

Part# 731-06497

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $23.66

731-06504

4

Bagger Cover Screen

Part# 731-06504

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $11.48

710-0276

5

Carriage Screw, 5/16-18 x 1.00"

Part# 710-0276

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.71

710-3008

6

Hex Head Screw, 5/16-18 x .75"

Part# 710-3008

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.76

711-0309A

7

Clevis Pin, .62" Dia.

Part# 711-0309A

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $8.32

911-04069

8

Grass-catcher Pin, 1/4-20

Part# 911-04069

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.75

711-05049

9

Attachment Pin, 1/4 x 0.66 Lg.

Part# 711-05049

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $5.60

711-05063

10

Clevis Pin, 5/16 x .75 Lg.

Part# 711-05063

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.39

712-04063

11

Flange Lock Nut, 5/16-18

Part# 712-04063

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.75

912-3027

12

Flange Lock Nut, 1/4-20

Part# 912-3027

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.82

714-0117

13

Internal Cotter Pin, .148 x 3.00

Part# 714-0117

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.82

714-04040

14

Bow-Tie Cotter Pin, 72

Part# 714-04040

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $1.02

723-04008A

15

Chute Strap, 6.00 Lg.

Part# 723-04008A

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $6.52

731-06099A

16

Bagger Discharge Chute, Elbow

Part# 731-06099A (Superseded to 731-06099B)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $74.45

731-06610

17

Bagger Chute Adapter, 7 In.

Part# 731-06610

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $30.53

732-04510A

18

Torsion Spring Hook

Part# 732-04510A

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $3.10

736-0204

19

Flat Washer, .344 x .62 x .033

Part# 736-0204

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.84

736-0176

20

Flat Washer, .265 x 1.0 x .030

Part# 736-0176 (Superseded to 936-0176)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.94

738-0754

21

Shoulder Screw, .437 x .54

Part# 738-0754

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.79

783-06156-0637

22

Mounting Bracket, RH

Part# 783-06156-0637

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $52.86

783-06168-0637

23

Universal Mounting Bracket

Part# 783-06168-0637

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $91.58

783-06230-0637

24

Universal Bracket Support, i-Series

Part# 783-06230-0637

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $71.03

783-06231-0637

25

Mounting Bracket, LH

Part# 783-06231-0637

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $52.86

964-04090A

26

Grass-bag Assembly

Part# 964-04090A (Superseded to 964-05104)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $65.03

683-04461A

27

Double Bag Support Assembly

Part# 683-04461A

OEM Warranty Repair Part for Cub Cadet

Variations

POWDER BLACK (0637)

SUPPORT ASM-DOUBLE BAG

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $135.36

683-04519

28

Vertical Support Bracket

Part# 683-04519

OEM Warranty Repair Part for Cub Cadet

Variations

POWDER BLACK (0637)

USE 683-04519B-0637 BRACKET-V

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $93.26

711-04988

29

Cover Hinge Pin

Part# 711-04988

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $8.21

735-0246A

30

End Plug

Part# 735-0246A

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $3.71

721-04388

31

Foam Strip

Part# 721-04388

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.66
