19A70003 (19A70003000) - Cub Cadet 42" Lawn Striper att General Assembly Parts Diagram

42" Lawn Striper

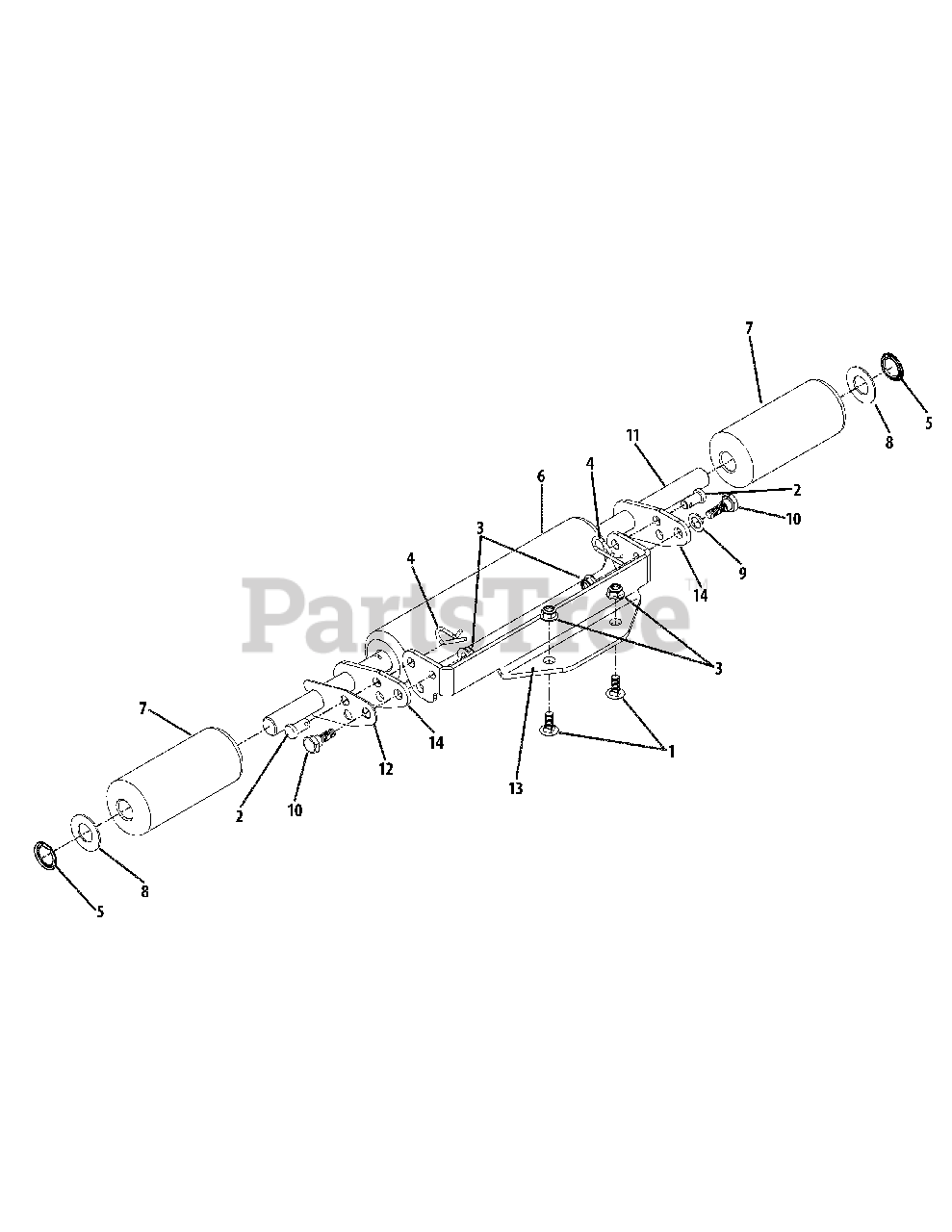

General Assembly Parts Diagram

  • Title

1

Cub Cadet 710-0451

Carriage Bolt, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 711-1421

Clevis Pin, 3/8 x .750

$7.49

$

In Stock, only 1 left!

0

3

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 714-0149B

Cotter Pin

$4.99

$

In Stock, only 2 left!

0

5

Cub Cadet 726-04035

Push Nut, 3/4

$7.49

$

In Stock, Qty 20+

0

6

Cub Cadet 731-0335

Deck Roller

$76.99

$

In Stock, only 4 left!

0

7

Cub Cadet 731-06365

Deck Roller, 2.25 x 5.25

$

$

Not available

8

Cub Cadet 736-0188

Flat Washer, .76 x 1.49 x .06

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 736-3024

Flat Washer, .469 x .750 x .06

$3.99

$

In Stock, only 2 left!

0

10

Cub Cadet 738-0296

Shoulder Screw, .437 x .268 x 5/16-18

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 747-04915

Roller Rod, .75 x 22.875

$

$

Not available

12

Cub Cadet 783-05916

Anti-Rot Rod Plate

Variations

783-05916-0637

Cub Cadet 783-05916-0637

PLATE-ANTI-ROT ROD(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

13

Cub Cadet 783-05918

Roller Bracket
(Superseded to 783-05918-0637)

Variations

783-05918-0637

Cub Cadet 783-05918-0637

Roller Bracket, 42" - POWDER BLACK (0637)

$

$

Not available

$

$

14

Cub Cadet 783-05923

Roller Plate Adjustment
(Superseded to 783-05923-0637)

Variations

783-05923-0637

Cub Cadet 783-05923-0637

PLATE-ADJUST ROLLE - POWDER BLACK (0637)

$

$

Not available

$

$
