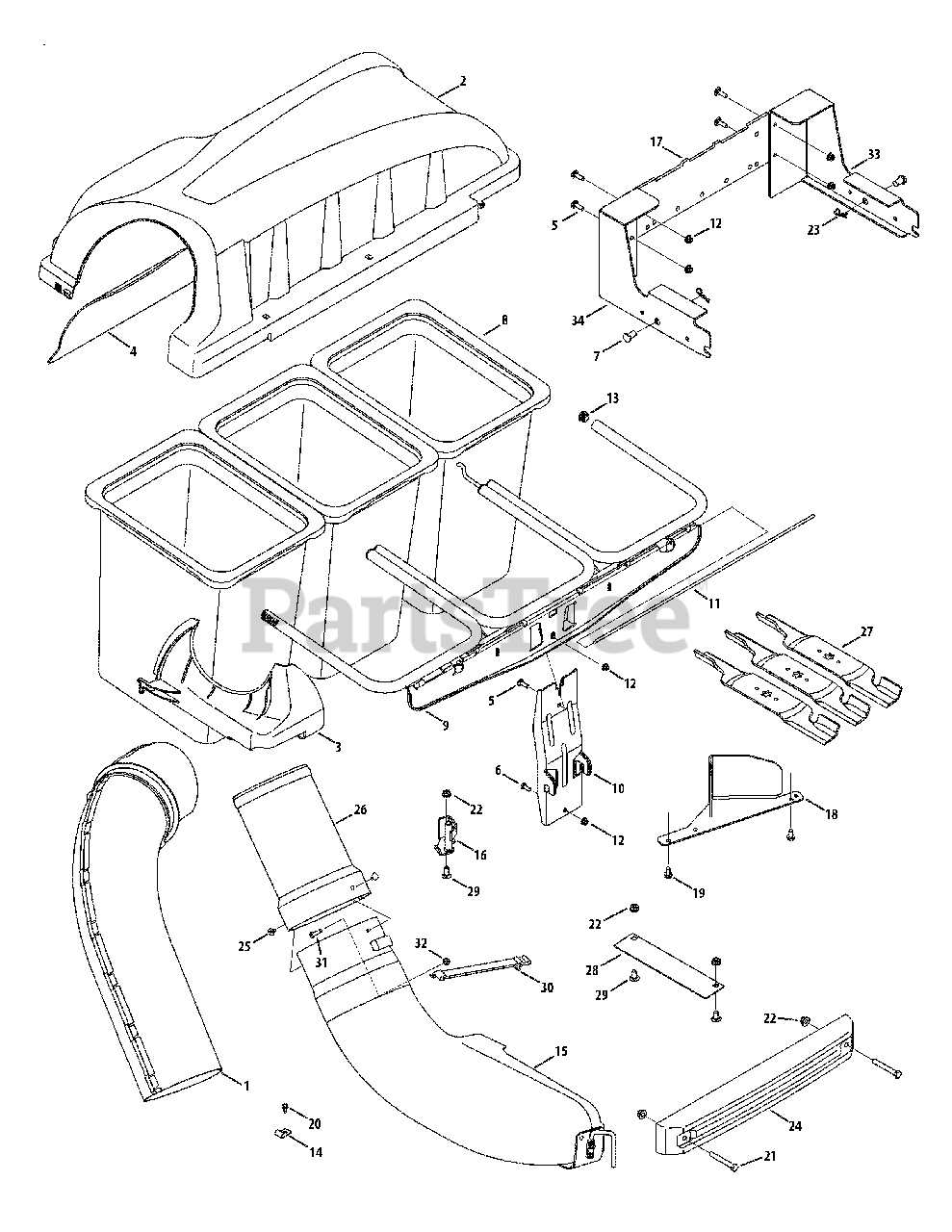

19A700080OEM - Troy-Bilt Triple Rear Bagger (2009) General Assembly Parts Diagram

Triple Rear Bagger

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 631-04295P

Upper Chute Assembly
(Superseded to 931-04295B)

$154.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 631-04298P

Triple Bagger Cover Assembly

$224.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 731-06497

Upper Chute Support

$38.99

$

In Stock, only 3 left!

0

4

Troy-Bilt 731-06504

Bagger Cover Screen

$18.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 710-0276

Carriage Screw, 5/16-18 x 1.00"

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-3008

Hex Head Screw, 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 911-0332

Clevis Pin, .50" Dia. x .78 Lg.

$17.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 964-04096

Grass-bag Assembly
(Superseded to 964-05104)

$101.99

$

In Stock, Qty 14

0

9

Troy-Bilt 683-04498

Triple Bag Support Assembly
(Superseded to 683-04498B-0637)

Variations

683-04498-0637

Troy-Bilt 683-04498-0637

SUPPORT ASM-TRIPLE - POWDER BLACK (0637)

$233.99

$

Usually ships in 3-6 days

0

$233.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 683-04519

Vertical Support Bracket
(Superseded to 683-04519B-0637)

Variations

683-04519-0637

Troy-Bilt 683-04519-0637

Vertical Support Bracket - POWDER BLACK (0637)

$151.99

$

Usually ships in 3-6 days

0

$151.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 711-05079

Cover Hinge Pin

$24.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 735-0246A

End Plug

$6.49

$

In Stock, Qty 12

0

14

Troy-Bilt 96606

Retainer Hook

$7.99

$

In Stock, only 2 left!

0

15

Troy-Bilt 631-04300

Discharge Chute Elbow
(Superseded to 631-04300C)

$300.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 683-0617A-0637

Chute Stop-Bracket

$68.99

$

In Stock, only 2 left!

0

17

Troy-Bilt 783-06168-0637

Universal Mounting Bracket

$149.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 703-06018A-0637

Deck Baffle

$97.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 710-04484

Tap Screw, 5/16 - 18 x .750

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 710-0599

Tap Screw, 1/4 - 20 x .500

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 710-3022

Hex Head Screw, 3/8 - 16 x 2.75

$4.99

$

In Stock, only 3 left!

0

22

Troy-Bilt 712-04065

Flange Lock Nut, 3/8 - 16

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 914-04023

Cotter Pin, .080 x 1.5625 Internal
(Superseded to 714-04023)

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 719-04271A

RZT Bagger Weight

$267.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 726-3046

Ratchet Clip, .250

$4.49

$

In Stock, Qty 14

0

26

Troy-Bilt 731-06611

Bagger Chute Adapter, 7 In.

$49.99

$

In Stock, only 1 left!

0

27

Troy-Bilt 942-0679

Blade, 18.50 Lg., High Lift
(Superseded to 942-0677B)

$32.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 783-06418-0637

Chute Discharge Plate

$19.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 710-3168

Carriage Bolt, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 723-0476

Chute Strap

$35.99

$

In Stock, only 2 left!

0

31

Troy-Bilt 710-3015

Hex Head Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 712-04064

Flange Lock Nut, 1/4 - 20

$4.49

$

In Stock, Qty 20+

0

33

N/A

RZT Mounting Bracket, LH

Note: Order 689-00111

$

$

Not available

34

N/A

RZT Mounting Bracket, RH

Note: Order 689-00111

$

$

Not available

Troy-Bilt 689-00111

RZT Mounting Bracket Assembly
(Superseded to 689-00204A)

Note: (Incl. Ref No. 17, 33 & 34)

$202.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-06158

Discharge Chute Plate Kit

Note: Not Shown (Incl. Extension Plate & Molding Strip)

$

$

Not available
