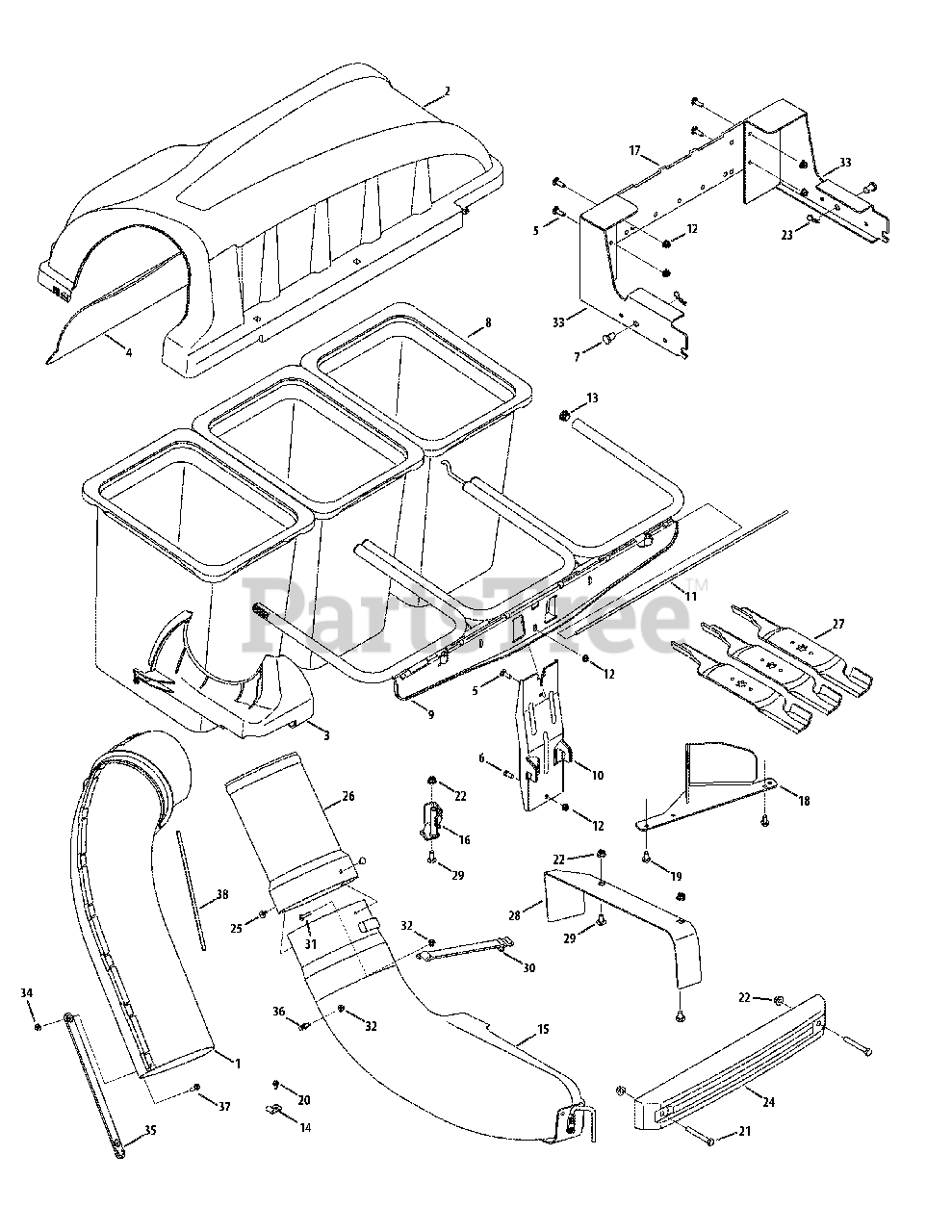

19A70008OEM - White Outdoor Triple Bag Grass Collector (2011) > Parts Diagrams (1) > General Assembly

  • Title
631-04295A

1

Upper Chute Assembly

Part# 631-04295A (Superseded to 931-04295B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $94.97

631-04298P

2

Triple Bagger Cover Assembly

Part# 631-04298P

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $155.00

731-06497

3

Upper Chute Support

Part# 731-06497

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $23.66

731-06504

4

Bagger Cover Screen

Part# 731-06504

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $11.48

710-0276

5

Carriage Screw, 5/16-18 x 1.00"

Part# 710-0276

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.71

710-3008

6

Hex Head Screw, 5/16-18 x .75"

Part# 710-3008

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

911-0332

7

Clevis Pin, .50" Dia. x .78 Lg.

Part# 911-0332

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $10.99

964-04096

8

Grass-bag Assembly

Part# 964-04096

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $65.03

683-04498-0637

9

Triple Bag Support Assembly

Part# 683-04498-0637 (Superseded to 683-04498A-0637)

OEM Warranty Repair Part for White Outdoor

Not available

683-04519-0637

10

Vertical Support Bracket

Part# 683-04519-0637 (Superseded to 683-04519B-0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $93.26

711-05079

11

Cover Hinge Pin

Part# 711-05079

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $14.92

712-04063

12

Flange Lock Nut, 5/16-18

Part# 712-04063

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.75

735-0246A

13

End Plug

Part# 735-0246A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.71

96606

14

Retainer Hook

Part# 96606

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.92

631-04300A

15

Discharge Chute Elbow

Part# 631-04300A

OEM Warranty Repair Part for White Outdoor

Not available

683-0617A-0637

16

Chute Stop-Bracket

Part# 683-0617A-0637

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $44.16

783-06168-0637

17

Universal Mounting Bracket

Part# 783-06168-0637

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $91.58

703-06018A-0637

18

Deck Baffle

Part# 703-06018A-0637

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $59.90

710-04484

19

Tap Screw, 5/16 - 18 x .750

Part# 710-04484

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.47

710-0599

20

Tap Screw, 1/4 - 20 x .500

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

710-3022

21

Hex Head Screw, 3/8 - 16 x 2.75

Part# 710-3022

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.03

712-04065

22

Flange Lock Nut, 3/8 - 16

Part# 712-04065

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.71

914-04023

23

Cotter Pin, .080 x 1.5625 Internal

Part# 914-04023

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.85

719-04271A

24

RZT Bagger Weight

Part# 719-04271A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $188.76

726-3046

25

Ratchet Clip, .250

Part# 726-3046

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.73

731-06611

26

Bagger Chute Adapter, 7 In.

Part# 731-06611

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $30.53

942-0679

27

Blade, 18.50 Lg., High Lift

Part# 942-0679

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $33.74

783-06694-0637

28

Chute Discharge Plate

Part# 783-06694-0637 (Superseded to 783-06694A-0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $28.58

710-3168

29

Carriage Bolt, 3/8-16 x 1.00

Part# 710-3168

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.65

723-0476

30

Chute Strap

Part# 723-0476

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $22.66

710-3015

31

Hex Head Screw, 1/4-20 x .75

Part# 710-3015

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.68

712-04064

32

Flange Lock Nut, 1/4 - 20

Part# 712-04064

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.67

689-00111

33

RZT Mounting Assembly (Incl. Ref No. 17 & 33)

Part# 689-00111 (Superseded to 689-00204A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $124.58

912-3027

34

Flange Lock Nut, 1/4-20

Part# 912-3027

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.82

723-04009A

35

Chute Strap

Part# 723-04009A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.75

911-04069

36

Grass-catcher Pin

Part# 911-04069

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.75

710-0924

37

Machine Screw, 1/4-20

Part# 710-0924

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

721-04388

38

Adhesive Strip

Part# 721-04388

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.66
