19A70009OEM - MTD Two-Stage Snow Thrower Assembly (2009) Auger Housing & Discharge Chute Parts Diagram

Two-Stage Snow Thrower Assembly

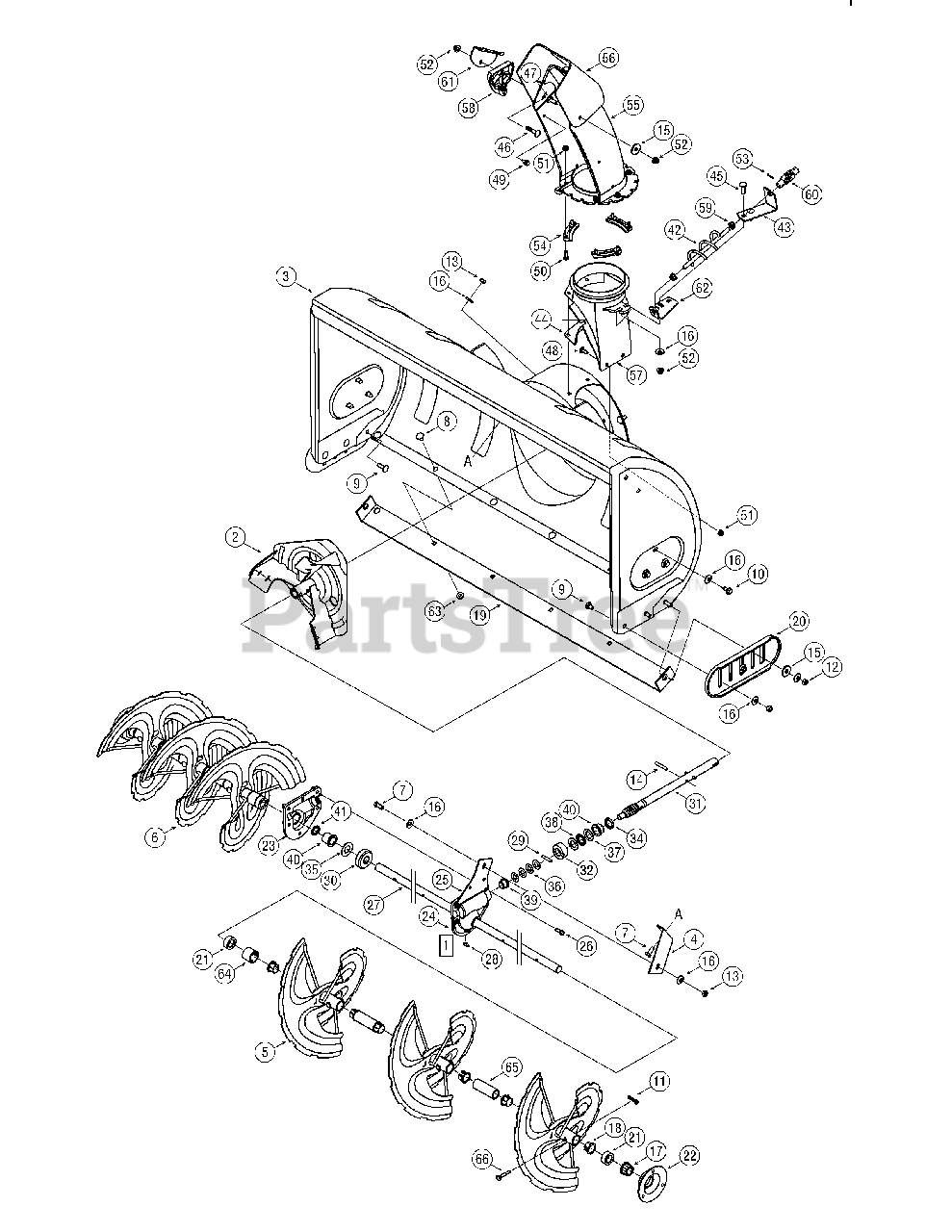

Auger Housing & Discharge Chute Parts Diagram

  • Title
1

MTD Part# 918-04315

Auger Gear Box (Incl. Ref. 23-41)
Usually ships in 5 to 10 days

$

$365.05

0

2

MTD Part# 684-0158-0637

Impeller Assembly, 12"
Usually ships in 5 to 10 days

$

$66.11

0

3

MTD Part# 684-0148-0637

Housing Assembly
Usually ships in 5 to 10 days

$

$623.42

0

4

MTD Part# 703-2734-0637

Housing Brace Bracket
Usually ships in 1 day

$

$7.90

0

5

MTD Part# 684-04163-0637

LH Spiral Auger
Usually ships same day

Not available

$

$

6

MTD Part# 684-04164-0637

RH Spiral Auger
(Superseded to 684-04164A-0637)
Usually ships in 5 to 10 days

$

$82.32

0

7

MTD Part# 710-0157

Hex Cap Screw, 5/16-24 x .75
Usually ships in 1 day

$

$3.09

0

8

MTD Part# 710-0260A

Carriage Bolt, 5/16-18 x .62
Usually ships in 1 day

$

$2.98

0

9

MTD Part# 710-0276

Splined Carriage Screw
Usually ships in 1 day

$

$2.92

0

10

MTD Part# 710-0726

Self Tapping Screw
Usually ships in 1 day

$

$3.04

0

11

MTD Part# 714-04040

Bow-Tie Cotter Pin
Usually ships in 1 day

$

$1.02

0

12

MTD Part# 912-3010

Hex Nut, 5/16-18
Usually ships in 1 day

$

$3.11

0

13

MTD Part# 912-3057

Hex Nut, 5/16-24
Usually ships in 1 day

$

$4.76

0

14

MTD Part# 915-0114

Spirol Pin, 1/4 x 1-1/2
Usually ships in 1 day

$

$6.89

0

15

MTD Part# 936-0231

Flat Washer, .344 x 1.125 x .12
Usually ships in 5 to 10 days

$

$3.23

0

16

MTD Part# 736-0242

Bell Washer, .340 x .872
Usually ships in 1 day

$

$3.00

0

17

MTD Part# 941-0245

Hex Flange Bearing, .75 ID
Usually ships in 1 day

$

$7.20

0

18

MTD Part# 741-0493A

Flange Bushing, .80 x .91
(Superseded to 741-0493C)
Usually ships in 1 day

$

$3.10

0

19

MTD Part# 784-0396A-0637

Skid Plate Bracket, 42"
(Superseded to 784-0396C-0637)
Usually ships in 1 day

$

$47.56

0

20
Usually ships in 1 day

$

$20.53

0

21

MTD Part# 711-0469

Spacer, .75 x .125 x .5
Usually ships in 1 day

$

$5.67

0

22

MTD Part# 784-5618A-0637

Hex Bearing Housing, 1.0
Usually ships in 1 day

$

$9.19

0

23

MTD Part# 918-0123A

RH Reducer Housing
Usually ships in 1 day

$

$36.90

0

24

MTD Part# 918-0418A

LH Reducer Housing
Usually ships in 1 day

$

$43.87

0

25

MTD Part# 703-2733A-0637

Housing Brace Plate
Usually ships in 5 to 10 days

$

$14.65

0

26

MTD Part# 710-0642

Self Tapping Screw, 1/4-20 x .75
Usually ships in 1 day

$

$3.21

0

27

MTD Part# 711-04468

Spiral Axle, 41.5"
Usually ships in 5 to 10 days

$

$143.44

0

28

MTD Part# 914-0161

Hi-Pro Key, 3/16 x 5/8
Usually ships in 1 day

$

$3.07

0

29

MTD Part# 915-0143

Spring Spirol Pin, .25 x 1.25
Usually ships in 5 to 10 days

$

$3.23

0

30

MTD Part# 917-0528A

Worm Gear, 20-tooth
(Superseded to 917-04861)
Usually ships in 1 day

$

$30.32

0

31

MTD Part# 717-3320

Worm Shaft
Usually ships in 1 day

$

$95.57

0

32

MTD Part# 718-0513

Thrust Collar
Usually ships in 1 day

$

$9.26

0

34

MTD Part# 721-0327

Grease Seal
Usually ships in 5 to 10 days

$

$4.94

0

35

MTD Part# 936-0351

Flat Washer, .76 x 1.5 x .030
Usually ships in 5 to 10 days

$

$3.12

0

36

MTD Part# 936-0369

Flat Washer, .508 x 1.0 x .020
Usually ships in 5 to 10 days

$

$3.11

0

37

MTD Part# 736-0617

Thrust Washer, .75 x 1.25 x .0615
Usually ships in 1 day

$

$8.07

0

38

MTD Part# IH-324105-R92

Thrust Bearing, .75 x 1.25 x .078
Usually ships in 1 day

$

$7.97

0

39

MTD Part# 948-0108

Flange Bearing, .503 x .75
Usually ships in 1 day

$

$6.13

0

40

MTD Part# 741-0700

Flange Bearing, .75 x 1.0 x .59
Usually ships in 1 day

$

$7.97

0

41

MTD Part# 921-0179

Grease Seal
Usually ships same day

Not available

$

$

42

MTD Part# 684-0061

Chute Crank Assembly
(Superseded to 684-0061A)
Usually ships in 1 day

$

$29.31

0

43

MTD Part# 703-2735A-0637

Chute Crank Bracket
Usually ships in 5 to 10 days

$

$13.76

0

44

MTD Part# 705-5226-0637

Chute Reinforcer
Usually ships in 1 day

$

$7.50

0

45

MTD Part# 710-0276

Splined Carriage Screw
Usually ships in 1 day

$

$2.92

0

46

MTD Part# 710-0262

Carriage Bolt, 5/16-18 x 1.5
Usually ships in 1 day

$

$2.91

0

47

MTD Part# 710-04071

Carriage Screw, 5/16-18 x 1.0
Usually ships in 1 day

$

$3.16

0

48

MTD Part# 710-0703

Screw, 1/4-20 x .75
Usually ships in 1 day

$

$2.94

0

49

MTD Part# 710-0896

Hex Index Washer Screw
Usually ships in 1 day

$

$3.06

0

50

MTD Part# 710-3015

Hex Cap Screw, 1/4-20 x .75
Usually ships in 1 day

$

$2.90

0

51

MTD Part# 712-04064

Nylon Hex Lock Nut, 1/4-20
Usually ships in 1 day

$

$2.88

0

52

MTD Part# 712-04063

Nylon Hex Lock Nut, 5/16-18
Usually ships in 1 day

$

$2.83

0

53

MTD Part# 715-0129

Spirol Pin, .125 x .82
Usually ships in 5 to 10 days

$

$3.31

0

54

MTD Part# 731-0851A

Chute Flange Keeper
Usually ships in 1 day

$

$3.09

0

55

MTD Part# 731-1300E

Lower Chute
Usually ships in 1 day

$

$41.76

0

56

MTD Part# 731-04427A

Upper Chute
Usually ships in 5 to 10 days

$

$13.42

0

57

MTD Part# 731-1379D

Adapter Chute
Usually ships in 1 day

$

$46.27

0

58

MTD Part# 731-1313C

Chute Tilt Cable Guide
Usually ships in 1 day

$

$8.39

0

59

MTD Part# 941-0475

Plastic Bushing
Usually ships in 1 day

$

$2.96

0

60

MTD Part# 984-5149

Joint Block Assembly
(Superseded to 684-04350)
Usually ships in 1 day

$

$20.42

0

61

MTD Part# 784-5594-0637

Cable Bracket
Usually ships in 1 day

$

$8.15

0

62

MTD Part# 784-5647-0637

Chute Crank Bracket
Usually ships in 5 to 10 days

$

$10.03

0

63

MTD Part# 712-3004A

Flange Lock Nut, 5/16-18
Usually ships in 1 day

$

$2.77

0

64

MTD Part# 731-04870

Spacer 1.25 x .75 x 1.00
Usually ships in 1 day

$

$3.26

0

65

MTD Part# 731-1086A

Sleeve .758 x 1.00 x 2.70
Usually ships in 5 to 10 days

$

$7.66

0

66

MTD Part# 738-04124A

Shear Pin, .25 x 1.50
Usually ships in 1 day

$

$1.24

0

MTD Part# 721-0325

Grease Plug

Note: Not Shown

Usually ships in 1 day

$

$3.11

0
