19A70009OEM - MTD Two-Stage Snow Thrower Assembly (2009) Undercarriage Assembly Parts Diagram

Two-Stage Snow Thrower Assembly

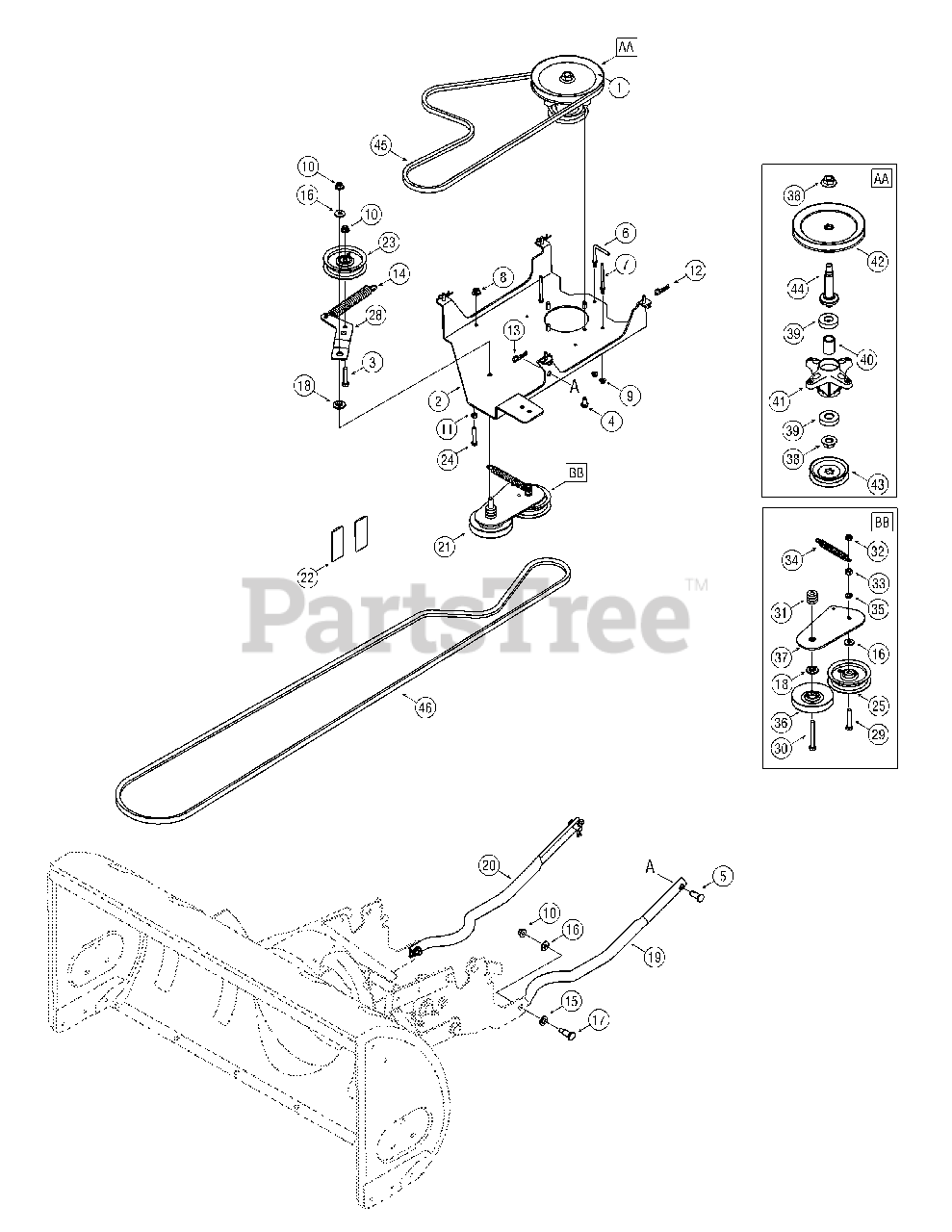

Undercarriage Assembly Parts Diagram

  • Title
1

MTD Part# 618-0411

Spindle Assembly (Incl. 38-44)
(Superseded to 918-0411A)
Usually ships in 5 to 10 days

$

$95.15

0

2

MTD Part# 683-04210-0637

Pulley Mounting Bracket
Usually ships same day

Not available

$

$

3

MTD Part# 710-0347

Hex Cap Screw, 3/8-16 x 1.75
Usually ships in 1 day

$

$3.52

0

4

MTD Part# 710-1260A

Self Tapping Screw
Usually ships in 1 day

$

$2.65

0

5

MTD Part# 911-0310

Clevis Pin, .5 x 1.18
Usually ships same day

Not available

$

$

6

MTD Part# 711-04741

Belt Keeper Pin
Usually ships in 5 to 10 days

$

$14.55

0

7

MTD Part# 911-1000

Belt Keeper Pin
Usually ships in 1 day

$

$7.73

0

8

MTD Part# 712-04063

Nylon Hex Lock Nut, 5/16-18
Usually ships in 1 day

$

$2.83

0

9

MTD Part# 712-04064

Nylon Hex Lock Nut, 1/4-20
Usually ships in 1 day

$

$2.88

0

10

MTD Part# 712-04065

Hex Flange Lock Nut, 3/8-16
Usually ships in 1 day

$

$2.92

0

11

MTD Part# 912-3010

Hex Nut, 5/16-18
Usually ships in 1 day

$

$3.11

0

12

MTD Part# 914-0145

Click Pin, .092 x 1.64
Usually ships same day

Not available

$

$

13

MTD Part# 714-0147

Internal Cotter Pin, .125 x 1.75
Usually ships in 1 day

$

$3.36

0

14

MTD Part# 932-0594A

Extension Spring .91 x 7.33
Usually ships in 1 day

$

$10.91

0

15

MTD Part# 936-0192

Flat Washer, .531 x .93 x .09
Usually ships in 1 day

$

$3.00

0

16

MTD Part# 736-3072

Flat Washer, .38 x .93 x .11
Usually ships in 1 day

$

$3.28

0

17

MTD Part# 938-0145

Shoulder Screw, 3/8-16
Usually ships in 1 day

$

$4.81

0

18

MTD Part# 938-0347

Shoulder Spacer, .625 x .169
Usually ships in 1 day

$

$7.16

0

19

MTD Part# 749-1103-0637

LH Support Tube
Usually ships in 5 to 10 days

$

$40.11

0

20

MTD Part# 749-1104-0637

RH Support Tube
Usually ships in 5 to 10 days

$

$40.11

0

21

MTD Part# 684-0149

Double Idler Bracket Assembly
(Superseded to 753-08594)
Usually ships in 1 day

$

$125.94

0

22

MTD Part# 930-3000

Reflector
Usually ships in 1 day

$

$12.15

0

23

MTD Part# 756-0627D

Idler Pulley, 3.50 OD
Usually ships in 1 day

$

$22.70

0

24

MTD Part# 710-3180

Hex Cap Screw, 5/16-18 x 1.75
Usually ships in 1 day

$

$3.92

0

25

MTD Part# 756-0627D

Idler Pulley 3.50 dia.
Usually ships in 1 day

$

$22.70

0

28

MTD Part# 783-1291-0637

Idler Bracket
(Superseded to 783-1291A-0637)
Usually ships in 1 day

$

$9.25

0

29

MTD Part# 710-0151

Hex Cap Screw, 3/8-24 x 2
Usually ships in 1 day

$

$5.26

0

30

MTD Part# 710-0521

Hex Cap Screw, 3/8-16 x 3
Usually ships in 1 day

$

$3.63

0

31
Usually ships in 1 day

$

$3.14

0

32

MTD Part# 912-0116

Nylon Jam Lock Nut, 3/8-24
Usually ships same day

Not available

$

$

33

MTD Part# 712-0241

Hex Nut, 3/8-24
Usually ships in 1 day

$

$3.10

0

34

MTD Part# 732-0978

Extension Spring, .620 x 5.62
Usually ships in 1 day

$

$7.92

0

35

MTD Part# 936-0169

Lock Washer, 3/8
Usually ships in 1 day

$

$2.64

0

36

MTD Part# 756-0487

Idler pulley, 4" Diameter
Usually ships in 1 day

$

$36.07

0

37

MTD Part# 784-5727-0637

Idler Pivot Arm
Usually ships in 5 to 10 days

$

$51.82

0

38

MTD Part# 712-0417A

Flange Nut 5/8-18
Usually ships in 1 day

$

$5.15

0

39

MTD Part# 941-0919

Ball Bearing
(Superseded to 941-0919B)
Usually ships in 1 day

$

$18.12

0

40
Usually ships in 5 to 10 days

$

$5.89

0

41

MTD Part# 618-0411

Deck Spindle Housing
(Superseded to 918-0411A)
Usually ships in 5 to 10 days

$

$95.15

0

42

MTD Part# 756-0999

Deck Pulley 7"
Usually ships in 5 to 10 days

$

$43.22

0

43

MTD Part# 756-1173

Pulley 3.75"
Usually ships in 5 to 10 days

$

$25.81

0

44

MTD Part# 738-0976

Spindle Shaft
Usually ships in 1 day

$

$38.44

0

45
Usually ships in 1 day

$

$39.20

0

46
Usually ships in 1 day

$

$45.09

0

MTD Part# 650-0040

Idler Assembly Spacer

Note: Not Shown

Usually ships in 5 to 10 days

$

$21.74

0

MTD Part# 912-0431

Flange Lock Nut 3/8-16

Note: Not Shown

Usually ships in 1 day

$

$3.45

0
