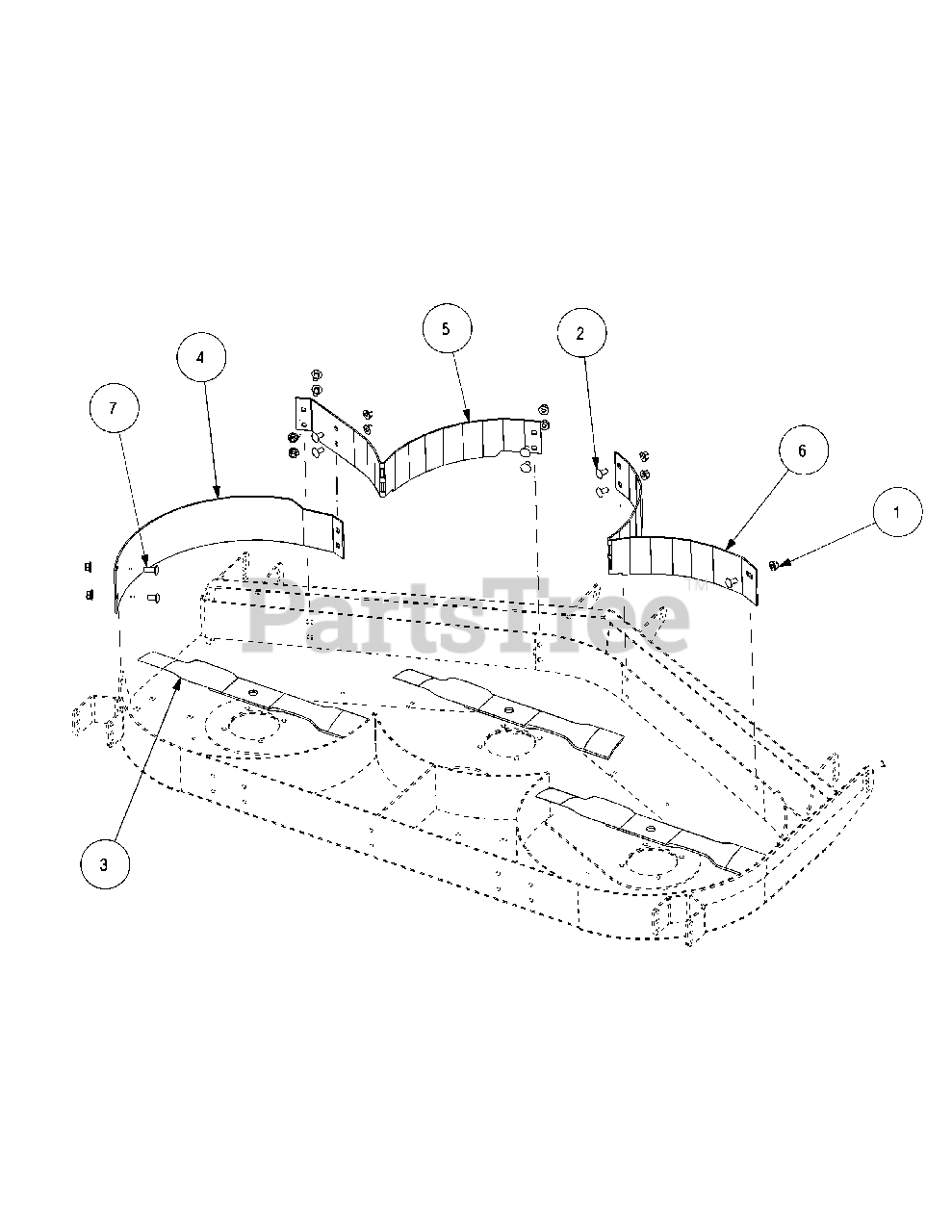

19A70017 (19A70017100) - Cub Cadet 60" Mulch Kit General Assembly Parts Diagram

60" Mulch Kit

General Assembly Parts Diagram

  • Title

1

Cub Cadet 00022560

Nut, Flange 3/8-16 Gr5
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-3178

CARRIAGE BOLT 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 01005381

Blade:21" Mulch
(Superseded to 01005381P-X)

$46.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-07697-0637

Baffle, Mulch RH

$80.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-07698-0637

Baffle, Mulch Center

$133.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-07700-0637

Baffle, Mulch LH

$134.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-3097

Bolt, Carriage 3/8-16 Gr 5

$6.99

$

In Stock, Qty 5

0
