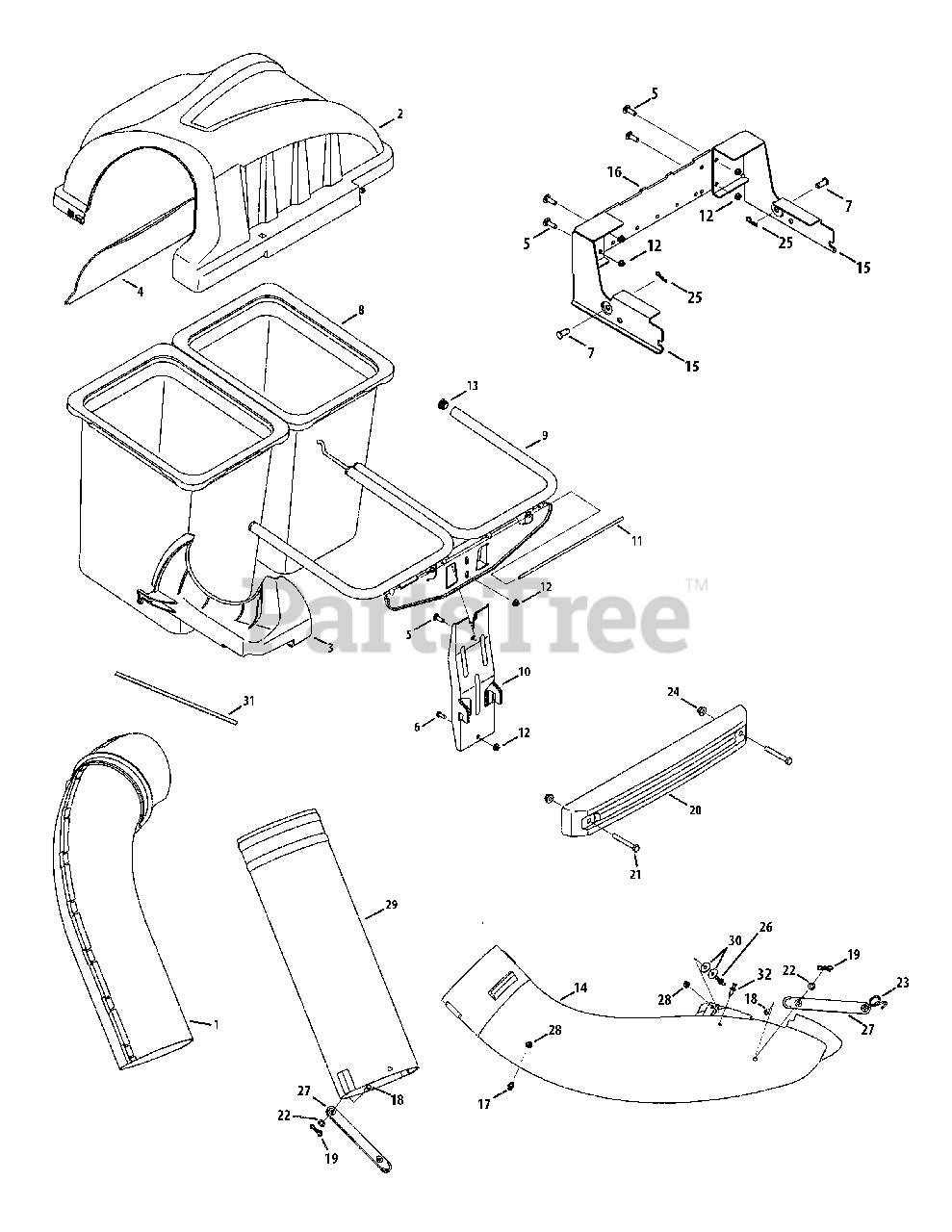

19A70020 (19A70020100) - Cub Cadet Twin Rear Bagger General Assembly Parts Diagram

Twin Rear Bagger

General Assembly Parts Diagram

  • Title

1

Cub Cadet 931-04291

Upper Chute Assembly
(Superseded to 931-04291A)

$129.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 931-04292

Twin Bagger Cover Assembly

$155.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 731-06497

Upper Chute Support

$38.99

$

In Stock, only 3 left!

0

4

Cub Cadet 731-06504

Bagger Cover Screen

$18.99

$

In Stock, only 2 left!

0

5

Cub Cadet 710-0276

Carriage Screw, 5/16-18 x 1.00"

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 911-0332

Clevis Pin, .50" Dia. x .78

Note: (2011)

$17.99

$

In Stock, Qty 20+

0

7

Cub Cadet 911-0310

Clevis Pin, .50" Dia. x 1.18
(Superseded to 711-0310)

Note: (2012)

$

$

Not available

8

Cub Cadet 964-04090A

Grass-bag Assembly

$101.99

$

In Stock, Qty 13

0

9

Cub Cadet 683-04461A-0637

Twin Bag Support Assembly
(Superseded to 683-04461B-0637)

$220.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 683-04519-0637

Vertical Support Bracket
(Superseded to 683-04519B-0637)

$151.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 711-04988

Cover Hinge Pin

$13.99

$

In Stock, only 2 left!

0

12

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 735-0246A

End Plug

$6.49

$

In Stock, Qty 12

0

14

Cub Cadet 731-06099B

Discharge Chute Elbow

$115.99

$

In Stock, Qty 5

0

15

Cub Cadet 689-00111

RZT Hitch Bracket Kit
(Superseded to 689-00204A)

Note: (2011) (Includes RH, LH & Cross Bracket)

$202.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 689-00204A

RZT Hitch Bracket Kit

Note: (2012) (Includes RH, LH & Cross Bracket)

$202.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 783-06168

Universal Cross Bracket

Variations

783-06168-0637

Cub Cadet 783-06168-0637

Mounting Support Plate - POWDER BLACK (0637)

$149.99

$

Usually ships in 3-6 days

0

$138.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 911-04069

Grass-catcher Pin

$8.99

$

In Stock, Qty 18

0

18

Cub Cadet 711-05063

Clevis Pin 5/16 x 3/4

$3.99

$

In Stock, Qty 10

0

19

Cub Cadet 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

20

Cub Cadet 719-04271A

Bagger Weight

$267.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-3022

Hex Head Screw, 3/8 - 16 x 2.75

$4.99

$

In Stock, only 3 left!

0

22

Cub Cadet 736-0204

Flat Washer, .344 x .62 x .033

$4.49

$

In Stock, Qty 19

0

23

Cub Cadet 732-04510A

Torsion Spring Hook

$5.49

$

In Stock, Qty 7

0

24

Cub Cadet 712-04065

Flange Lock Nut, 3/8 - 16

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 914-04023

Cotter Pin, .080 x 1.5625 Internal
(Superseded to 714-04023)

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 711-05049

Grass-catcher Pin

$9.49

$

In Stock, Qty 7

0

27

Cub Cadet 723-04008A

Chute Strap

$10.99

$

In Stock, Qty 20+

0

28

Cub Cadet 912-3027

Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 731-06668

Bagger Chute Adapter, 7 In.

$85.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 936-0176

Flat Washer
(Superseded to 736-0176)

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 721-04388

Foam Strip

$7.49

$

In Stock, only 2 left!

0

32

Cub Cadet 738-0754

Shoulder Screw, 5/16-18 x .54

Note: (2011) (use 712-04063 nut)

$4.99

$

In Stock, Qty 16

0

32

Cub Cadet 728-0199

Plastic Rivet

Note: (2012)

$4.99

$

In Stock, Qty 20+

0
