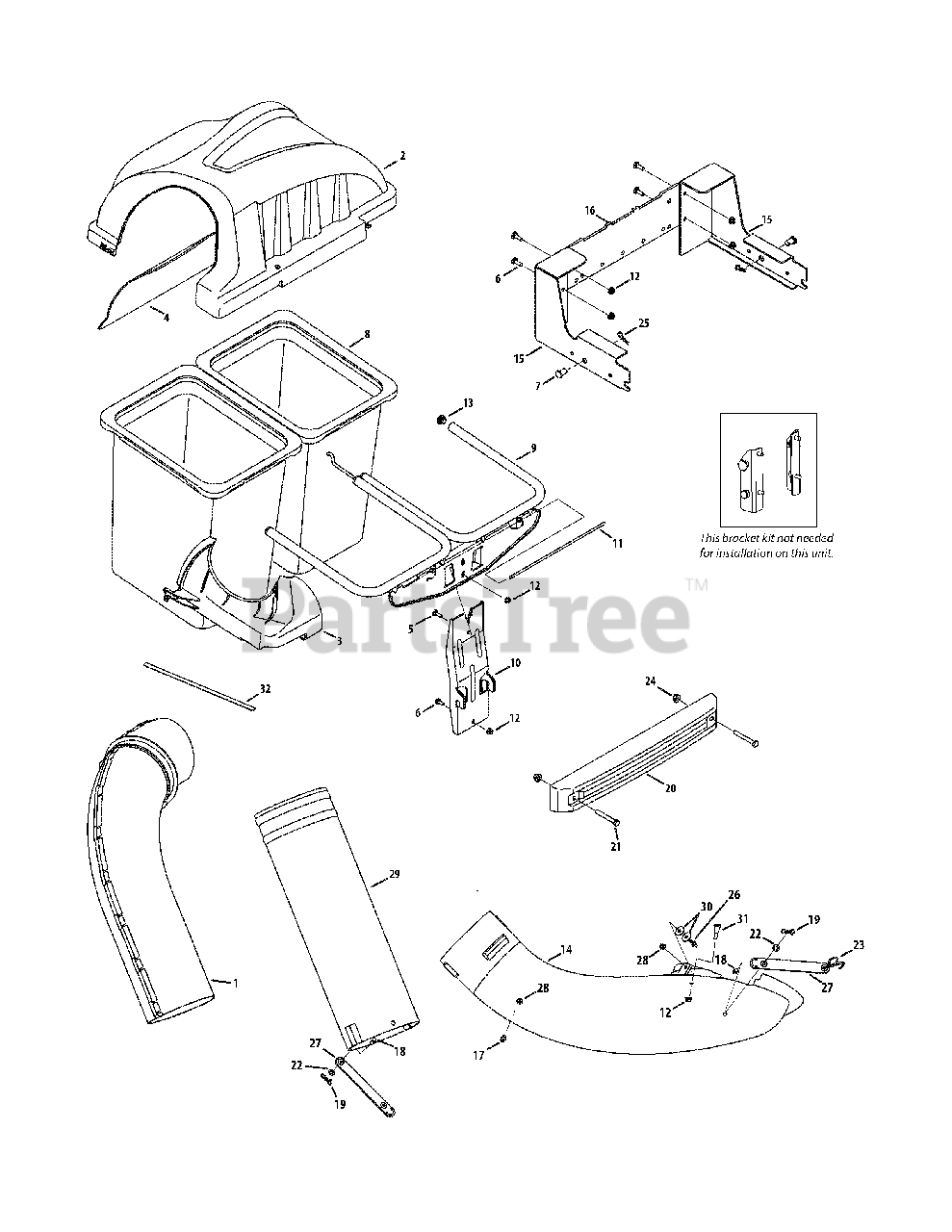

19A70020OEM - White Outdoor Twin Bag Grass Collector (2011) > Parts Diagrams (1) > General Assembly

  • Title
931-04291

1

Upper Chute Assembly

Part# 931-04291 (Superseded to 931-04291A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $98.63

931-04292

2

Twin Bagger Cover Assembly

Part# 931-04292

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $119.10

731-06497

3

Upper Chute Support

Part# 731-06497

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $25.58

731-06504

4

Bagger Cover Screen

Part# 731-06504

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $12.42

710-0276

5

Carriage Screw, 5/16-18 x 1.00"

Part# 710-0276

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

710-3008

6

Hex Head Screw, 5/16-18 x .75"

Part# 710-3008

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.99

911-0332

7

Clevis Pin, .50" Dia.

Part# 911-0332

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $11.88

964-04096A

8

Grass-bag Assembly

Part# 964-04096A (Superseded to 964-05104)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $70.34

683-04461A-0637

9

Twin Bag Support Assembly

Part# 683-04461A-0637

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $146.39

683-04519-0637

10

Vertical Support Bracket

Part# 683-04519-0637 (Superseded to 683-04519B-0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $100.86

711-04988

11

Cover Hinge Pin

Part# 711-04988

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.87

712-04063

12

Flange Lock Nut, 5/16-18

Part# 712-04063

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

735-0246A

13

End Plug

Part# 735-0246A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.02

731-06099B

14

Discharge Chute Elbow

Part# 731-06099B

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $80.52

689-00111

15

RZT Hitch Bracket Kit

Part# 689-00111 (Superseded to 689-00204A)

Note: (Includes RH, LH & Cross Bracket)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $134.73

783-06168

16

Universal Cross Bracket

Part# 783-06168

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $99.05

Variations

POWDER BLACK (0637)

Mounting Support Plate

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $99.05

911-04069

17

Grass-catcher Pin

Part# 911-04069

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.21

711-05063

18

Clevis Pin 5/16 x 3/4

Part# 711-05063

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.58

714-04040

19

Bow-Tie Cotter Pin

Part# 714-04040

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $1.02

719-04271A

20

Bagger Weight

Part# 719-04271A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $204.15

710-3022

21

Hex Head Screw, 3/8 - 16 x 2.75

Part# 710-3022

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.29

736-0204

22

Flat Washer, .344 x .62 x .033

Part# 736-0204

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.08

732-04510A

23

Torsion Spring Hook

Part# 732-04510A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.34

712-04065

24

Flange Lock Nut, 3/8 - 16

Part# 712-04065

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

914-04023

25

Cotter Pin, .080 x 1.5625 Internal

Part# 914-04023

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

711-05049

26

Grass-catcher Pin

Part# 711-05049

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.07

723-04008A

27

Chute Strap

Part# 723-04008A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.04

912-3027

28

Flange Lock Nut, 1/4-20

Part# 912-3027

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.05

731-06668

29

Bagger Chute Adapter, 7 In.

Part# 731-06668

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $56.63

936-0176

30

Flat Washer

Part# 936-0176

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.18

738-0754

31

Shoulder Screw

Part# 738-0754

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.02

721-04388

32

Foam Strip

Part# 721-04388

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.03
