19A70021 (19A70021100) - Cub Cadet Twin Rear Bagger att General Assembly Parts Diagram

Twin Rear Bagger

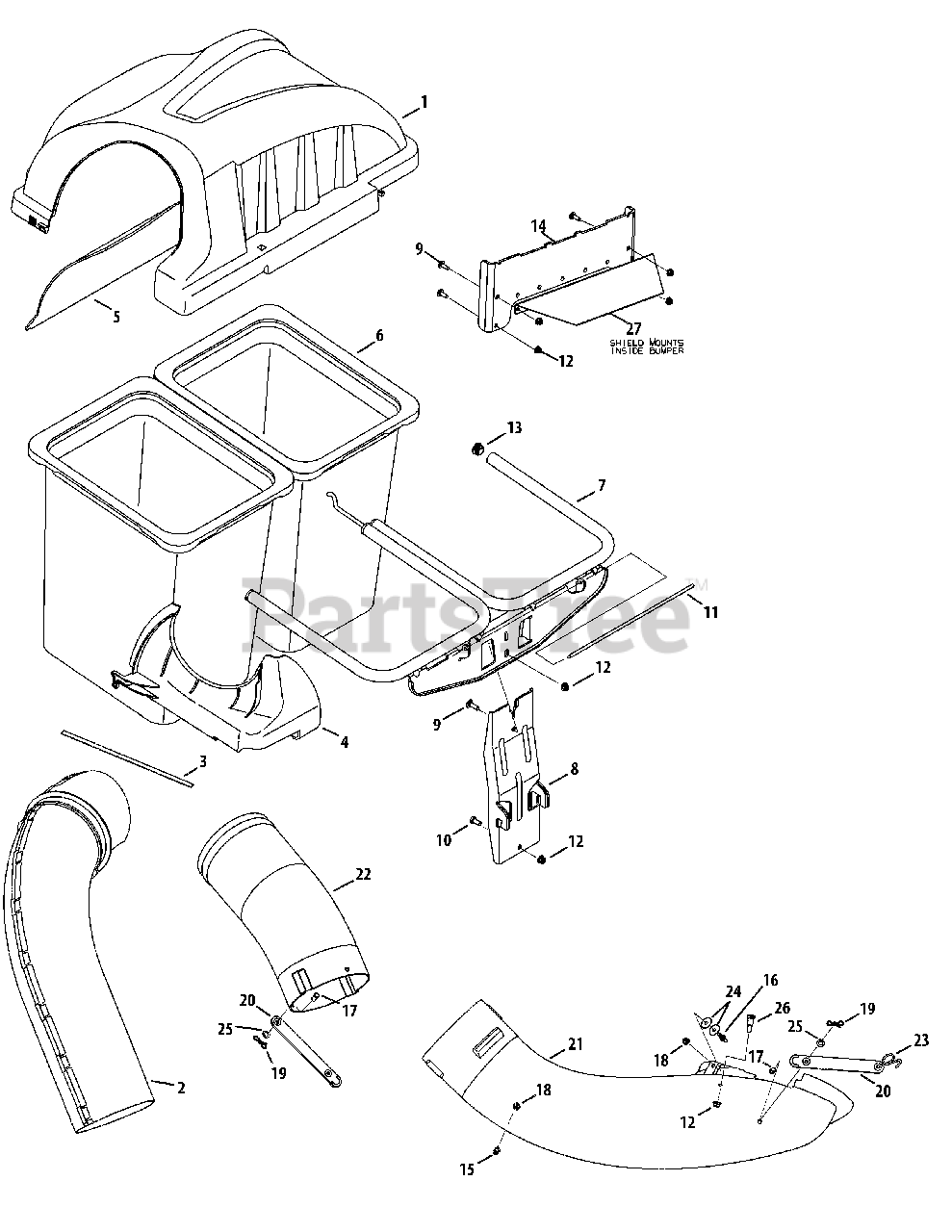

General Assembly Parts Diagram

  • Title

1

Cub Cadet 931-04292

Cover Assembly, Bag, Double

$140.99

$

In Stock, only 1 left!

0

2

Cub Cadet 931-04295A

Chute Assembly, Bagger, Upper, 32in
(Superseded to 931-04295B)

$135.99

$

In Stock, only 1 left!

0

3

Cub Cadet 721-04388

Foam, Tape, .75 Wide X .125 Thick

$6.99

$

In Stock, Qty 13

0

4

Cub Cadet 731-06497

Support, Bagger, Upper Chute

$33.99

$

In Stock, only 2 left!

0

5

Cub Cadet 731-06504

Screen, Bagger

$16.99

$

In Stock, only 1 left!

0

6

Cub Cadet 964-04090A

Bag Assembly, Grass bag, Cub

$90.99

$

In Stock, Qty 20+

0

7

Cub Cadet 683-04461A-0637

Support Assembly, Bag, Double
(Superseded to 683-04461B-0637)

$193.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 683-04519-0637

Bracket Assembly, Bagger, Vert Support
(Superseded to 683-04519B-0637)

$133.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0276

Screw, Carriage, 5/16-18, 1.00

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3008

Hex Head Screw, 5/16-18, .75, Gr5, Std

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 711-04988

Pin, Cover Hinge, Bagger, Double

$11.99

$

In Stock, only 2 left!

0

12

Cub Cadet 712-04063

Nut, Flange lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 735-0246A

Plug, End

$5.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 703-07657

Bracket, Bagger

Variations

Cub Cadet 703-07657-0637

PLATE-CATCHER MTG - POWDER BLACK (0637)

$119.99

$

Usually ships in 3-6 days

0

$96.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 911-04069

Pin, Grass catcher, 1/4-20

$7.99

$

In Stock, Qty 20+

0

16

Cub Cadet 711-05049

Attachment Pin, 1/4 x 0.66 Lg.

$8.49

$

In Stock, Qty 15

0

17

Cub Cadet 711-05063

Clevis Pin, 5/16 x .75 Lg.

$3.49

$

In Stock, Qty 20+

0

18

Cub Cadet 912-3027

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

20

Cub Cadet 723-04008A

Chute Strap, 6.00 Lg.

$8.99

$

In Stock, Qty 20+

0

21

Cub Cadet 731-06099B

Bagger Discharge Chute, Elbow

$104.99

$

In Stock, Qty 10

0

22

Cub Cadet 731-08388

Chute Extension

$110.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 732-04510A

Torsion Spring Hook

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 936-0176

Wash, Bell, .265 X .938 X .120
(Superseded to 736-0176)

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 736-0204

Wash, Bell, .344 X .620 X .033

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 738-0754

Shoulder Screw, .437 x .54

$3.99

$

In Stock, Qty 6

0

27

Cub Cadet 703-08692

Muffler Shield

$44.99

$

Usually ships in 3-6 days

0
