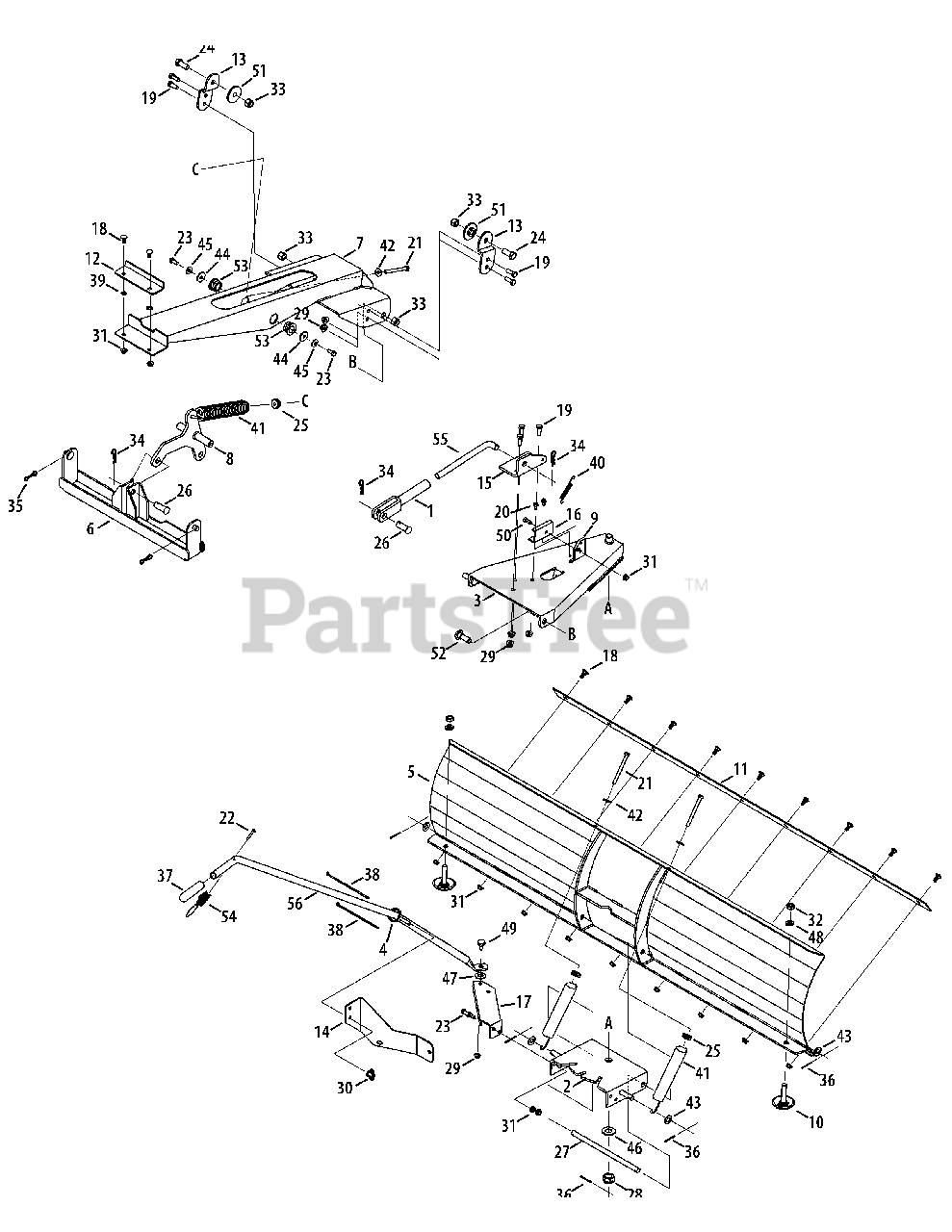

19A70024 (19A70024100) - Cub Cadet 54" Snow Blade General Assembly Parts Diagram

54" Snow Blade

General Assembly Parts Diagram

  • Title

1

Cub Cadet 10991-0637

Adjustment Clevis Assembly

$146.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-0266

Blade Pivot Assembly

Variations

Cub Cadet 603-0266-0498

USE 603-0266-0716 PIVOT ASM-B - OLD CUB YELLOW (0498)

$142.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0266-0716

PIVOT ASM-BLADE - CUB YELLOW-99 (0716)

$142.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0266-0637

PIVOT ASM-BLADE - POWDER BLACK (0637)

$153.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0266-4021

PIVOT ASM-BLADE - CUB YELLOW 2 (4021)

$142.99

$

Usually ships in 3-6 days

0

$123.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-0267A-4021

Blade Frame Assembly

$375.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 603-0297

Eyebolt Assembly

$15.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 603-04893-4021

Blade Assembly, 58"

$636.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 603-04895-4021

Lift Bracket Assembly

$

$

Not available

7

Cub Cadet 603-04896-4021

Bracket Assembly

$

$

Not available

8

Cub Cadet 603-04897

Pivot Bracket Assembly

$

$

Not available

9

Cub Cadet 603-04904-4021

Blade Lock Plate Assembly

$46.99

$

In Stock, only 2 left!

0

10

Cub Cadet 703-0650-0637

Skid Shoe Assembly
(Superseded to 703-0650)

$49.99

$

In Stock, only 4 left!

0

11

Cub Cadet 703-08523-4021

Shave Plate, 46"
(Superseded to 703-08523-0637)

$130.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-08531-4021

Retainer Bracket

$

$

Not available

13

Cub Cadet 703-08532-4021

Mounting Bracket

$

$

Not available

14

Cub Cadet 703-08585-0637

Handle Mounting Bracket

$30.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 703-2679

Front Lift Bracket

Variations

Cub Cadet 703-2679-0716

Front Lift Bracket - CUB YELLOW-99 (0716)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2679-4021

BRACKET-FRONT LIFT - CUB YELLOW 2 (4021)

$24.99

$

In Stock, only 1 left!

0

Cub Cadet 703-2679-0498

BRACKET-FRONT LIFT - OLD CUB YELLOW (0498)

$24.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2679-0637

BRACKET-FRONT LIFT - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$21.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 703-2693

Pivot Bracket

Variations

Cub Cadet 703-2693-0498

USE 703-2693-0716 BRACKET-PIV - OLD CUB YELLOW (0498)

$20.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2693-0716

BRACKET-PIVOT - CUB YELLOW-99 (0716)

$20.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2693-0637

BRACKET-PIVOT - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2693-4021

BRACKET-PIVOT - CUB YELLOW 2 (4021)

$21.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 703-2696A-4021

Blade Adjustment Arm
(Superseded to 603-05175-4021)

$78.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-0451

Carriage Bolt, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0514

Hex Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 710-1207

Hex Screw, 5/16-18 x 3.50

$7.49

$

In Stock, only 4 left!

0

22

Cub Cadet 710-1233

Machine Screw, #10-24 x 1.375

$4.99

$

In Stock, Qty 9

0

23

Cub Cadet 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 710-3032

Hex Screw, 1/2-13 x 1.25

$6.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 711-0509

Spring Insert

$63.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 711-0654

Clevis Pin

$17.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 711-3402A

Rod, .50 x 10.428

$39.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 712-0359

Slotted Nut, 3/4-16

$12.99

$

In Stock, only 2 left!

0

29

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 712-0421

Nut, 5/16-18, Wing w/ Bell Washer

$7.49

$

In Stock, only 3 left!

0

31

Cub Cadet 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 912-3048

Jam Nut, 1/2-13
(Superseded to 712-3048)

$4.99

$

In Stock, Qty 20+

0

33

Cub Cadet 712-3083

Nut, 1/2-13, Hex Lock Nylon

$4.99

$

In Stock, Qty 20+

0

34

Cub Cadet 714-0147

Cotter Pin, .125 x 1.75

$5.49

$

In Stock, Qty 6

0

35

Cub Cadet 714-04043

Bow-Tie Cotter Pin

$5.49

$

In Stock, Qty 20+

0

36

Cub Cadet 914-0470

Cotter Pin, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 15

0

37

Cub Cadet 720-0283

Foam Grip

$8.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet 726-0201

Speed Nut, .3125 ID

$7.49

$

In Stock, Qty 20+

0

40

Cub Cadet 932-0320

Extension Spring, .38 x 3.25

$10.99

$

In Stock, only 3 left!

0

41

Cub Cadet 732-3123

Extension Spring, 1.25 x 6.7

$29.99

$

In Stock, only 4 left!

0

42

Cub Cadet 936-0159

Flat Washer, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

43

Cub Cadet 936-0160

Flat Washer, .530 x .930 x .050

$4.49

$

In Stock, only 1 left!

0

44

Cub Cadet 936-0231

Flat Washer, .344 x 1.125 x .120
(Superseded to 736-0231)

$

$

Not available

45

Cub Cadet 736-0242

Bell Washer, .340 x .872 x .060

$4.99

$

In Stock, Qty 20+

0

46

Cub Cadet 736-0315

Flat Washer, .760 x 1.50 x .120

$7.49

$

In Stock, only 2 left!

0

47

Cub Cadet 936-0414

Flat Washer, .570 x 1.12 x .062
(Superseded to 736-0414)

$

$

Not available

48

Cub Cadet 936-0921

Lock Washer, 1/2
(Superseded to 736-0921)

$4.99

$

In Stock, Qty 17

0

49

Cub Cadet 738-0143

Shoulder Bolt, .496 x .336 x 3/8-16

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 738-04320

Shoulder Screw, .405 x .435, 5/16-18

$5.99

$

In Stock, only 3 left!

0

51

Cub Cadet 738-04337A

Shoulder Spacer, .9790 x .2025

$6.49

$

In Stock, Qty 6

0

52

Cub Cadet 938-0744A

Shoulder Screw, .625 x .36, 1/2-13

$12.99

$

In Stock, only 4 left!

0

53

Cub Cadet 741-04499

Hex Flange Bearing, .752 ID

$13.99

$

In Stock, only 2 left!

0

54

Cub Cadet 946-3059B

Cable, Blade Release

$59.99

$

In Stock, only 2 left!

0

55

Cub Cadet 747-05535

Lift Rod

$

$

Not available

56

Cub Cadet 749-04855-4021

Blade Adjustment Handle

$

$

Not available
