19A70034OEM - MTD 54" Twin Rear Bagger Assembly (2014) General Assembly Parts Diagram

54" Twin Rear Bagger Assembly

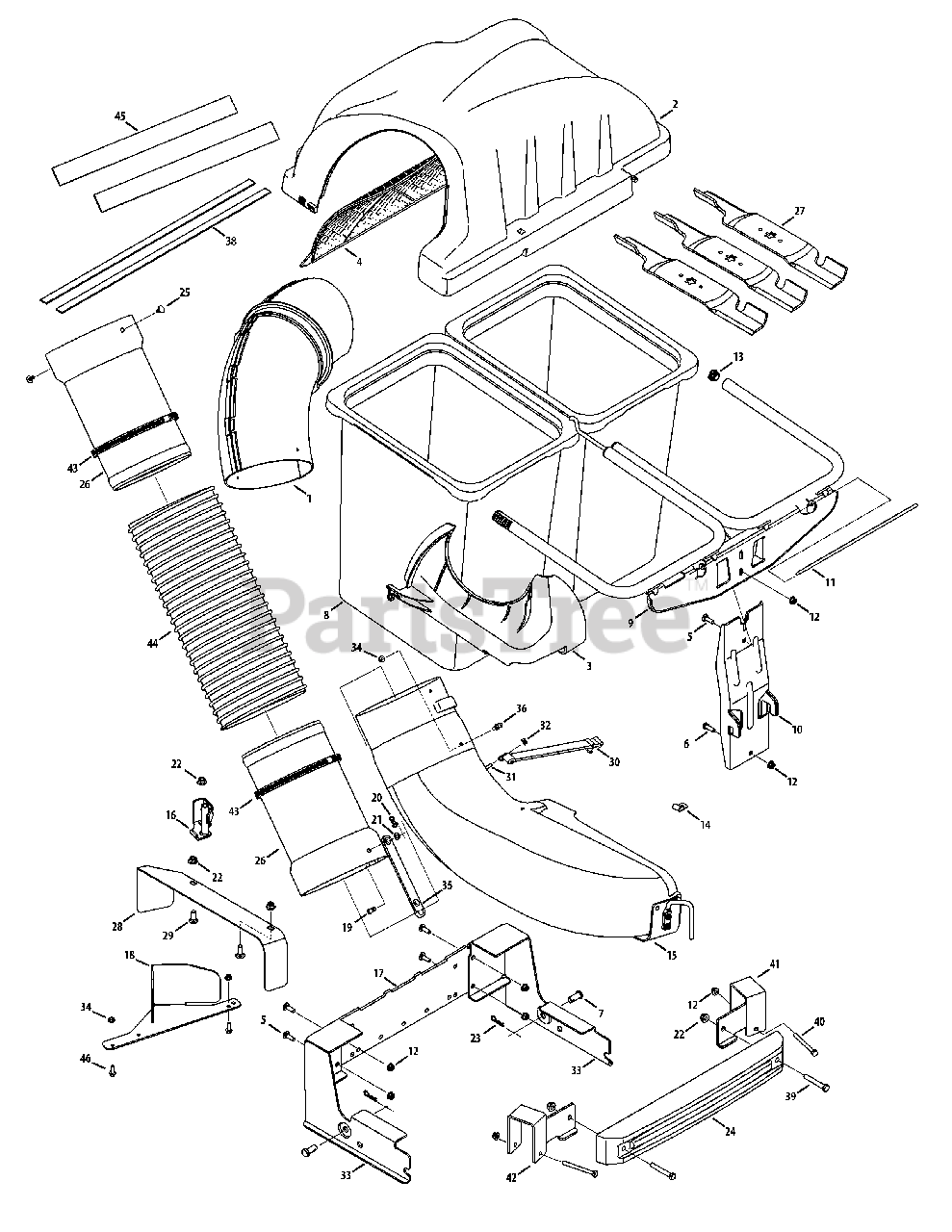

General Assembly Parts Diagram

  • Title

1

MTD 931-05071

Upper Chute Assembly

$98.99

$

Usually ships in 3-6 days

0

2

MTD 931-04292

Twin Bagger Cover

$140.99

$

In Stock, only 1 left!

0

3

MTD 731-06497

Upper Chute Support

$33.99

$

In Stock, only 2 left!

0

4

MTD 731-06504

Bagger Cover Screen

$16.99

$

In Stock, only 1 left!

0

5

MTD 710-0276

Carriage Screw, 5/16-18 x 1.00"

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-0376

Hex Head Screw, 5/16-18 x .75"

$3.99

$

In Stock, Qty 17

0

7

MTD 911-0310

Clevis Pin, .50" Dia. x .78 Lg.
(Superseded to 711-0310)

$

$

Not available

8

MTD 964-04096A

Grass-bag Assembly
(Superseded to 964-05104)

$90.99

$

In Stock, Qty 20+

0

9

MTD 683-04461A-0637

Twin Bag Support Assembly
(Superseded to 683-04461B-0637)

$193.99

$

Usually ships in 3-6 days

0

10

MTD 683-04519A-0637

Vertical Support Bracket
(Superseded to 683-04519B-0637)

$133.99

$

Usually ships in 3-6 days

0

11

MTD 711-04988

Cover Hinge Pin

$11.99

$

In Stock, only 2 left!

0

12

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

MTD 735-0246A

End Plug

$5.49

$

Usually ships in 3-6 days

0

14

MTD 96606

Retainer Hook

$6.99

$

In Stock, Qty 14

0

15

MTD 631-04300C

Discharge Chute Elbow

$263.99

$

Usually ships in 3-6 days

0

16

MTD 683-0617A-0637

Chute Stop-Bracket

$60.99

$

In Stock, only 2 left!

0

17

MTD 783-06168-0637

Universal Mounting Bracket

$130.99

$

Usually ships in 3-6 days

0

18

MTD 703-06018A-0637

Deck Baffle

$85.99

$

Usually ships in 3-6 days

0

19

MTD 711-05063

Clevis Pin, 5/16 x 3/4

$3.49

$

In Stock, Qty 20+

0

20

MTD 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

21

MTD 736-0204

Flat Washer, .344 x .620 x .033

$3.99

$

In Stock, Qty 20+

0

22

MTD 712-04065

Flange Lock Nut, 3/8 - 16

$3.99

$

In Stock, Qty 20+

0

23

MTD 914-04023

Cotter Pin, .080 x 1.5625 Internal
(Superseded to 714-04023)

$3.99

$

In Stock, Qty 20+

0

24

MTD 719-04271A

RZT Bagger Weight

$240.99

$

Usually ships in 3-6 days

0

25

MTD 726-3046

Ratchet Clip, .250

$3.99

$

In Stock, Qty 20+

0

26

MTD 731-06611

Bagger Chute Adapter, 7 In.

$43.99

$

In Stock, only 3 left!

0

27

MTD 942-0679

Blade, 18.50 Lg., High Lift
(Superseded to 742-0679-0637)

$38.99

$

Usually ships in 3-6 days

0

28

MTD 783-06694-0637

Chute Discharge Plate
(Superseded to 783-06694A-0637)

$40.99

$

Usually ships in 3-6 days

0

29

MTD 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

30

MTD 723-0476

Chute Strap

$30.99

$

In Stock, only 3 left!

0

31

MTD 710-3015

Hex Head Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

32

MTD 712-04064

Flange Lock Nut, 1/4 - 20

$3.99

$

In Stock, Qty 20+

0

33

MTD 689-00204A

RZT Mounting Assembly

Note: (Incl. Ref No. 17 & 33)

$177.99

$

Usually ships in 3-6 days

0

34

MTD 912-3027

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

35

MTD 723-04008A

Chute Strap

$8.99

$

In Stock, Qty 20+

0

36

MTD 911-04069

Grass-catcher Pin

$7.99

$

In Stock, Qty 20+

0

37

MTD 710-0924

Machine Screw, 1/4-20

$4.49

$

In Stock, Qty 20+

0

38

MTD 721-04388

Adhesive Strip

$6.99

$

In Stock, Qty 13

0

39

MTD 710-0859

Hex Bolt, 3/8 - 16 x 2.50

Note: * RZT-L Models Only!

$6.49

$

In Stock, Qty 20+

0

40

MTD 710-3056

Hex Bolt, 5/16 - 18 x 2.50

Note: * RZT-L Models Only!

$9.49

$

In Stock, only 1 left!

0

41

MTD 703-09193-0637

Weight Mounting Bracket, RH

Note: * RZT-L Models Only!

$39.99

$

Usually ships in 3-6 days

0

42

MTD 703-09197-0637

Weight Mounting Bracket, LH

Note: * RZT-L Models Only!

$39.99

$

Usually ships in 3-6 days

0

43

MTD 726-05019

Adj. Hose Clamp

$20.99

$

Usually ships in 3-6 days

0

44

MTD 764-05023

Flexible Chute Extension
(Superseded to 764-05023A)

$105.99

$

Usually ships in 3-6 days

0

45

MTD 735-05020

Wide Adhesive Rubber Strip

$31.99

$

Usually ships in 3-6 days

0

46

MTD 710-04666

Hex Flange Bolt, 1/4-20x.75

$6.49

$

In Stock, Qty 9

0
