19A70040 (19A70040100) - Cub Cadet Triple Rear Bagger att2 General Assembly Parts Diagram

Triple Rear Bagger

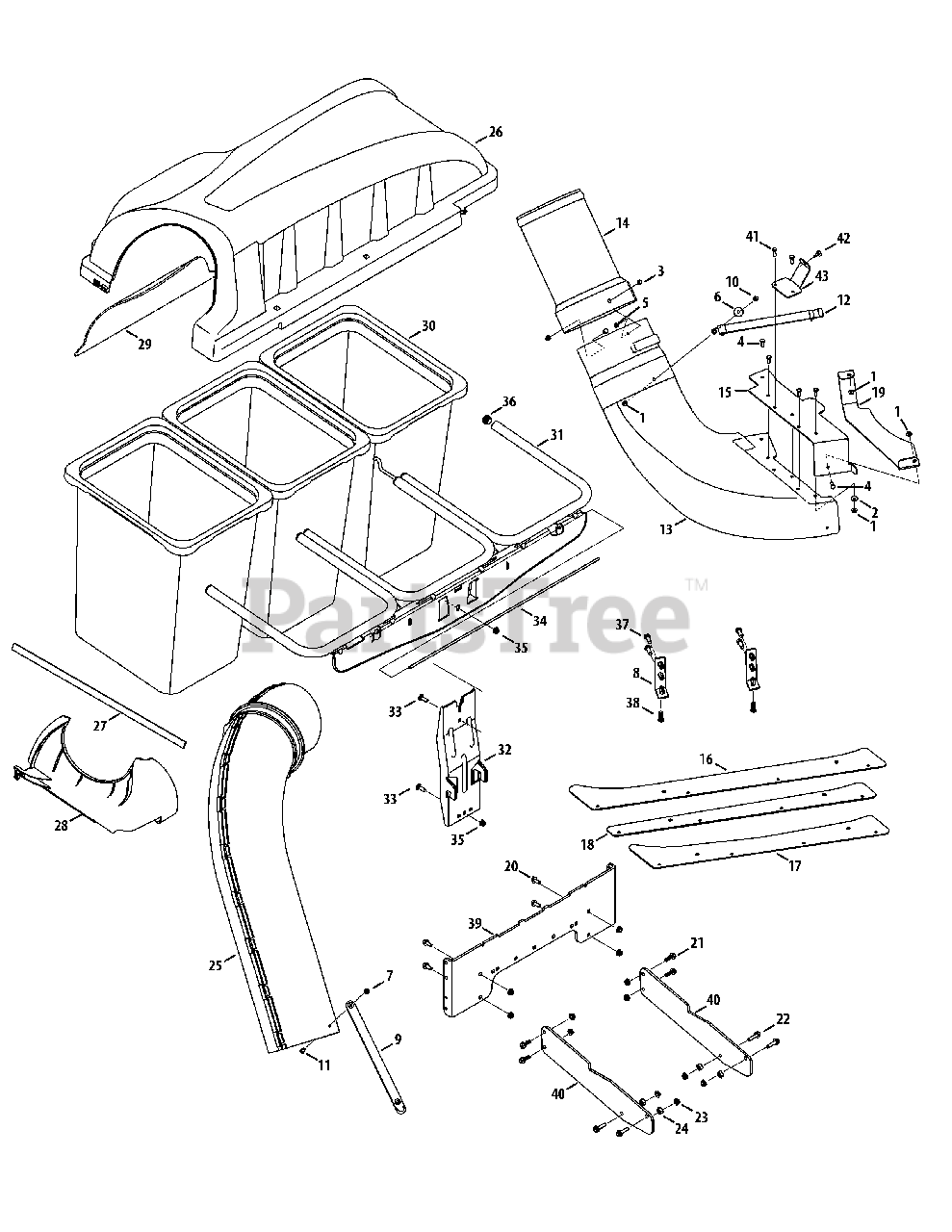

General Assembly Parts Diagram

  • Title

1

Cub Cadet 912-3027

Hex Flange Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 736-0270

SPRING WASHER BELL

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 912-0442

Cap Lock Nut, 1/4-20
(Superseded to 712-0442)

$

$

Not available

4

Cub Cadet 710-0751

SCREW 1/4-20 x .620 GR5

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-3013

Hex Head Screw, 1/4-20 x .50

$4.99

$

In Stock, Qty 7

0

6

Cub Cadet 736-3092

Flat Washer, .265 x 1.0 x .030

$4.49

$

In Stock, only 4 left!

0

7

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 603-05167

Bagger Bracket Assembly

$32.99

$

In Stock, only 2 left!

0

9

Cub Cadet 723-04009A

Chute Strap, 11.65" Lg.

$12.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 911-04069

Grass Catcher Pin, 1/4-20

$8.99

$

In Stock, Qty 18

0

11

Cub Cadet 710-0924

Machine Screw, 1/4-20 x 0.750

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 723-0476

Chute Strap

$35.99

$

In Stock, only 2 left!

0

13

Cub Cadet 731-10109

Discharge Chute Elbow

$254.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 731-06611

Bagger Chute Adaptor

$49.99

$

In Stock, only 1 left!

0

15

Cub Cadet 703-09557-0637

Bagger Mounting Bracket

$67.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 703-07777A-0637

Front Baffle, 60"

$70.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 703-07774A-0637

Front Baffle, 48"

$60.99

$

In Stock, only 1 left!

0

18

Cub Cadet 703-08330A-0637

Front Baffle, 54"

$56.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 703-09777-0637

Inner Boot Bracket

$56.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 710-04043

Hex Flange Screw, 5/16-18

$4.99

$

In Stock, only 2 left!

0

21

Cub Cadet 710-04048

Hex Flange Screw, 5/16-18 x 1.0

$5.49

$

In Stock, Qty 7

0

22

Cub Cadet 710-1090

Hex Flange Screw, 5/16-18 x 1.25

$3.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 912-3010

Hex Nut, 5/16-18
(Superseded to 712-3010)

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 931-04295A

Upper Chute Assembly
(Superseded to 931-04295B)

$154.99

$

In Stock, only 2 left!

0

26

Cub Cadet 631-04298P

Triple Bagger Cover Assembly

$224.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 721-04388

Adhesive Foam Strip

$7.49

$

In Stock, only 2 left!

0

28

Cub Cadet 731-06497

Upper Chute Support

$38.99

$

In Stock, only 3 left!

0

29

Cub Cadet 731-06504

Bagger Cover Screen

$18.99

$

In Stock, only 3 left!

0

30

Cub Cadet 964-04090A

Grass-bag Assembly

$101.99

$

In Stock, Qty 17

0

31

Cub Cadet 683-04498A-0637

Triple Bag Support Assembly
(Superseded to 683-04498B-0637)

$233.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 683-04519B-0637

Vertical Support Bracket

$151.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 710-0276

Carriage Screw, 5/16-18 x 1.00"

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 711-05079

Cover Hinge Pin

$24.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 735-0246A

End Plug

$6.49

$

In Stock, Qty 12

0

37

Cub Cadet 710-0514

Hex Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 710-04095

Hex Screw, 3/8 x 16 Low Profile

$5.49

$

In Stock, Qty 20+

0

39

Cub Cadet 703-07657A-0637

Cross Support Bracket

$135.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 703-09778-0637

Side Support Brackets

$65.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 710-3015

Hex Head Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 935-0199A

Rubber Bumper
(Superseded to 735-0199A)

$8.49

$

In Stock, Qty 18

0

43

Cub Cadet 703-09870-0637

Chute Support Bracket

$30.99

$

Usually ships in 3-6 days
