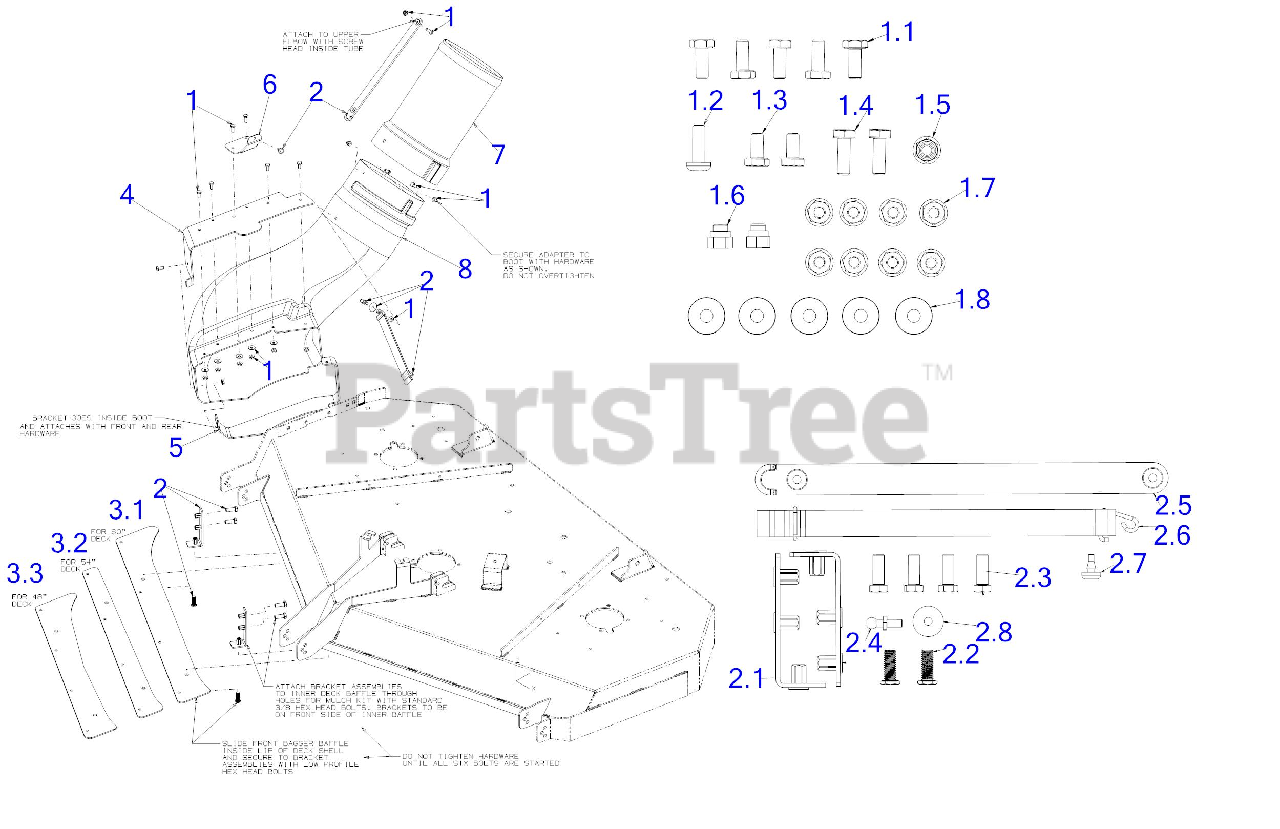

19A70040000 - MTD Triple Rear Bagger (2015) Boot Parts Diagram

Triple Rear Bagger

Boot Parts Diagram

  • Title

1

MTD n/a

HARDWARE PACK

$

$

Currently unavailable

1.1

MTD 710-0751

SCREW 1/4-20 x .620 GR5

$3.99

$

In Stock, Qty 20+

0

1.2

MTD 710-0924

SCREW 1/4-20X.75

$4.49

$

In Stock, Qty 20+

0

1.3

MTD 710-3013

SCREW 1/4-20X.5 GR5

$4.49

$

In Stock, only 2 left!

0

1.4

MTD 710-3015

SCREW 1/4-20X.75 GR5

$3.99

$

In Stock, Qty 20+

0

1.5

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

1.6

MTD 912-0442

HEX ACORN NUT
(Superseded to 712-0442)

$

$

Not available

1.7

MTD 912-3027

LOCK NUT 1/4

$3.99

$

In Stock, Qty 20+

0

1.8

MTD 736-0270

SPRING WASHER BELL

$3.99

$

In Stock, Qty 14

0

2

MTD n/a

HARDWARE PACK

$

$

Currently unavailable

2.1

MTD 603-05167

BRACKET ASSEMBLY-BAFFLE MTG 48/54/60 FAB

$28.99

$

Usually ships in 3-6 days

0

2.2

MTD 710-04095

SCREW 3/8-16X1.0 GR5 SPEC

$4.99

$

In Stock, Qty 20+

0

2.3

MTD 710-0514

SCREW 3/8-16 x 1 GR5

$3.99

$

In Stock, Qty 20+

0

2.4

MTD 911-04069

PIN 1/4-20

$7.99

$

In Stock, Qty 20+

0

2.5

MTD 723-04009A

CHUTE STRAP

$10.99

$

In Stock, only 1 left!

0

2.6

MTD 723-0476

CHUTE STRAP

$30.99

$

In Stock, only 3 left!

0

2.7

MTD 935-0199A

RUBBER BUMPER
(Superseded to 735-0199A)

$6.99

$

In Stock, Qty 16

0

2.8

MTD 736-3092

FLAT WASHER

$3.99

$

In Stock, Qty 13

0

3.1

MTD 703-07777A

60" FRONT DECK BAFFLE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-07777A-0637

BAFFLE-FRONT DECK - POWDER BLACK (0637)

$61.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

3.2

MTD 703-08330A

54" FRONT BAFFLE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-08330A-0637

BAFFLE-FRONT DECK - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

3.3

MTD 703-07774A

48" FRONT DECK BAFFLE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-07774A-0637

BAFFLE-FRONT DECK - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

4

MTD 703-09557

CHUTE TOP MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-09557-0637

Chute Top Mounting Bracket - POWDER BLACK (0637)

$59.99

$

Usually ships in 3-6 days

0

$47.99

$

Usually ships in 3-6 days

0

5

MTD 703-09777

INNER CHUTE BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-09777-0637

Inner Chute Bracket - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

6

MTD 703-09870

CHUTE SUPORT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-09870-0637

Chute Support Bracket - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$21.99

$

Usually ships in 3-6 days

0

7

MTD 731-06611

BAGGER CHUTE ADAPTER

$43.99

$

In Stock, only 3 left!

0

8

MTD 731-10109

BAGGER LOWER CHUTE

$228.99

$

In Stock, only 1 left!

0
