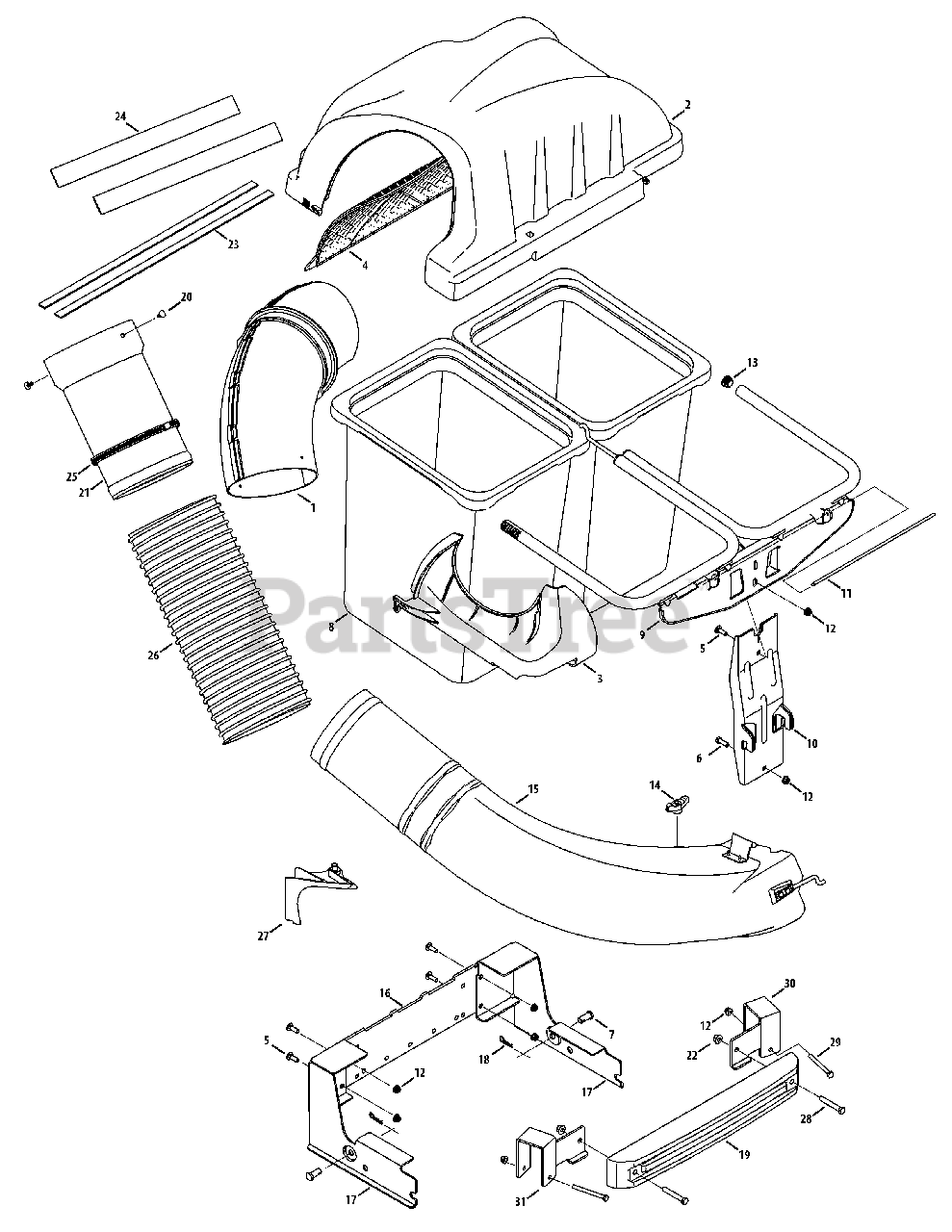

19A70043 (19A70043100) - Cub Cadet RZT Twin Bagger att2 General Assembly Parts Diagram

RZT Twin Bagger

General Assembly Parts Diagram

  • Title

1

Cub Cadet 931-05071

Upper Chute Assembly

$112.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 931-04292

Twin Bagger Cover

$155.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 731-06497

Upper Chute Support

$38.99

$

In Stock, only 3 left!

0

4

Cub Cadet 731-06504

Bagger Cover Screen

$18.99

$

In Stock, only 3 left!

0

5

Cub Cadet 710-0276

Carriage Screw, 5/16-18 x 1.00"

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0376

Hex Head Screw, 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 911-0310

Clevis Pin, .50" Dia. x .78 Lg.
(Superseded to 711-0310)

$

$

Not available

8

Cub Cadet 964-04090A

Grass-bag Assembly

$101.99

$

In Stock, Qty 17

0

9

Cub Cadet 683-04461A-0637

Twin Bag Support Assembly
(Superseded to 683-04461B-0637)

$220.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 683-04519A-0637

Vertical Support Bracket
(Superseded to 683-04519B-0637)

$151.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 711-04988

Cover Hinge Pin

$13.99

$

In Stock, only 2 left!

0

12

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 735-0246A

End Plug

$6.49

$

In Stock, Qty 12

0

14

Cub Cadet 720-04122

Wing Knob

$7.49

$

In Stock, Qty 20+

0

15

Cub Cadet 631-05103

Discharge Chute Elbow

$234.99

$

In Stock, only 2 left!

0

16

Cub Cadet 783-06168-0637

Universal Mounting Bracket

$149.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 689-00204A

RZT Mounting Assembly

Note: (Incl. Ref No. 16, 17, 30 & 31)

$202.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 914-04023

Cotter Pin, .080 x 1.5625 Internal
(Superseded to 714-04023)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 719-04271A

RZT Bagger Weight

$267.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 726-3046

Ratchet Clip, .250

$4.49

$

In Stock, Qty 13

0

21

Cub Cadet 731-06611

Bagger Chute Adapter, 7 In.

$49.99

$

In Stock, only 1 left!

0

22

Cub Cadet 712-04065

Flange Lock Nut, 3/8 - 16

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 721-04388

Adhesive Strip

$7.49

$

In Stock, only 2 left!

0

24

Cub Cadet 735-05020

Wide Adhesive Rubber Strip

$36.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 726-05019

Adj. Hose Clamp

$23.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 764-05023

Flexible Chute Extension
(Superseded to 764-05023A)

$117.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 731-10133

Adapter 50"/54" (Stamped Decks)

$19.99

$

In Stock, only 2 left!

0

28

Cub Cadet 710-0859

Hex Bolt, 3/8 - 16 x 2.50

Note: (* RZT-L Models Only!)

$7.49

$

In Stock, Qty 20+

0

29

Cub Cadet 710-3056

Hex Bolt, 5/16 - 18 x 2.50

Note: (* RZT-L Models Only!)

$10.99

$

In Stock, only 1 left!

0

30

Cub Cadet 703-09197-0637

Weight Mounting Bracket, LH

Note: (* RZT-L Models Only!)

$44.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 703-09193-0637

Weight Mounting Bracket, RH

Note: (* RZT-L Models Only!)

$44.99

$

Usually ships in 3-6 days
