19A70045 (19A70045100) - Cub Cadet Power Deck Lift Kit General Assembly Version 2 Parts Diagram

Power Deck Lift Kit

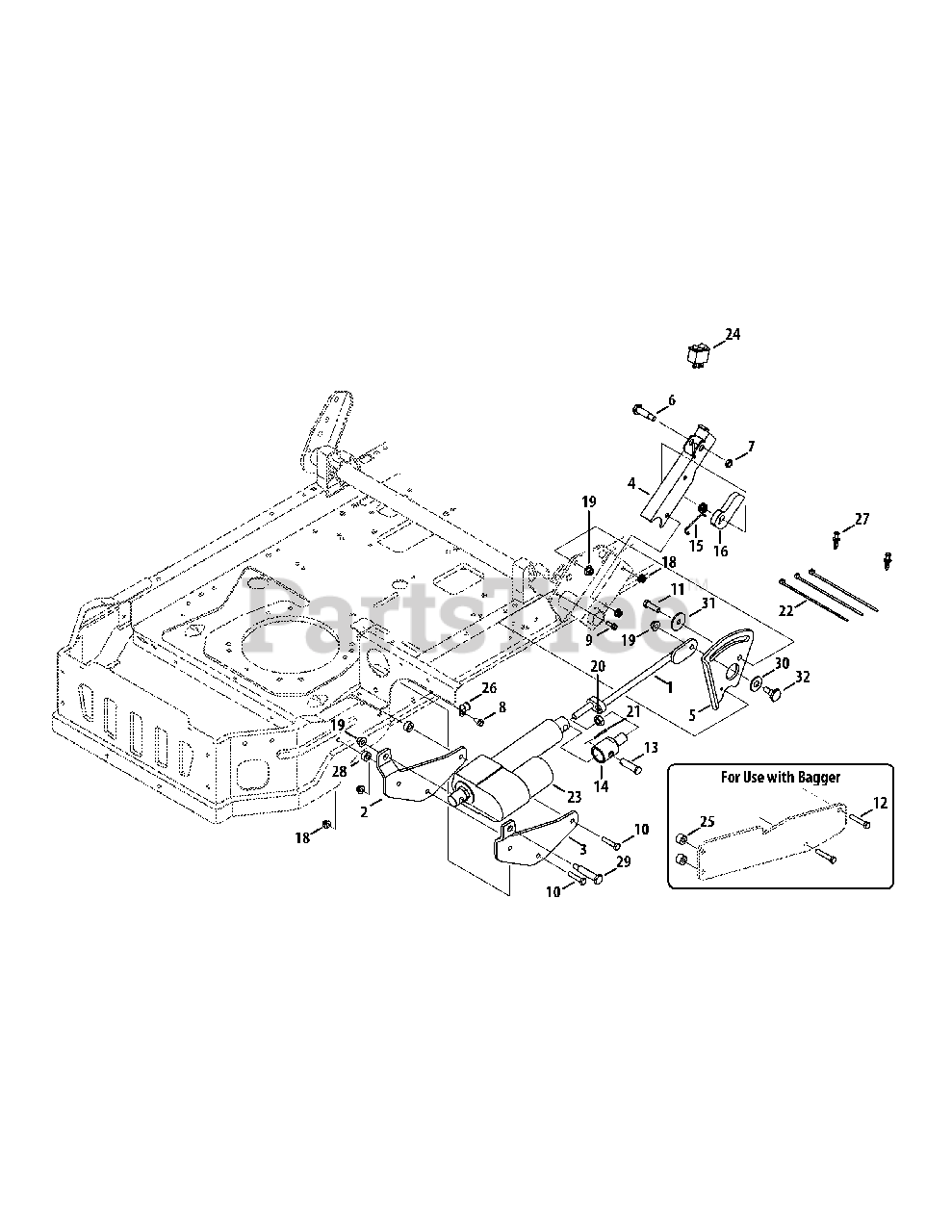

General Assembly Version 2 Parts Diagram

  • Title

1

Cub Cadet 603-05103

Link Assembly, Lift

$224.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-09485-0637

Bracket, Mounting, Inner

$83.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-09487-0637

Bracket, Mounting, Outer

$83.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-09520A-0637

Handle, Lift, Electric

$71.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-09525-0637

Bracket, Lift, Electric, RH

$63.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 738-1014

Screw, Shoulder, .50 x 1.25 x 3/8-16

$3.99

$

In Stock, only 2 left!

0

7

Cub Cadet 712-0266A

Lock Nut, Jam, 3/8-16

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-04484

Screw, Self-tapping, 5/16-18, .750

$3.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0642

Screw, Self-tapping, 1/4-20, .750

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0805

Hex Screw, 5/16-18, 1.50
(Superseded to 710-0805A)

$3.99

$

In Stock, only 2 left!

0

11

Cub Cadet 710-3005

Hex Screw, 3/8-16, 1.25

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3180

Hex Screw, 5/16-18, 1.75

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 911-0231

Pin, Clevis, .50 Dia x 1.59
(Superseded to 711-0231A)

$5.99

$

In Stock, Qty 6

0

14

Cub Cadet 711-06168

Coupling, Lift, Actuator

$348.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 732-04723

Torsion Spring

$5.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 703-09894-0637

Lift Latch

$55.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16, Nylon

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 912-3048

Nut, Jam, 1/2-13, Gr5
(Superseded to 712-3048)

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 914-0115

Pin, Cotter, 1/8 x 1.0
(Superseded to 714-0115)

$3.49

$

In Stock, Qty 20+

0

22

Cub Cadet 725-0157

Cable Tie, 7.4

$3.49

$

In Stock, only 2 left!

0

23

Cub Cadet 725-04500

Actuator

$1370.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 725-04704

Switch

$61.99

$

In Stock, Qty 7

0

25

Cub Cadet 750-0890

Spacer, .325 x .75 x .520

$6.49

$

In Stock, Qty 8

0

26

Cub Cadet 726-0272

Clamp

$6.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 728-0199

Rivet, Plastic

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 750-0258

Spacer, .315 x .75 x .375

$10.99

$

In Stock, Qty 13

0

29

Cub Cadet 938-0527

Screw, Shoulder, .498 x 2.045

$7.99

$

In Stock, only 2 left!

0

30

Cub Cadet 936-0179

Washer, Flat, .531 x 1.25 x .100
(Superseded to 736-0179)

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 936-0227

Washer, Flat, .390 x 1.50 x .134
(Superseded to 736-0227)

$

$

Not available

32

Cub Cadet 938-0507B

Screw, Shoulder, .500 x .434
(Superseded to 738-0507B)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 925-06136

Harness, Electric Deck Lift

Note: (not shown)

$133.99

$

Usually ships in 3-6 days

0

Cub Cadet 712-0271

Nut, Sems, 1/4-20

Note: (not shown, Used to mount Wire Harness to Battery Terminals)

$4.49

$

In Stock, Qty 20+

0
