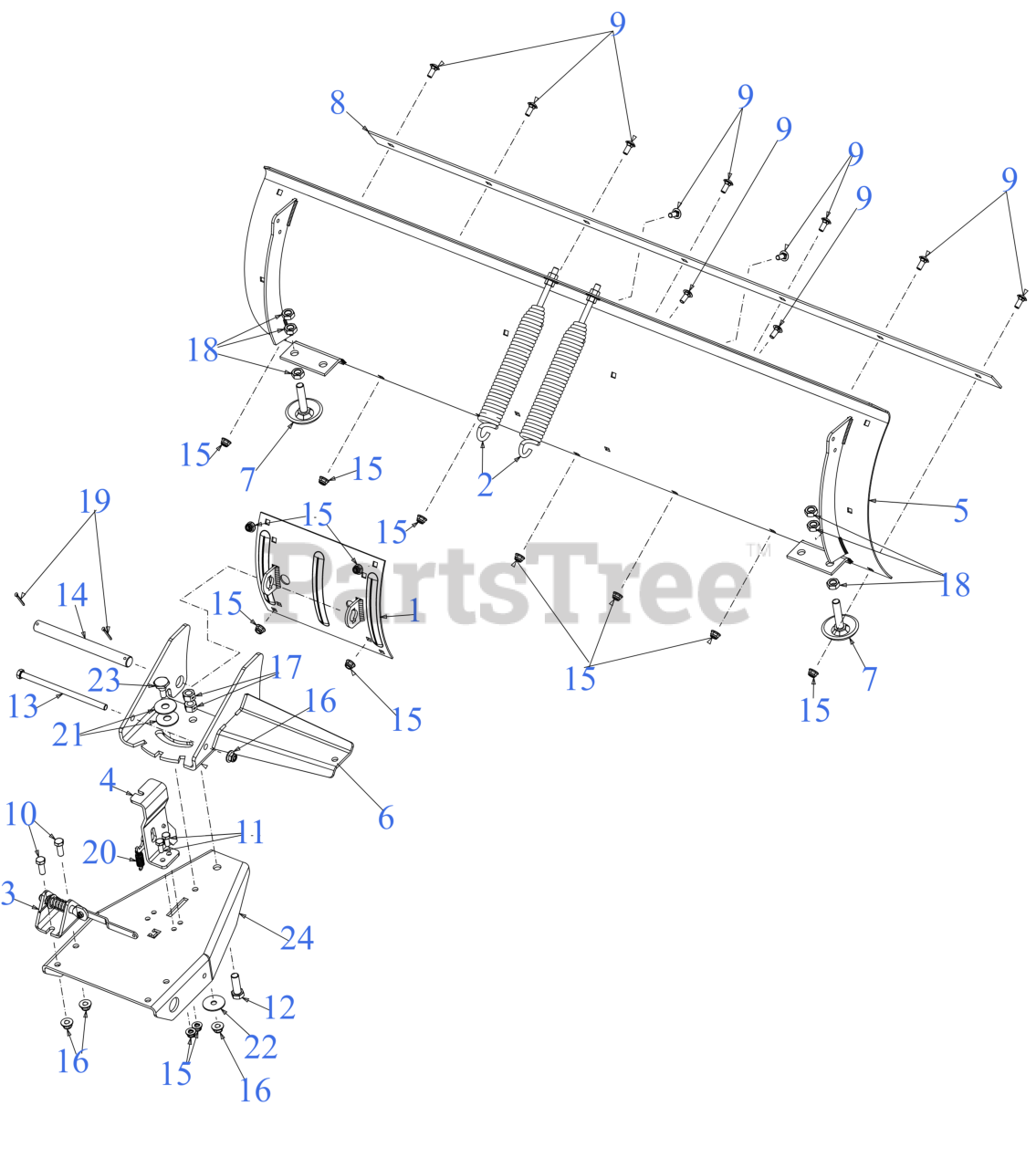

19A70063 (19A70063OEM) - Cub Cadet 52" Plow Kit Blade Assembly Parts Diagram

52" Plow Kit

Blade Assembly Parts Diagram

  • Title
1

Cub Cadet 603-05373

REINFORCEMENT PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

$68.86

$

Usually ships in 5-10 days

0

2

Cub Cadet 989-00662

TRIP SPRING KIT

$27.53

$

In Stock, only 1 left!

0

2

Cub Cadet 712-04102

HEX NUT 3/8-16

Note: (Not Shown)

$5.05

$

Usually ships in 5-10 days

0

2

Cub Cadet 736-04006

FLAT WASHER .444x1.000x.057

Note: (Not Shown)

$3.32

$

Usually ships in 5-10 days

0

2

Cub Cadet 710-3198

SCREW 3/8-16X3.5 GR5

Note: (Not Shown)

$7.40

$

In Stock, only 1 left!

0

3

Cub Cadet 989-00663A

LOCKING ASSEMBLY

$47.16

$

Usually ships in 5-10 days

0

3

Cub Cadet 791-182568

WASH, FLAT .480X.1

Note: (Not Shown)

$3.37

$

Usually ships in 5-10 days

0

3

Cub Cadet 712-0161

HEX NUT

Note: (Not Shown)

$3.67

$

In Stock, Qty 20+

0

3

Cub Cadet 714-3004

COTTER PIN 3/32 x 1.25

Note: (Not Shown)

$3.86

$

In Stock, Qty 20+

0

3

Cub Cadet 732-05216

COMPRESSION SPRING .772 OD x 1.95

Note: (Not Shown)

$8.48

$

Usually ships in 5-10 days

0

3

Cub Cadet 736-0272

FLAT WASHER .510 x .995
(Superseded to 936-0272)

Note: (Not Shown)

$4.02

$

In Stock, Qty 20+

0

3

Cub Cadet 747-06383A

LIFT LOCK ROD

Note: (Not Shown)

$23.77

$

Usually ships in 5-10 days

0

4

LOCK LEVER ASSEMBLY

$

$

Not available

5

Cub Cadet 689-02099

52" BLADE

Note: *CHOOSE COLOR WHEN ORDERING*

$281.15

$

Usually ships in 5-10 days

0

6

Cub Cadet 689-02319

PIVOT PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

$118.94

$

Usually ships in 5-10 days

0

7

Cub Cadet 703-0650

BLADE SKID SHOE

Variations

Cub Cadet 703-0650-0637

Snow Skid Shoe - POWDER BLACK (0637)

$39.95

$

In Stock, Qty 11

0

$39.95

$

In Stock, Qty 11

0

8

Cub Cadet 703-08866

SHAVE PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-08866-0637

PLATE-BLADE SHAVE - POWDER BLACK (0637)

$116.76

$

Usually ships in 5-10 days

0

Cub Cadet 703-08866-4021

PLATE-BLADE SHAVE - CUB YELLOW 2 (4021)

$116.76

$

Usually ships in 5-10 days

0

$101.58

$

Usually ships in 5-10 days

0

9

Cub Cadet 710-0451

CARRIAGE BOLT 5/16-18 x .75

$3.26

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0514

SCREW 3/8-16 x 1 GR5

$3.46

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3008

SCREW 5/16-18 x .75 GR5

$3.43

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3181

SCREW 1/2-13X1.50 GR5

$5.53

$

In Stock, only 1 left!

0

13

Cub Cadet 710-3261

SCREW 3/8-16 x 7.00 GR5

$11.47

$

In Stock, Qty 19

0

14

Cub Cadet 711-06173

PIVOT SHAFT

$11.31

$

Usually ships in 5-10 days

0

15

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.25

$

In Stock, Qty 20+

0

$3.35

$

In Stock, Qty 20+

0

17

Cub Cadet 712-3022

HEX NUT CTR LK 1/2-13

$3.30

$

In Stock, Qty 20+

0

18

Cub Cadet 712-3048

HEX NUT
(Superseded to 912-3048)

$3.76

$

In Stock, Qty 20+

0

19

Cub Cadet 714-0470

COTTER PIN
(Superseded to 914-0470)

$3.56

$

In Stock, Qty 20+

0

20

Cub Cadet 732-04345

EXTENSION SPRING

$8.37

$

In Stock, only 2 left!

0

21

Cub Cadet 736-0208

WASHER .51 x 1.5 x .07
(Superseded to 936-0208)

$

$

Not available

22

Cub Cadet 736-0234

FLAT WASHER .390 ID x 1.50 OD x .075

$4.87

$

Usually ships in 5-10 days

0

23

Cub Cadet 738-0507B

SHOULDER SCREW

$3.57

$

In Stock, Qty 20+

0

24

Cub Cadet 789-00471

BLADE MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 789-00471-0637

BLACK BLADE MOUNTING - POWDER BLACK (0637)

$97.19

$

Usually ships in 5-10 days

0

$84.55

$

Usually ships in 5-10 days

0
