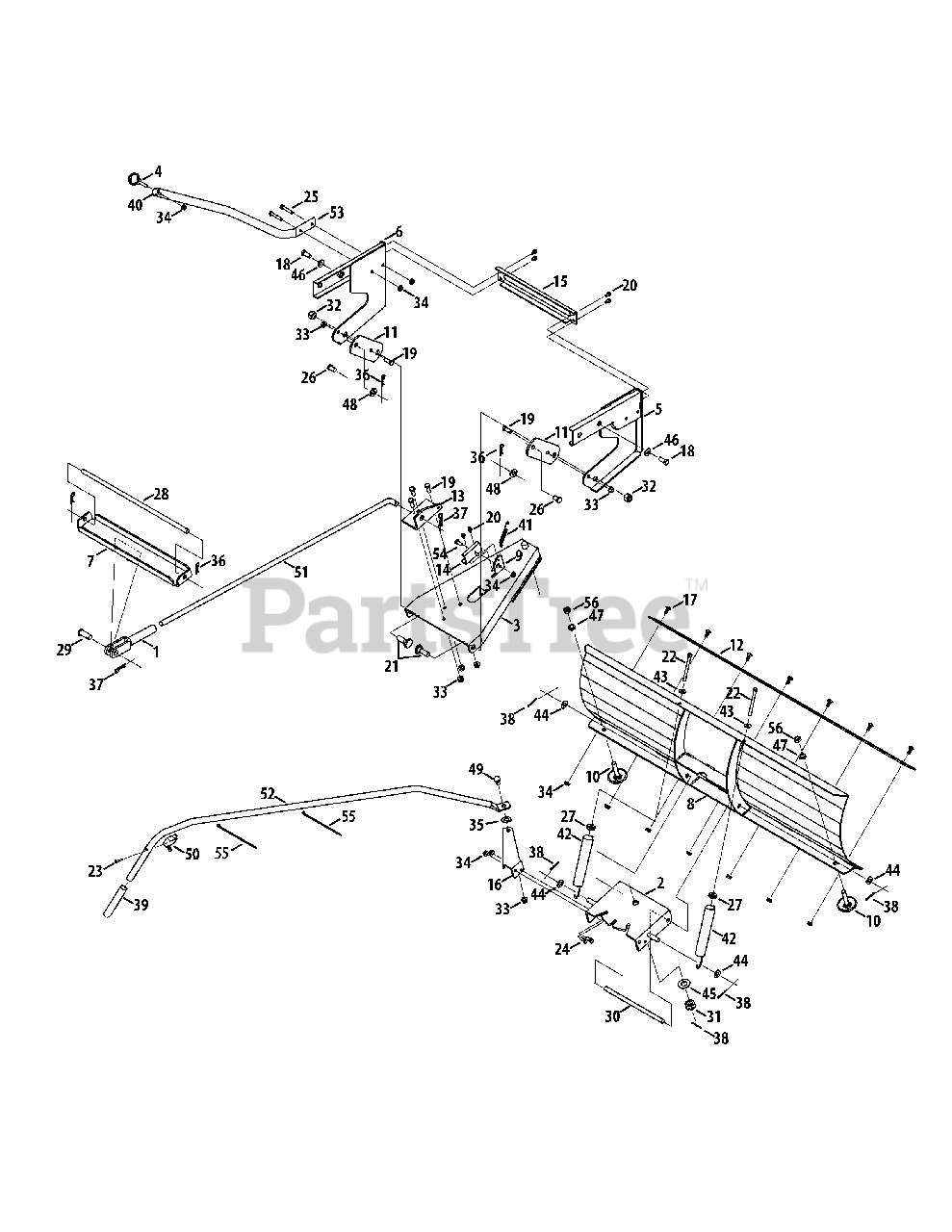

19B40022 (19B40022100) - Cub Cadet 46" Snow Blade att2 General Assembly Parts Diagram

46" Snow Blade

General Assembly Parts Diagram

  • Title

1

Cub Cadet 10991-0637

Adjustment Clevis Assembly

$146.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-0266-0637

Blade Pivot Assembly

$153.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-0267A-0637

Blade Frame Assembly

$375.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 603-0297

Eyebolt Assembly

$15.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 603-04872-0637

RH Hitch Bracket Assembly

$134.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 603-04874-0637

LH Hitch Bracket Assembly

$134.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 603-04888-0637

Lift Bracket Assembly

$81.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 603-04890-0637

Blade Assembly, 46"
(Superseded to 603-04890A-0637)

$632.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-09000A

Blade Lock Plate Assembly

$44.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-0650

Skid Shoe Assembly

Variations

Cub Cadet 703-0650-0637

Snow Skid Shoe - POWDER BLACK (0637)

$49.99

$

In Stock, only 4 left!

0

$49.99

$

In Stock, only 4 left!

0

11

Cub Cadet 703-08435-0637

Blade Link Bracket

$28.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-08479-0637

Shave Plate, 46"

$140.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-2679-0637

Front Lift Bracket

$24.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 703-2693-0637

Pivot Bracket

$20.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 703-2694-0637

Snowblade Support Bracket

$88.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 603-05175-0637

Blade Adjustment Arm

$73.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-0451

Carriage Bolt, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 710-0505

Hex Screw, 7/16-14 x 1.00

$7.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-0514

Hex Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 938-0744A

Shoulder Screw, 1/2-13 x .625 x .36

$12.99

$

In Stock, only 4 left!

0

22

Cub Cadet 710-1207

Hex Screw, 5/16-18 x 3.50

$7.49

$

In Stock, only 4 left!

0

23

Cub Cadet 710-1233

Machine Screw, #10-24 x 1.375

$4.99

$

In Stock, Qty 9

0

24

Cub Cadet 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 710-3180

Hex Screw, 5/16-18 x 1.75

$5.99

$

In Stock, Qty 20+

0

26

Cub Cadet 911-0332

Clevis Pin, .50 x .78

$17.99

$

In Stock, Qty 20+

0

27

Cub Cadet 711-0509

Spring Insert

$63.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 711-05583

Rod, .50 x 18.61

$42.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 711-0654

Clevis Pin

$17.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 711-3402A

Rod, .50 x 10.428

$39.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 712-0359

Slotted Nut, 3/4-16

$12.99

$

In Stock, only 2 left!

0

32

Cub Cadet 712-3083

Nut, 1/2-13, Hex Lock Nylon

$4.99

$

In Stock, Qty 20+

0

33

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 936-0414

Flat Teflon Washer, .570 x 1.12 x .062
(Superseded to 736-0414)

$

$

Not available

36

Cub Cadet 914-0145

Click Pin, .092 x 1.64
(Superseded to 714-0145)

$5.49

$

In Stock, Qty 20+

0

37

Cub Cadet 714-0147

Cotter Pin, .125 x 1.75

$5.49

$

In Stock, Qty 6

0

38

Cub Cadet 914-0470

Cotter Pin, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 15

0

39

Cub Cadet 720-0283

Foam Grip

$8.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 735-0246A

End Plug

$6.49

$

In Stock, Qty 12

0

41

Cub Cadet 932-0320

Extension Spring, .38 x 3.25

$10.99

$

In Stock, only 3 left!

0

42

Cub Cadet 732-3123

Extension Spring, 1.25 x 6.7

$29.99

$

In Stock, only 4 left!

0

43

Cub Cadet 936-0159

Flat Washer, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

44

Cub Cadet 936-0160

Flat Washer, .530 x .930 x .050

$4.49

$

In Stock, only 1 left!

0

45

Cub Cadet 736-0315

Flat Washer, .760 x 1.50 x .120

$7.49

$

In Stock, only 2 left!

0

46

Cub Cadet 736-0407

Bell Washer, .45 x 1.00 x .062

$4.49

$

In Stock, only 3 left!

0

47

Cub Cadet 936-0921

Lock Washer, 1/2
(Superseded to 736-0921)

$4.99

$

In Stock, Qty 17

0

48

Cub Cadet 736-3019

Flat Washer, .531 x 1.062 x .134

$6.49

$

In Stock, Qty 8

0

49

Cub Cadet 738-0143

SHOULDER SCREW .498 DIA x .340

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 946-04794

Blade Release Cable & Lever

$56.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 747-05499

Lift Rod

$100.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 749-04845-0637

Blade Adjustment Handle

$167.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 749-3042A-0637

Handle Support Tube

$91.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 738-04320

Shoulder Screw, 5/16-18 x .405 x .435

$5.99

$

In Stock, only 3 left!

0

55

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

56

Cub Cadet 912-3048

Nut, 1/2-13, Jam
(Superseded to 712-3048)

$4.99

$

In Stock, Qty 20+

0
