19B40024 (19B40024OEM) - Cub Cadet 42" 3X Snow Thrower Attachment (2023) Auger Gearbox Parts Diagram

42" 3X Snow Thrower Attachment

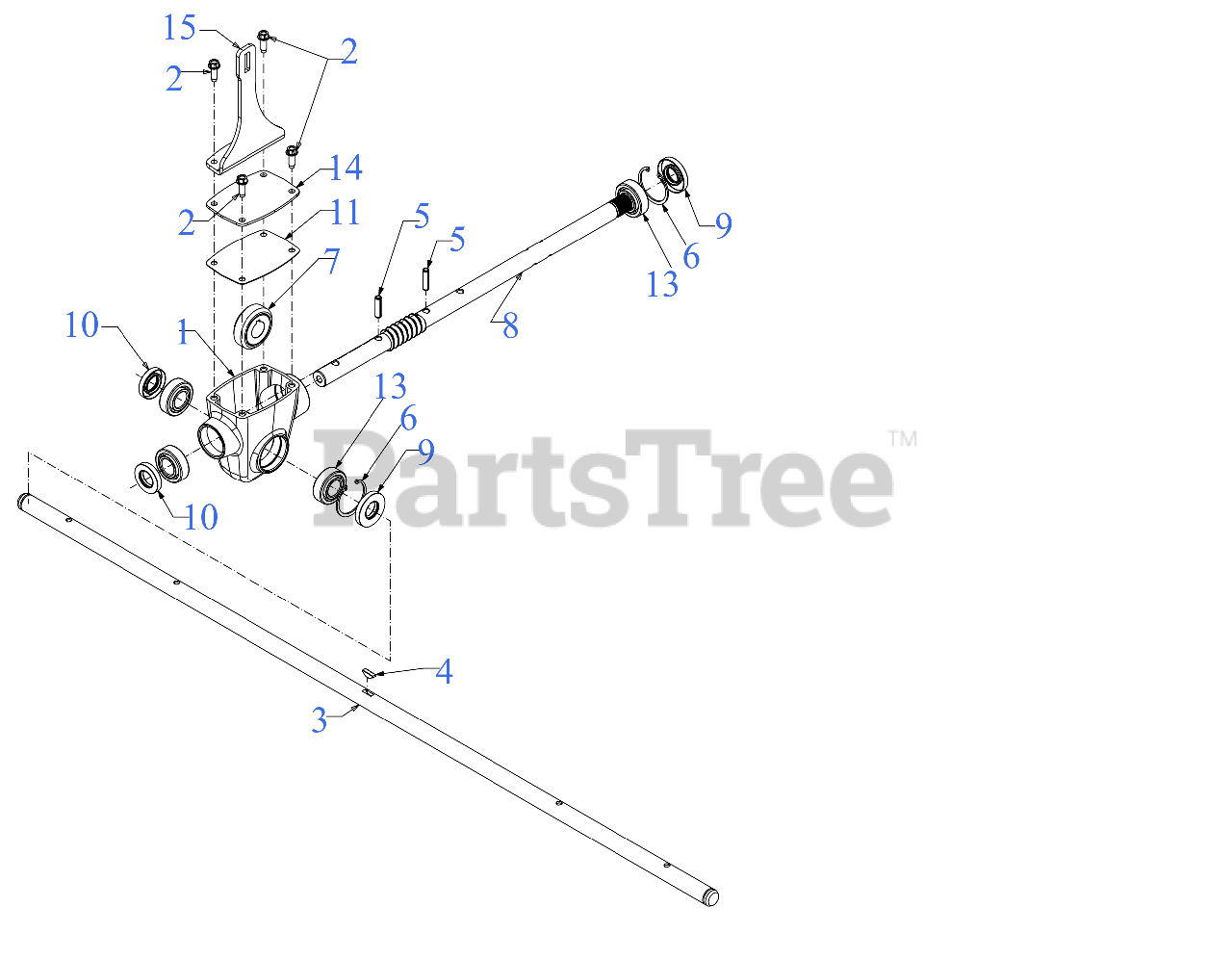

Auger Gearbox Parts Diagram

  • Title

1

Cub Cadet 919-05029

AUGER HOUSING GEARBOX

$89.99

$

In Stock, only 3 left!

0

2

Cub Cadet 710-0642

SCREW 1/4-20 x .750

$4.99

$

In Stock, Qty 20+

0

3

Cub Cadet 711-06278

AUGER AXLE

$222.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 914-0161

KEY 3/16 x 5/8 HI-PRO

$4.99

$

In Stock, Qty 18

0

5

Cub Cadet 715-04034

ROLL PIN

$7.49

$

In Stock, only 2 left!

0

6

Cub Cadet 716-05001

SNAP RING

$3.49

$

In Stock, Qty 15

0

7

Cub Cadet 917-04861

WORM GEAR 20T

$45.99

$

In Stock, Qty 20+

0

8

Cub Cadet 917-05236

WORM SHAFT

$251.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 721-04612

OIL SEAL

$5.99

$

In Stock, Qty 20+

0

10

Cub Cadet 721-04613

OIL SEAL

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 921-04614A

GEARBOX COVER GASKET

$5.99

$

In Stock, Qty 6

0

13

Cub Cadet 941-05042

BALL BEARING

$12.99

$

In Stock, only 2 left!

0

14

Cub Cadet 783-08281

GEARBOX COVER

$8.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 790-00835

GEARBOX SUPPORT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 790-00835-0637

GEARBOX SUPPORT BR - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

Cub Cadet 918-07340

42" AUGER GEARBOX ASSEMBLY

$757.99

$

Usually ships in 3-6 days

0
