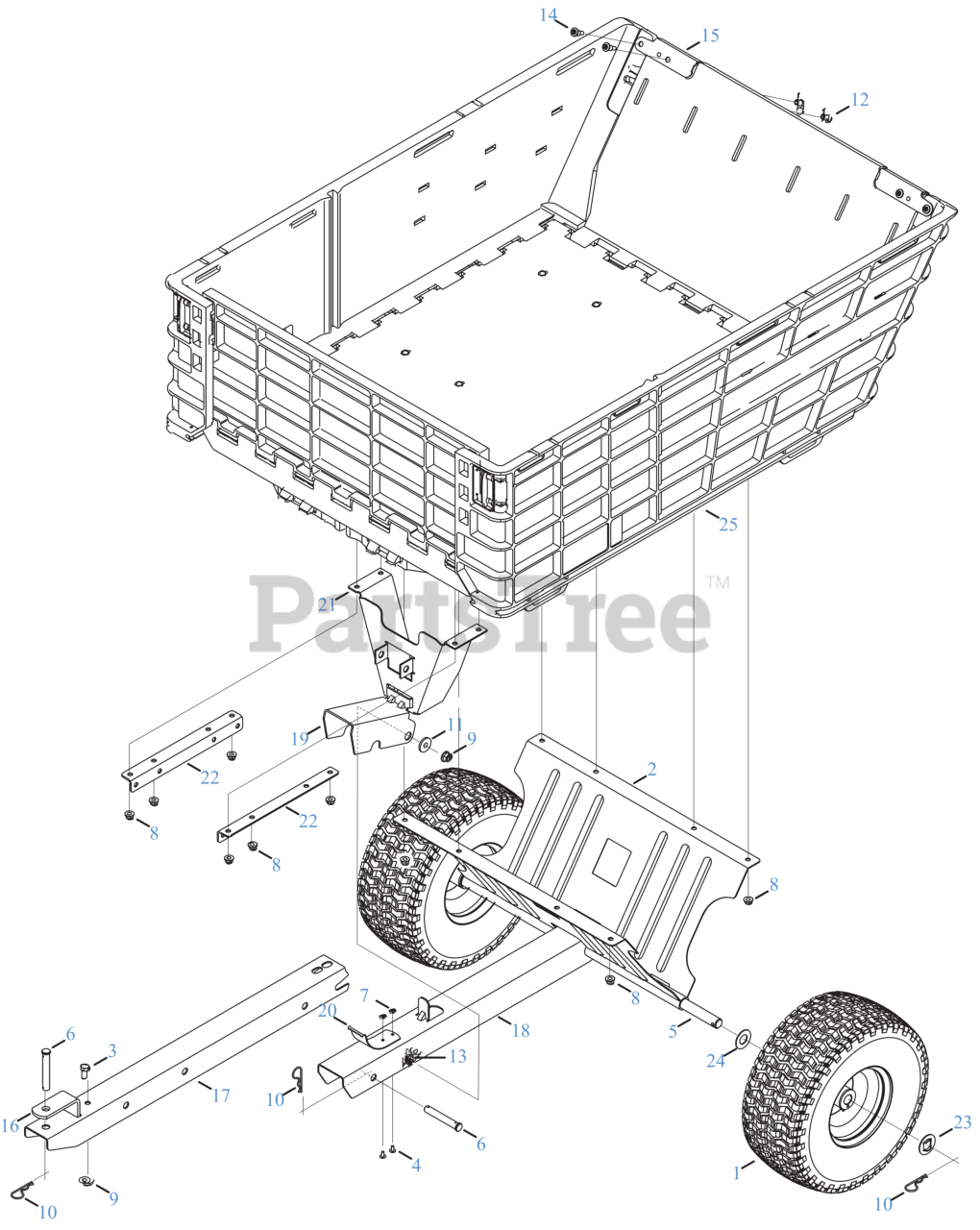

19B40026 (19B40026OEM) - Cub Cadet EZ-Stow Hauler (2016) General Assembly Parts Diagram

EZ-Stow Hauler

General Assembly Parts Diagram

  • Title

1

Cub Cadet 634-04732

WHEEL ASSEMBLY (13 x 5 x 6)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 634-04732-0911

Wheel, 13" X 5X6 SQ - Carlisle Gray (0911)

$135.99

$

In Stock, Qty 7

0

$135.99

$

In Stock, Qty 7

0

2

Cub Cadet 689-00389

AXLE SUPPORT BRACKET ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 689-00389-0637

BRACKET ASM-AXLE S - POWDER BLACK (0637)

$136.99

$

Usually ships in 3-6 days

0

$118.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0216

HEX SCREW 3/8-16 x .75

$3.99

$

In Stock, Qty 17

0

4

Cub Cadet 710-04838

SCREW-10 x .393

$4.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 711-06444

AXLE SHAFT .75 x 29.1

$91.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 711-06472

CLEVIS PIN: 0.5 x 3.25

$5.99

$

In Stock, only 2 left!

0

7

Cub Cadet 712-0161

HEX NUT

$4.49

$

In Stock, Qty 9

0

8

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 714-3020

INTERNAL COTTER PIN

$3.99

$

In Stock, Qty 9

0

11

Cub Cadet 938-0347

SHOULDER SPACER

$9.49

$

In Stock, Qty 15

0

12

Cub Cadet 738-04240

SHOULDER NUT .375 DIA x .5

$6.49

$

In Stock, Qty 12

0

13

Cub Cadet 738-05140

SHOULDER SCREW 3/8-16

$5.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 738-05145

SHOULDER SCREW: 1/4-20

$3.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 789-00231

DOOR LATCH

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 789-00231-0662

LATCH-DOOR - OYSTER GRAY (0662)

$10.99

$

Usually ships in 3-6 days

0

Cub Cadet 789-00231-4021

USE 789-00231A-4021 LATCH-DOO - CUB YELLOW 2 (4021)

$10.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 789-00233A

TOUNGE BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 789-00233A-0637

Tounge Bracket - POWDER BLACK (0637)

$21.99

$

In Stock, Qty 5

0

$21.99

$

In Stock, Qty 5

0

17

Cub Cadet 789-00234A

TOUNGE BRACKET
(Superseded to 989-00234A)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 789-00234A-0637

Tongue Extension Bracket - POWDER BLACK (0637)

$75.99

$

In Stock, only 1 left!

0

$75.99

$

In Stock, only 1 left!

0

18

Cub Cadet 789-00235A

TOUNGE BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 789-00235A-0637

BRACKET-TOUNGE FIX - POWDER BLACK (0637)

$77.99

$

Usually ships in 3-6 days

0

$62.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 789-00237A

DUMP RELEASE PEDAL

Note: *CHOOSE COLOR WHEN ORDERING*

$35.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 789-00239

RELEASE BRACKET

$8.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 789-00240A

LOCK BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 789-00240A-0637

BRACKET-LOCK - POWDER BLACK (0637)

$72.99

$

Usually ships in 3-6 days

0

$58.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 789-00257

BRACKET SUPPORT

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 789-00257-0637

BRACKET SUPPORT - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 736-04228B

FLAT WASHER .781 ID x 1.59 OD

$4.99

$

In Stock, Qty 20+

0

24

Cub Cadet 736-0351

THRUST WASHER

$3.99

$

In Stock, Qty 20+

0

25

Bed Assembly

Note: See Bed Assembly page

$

$

Not available
