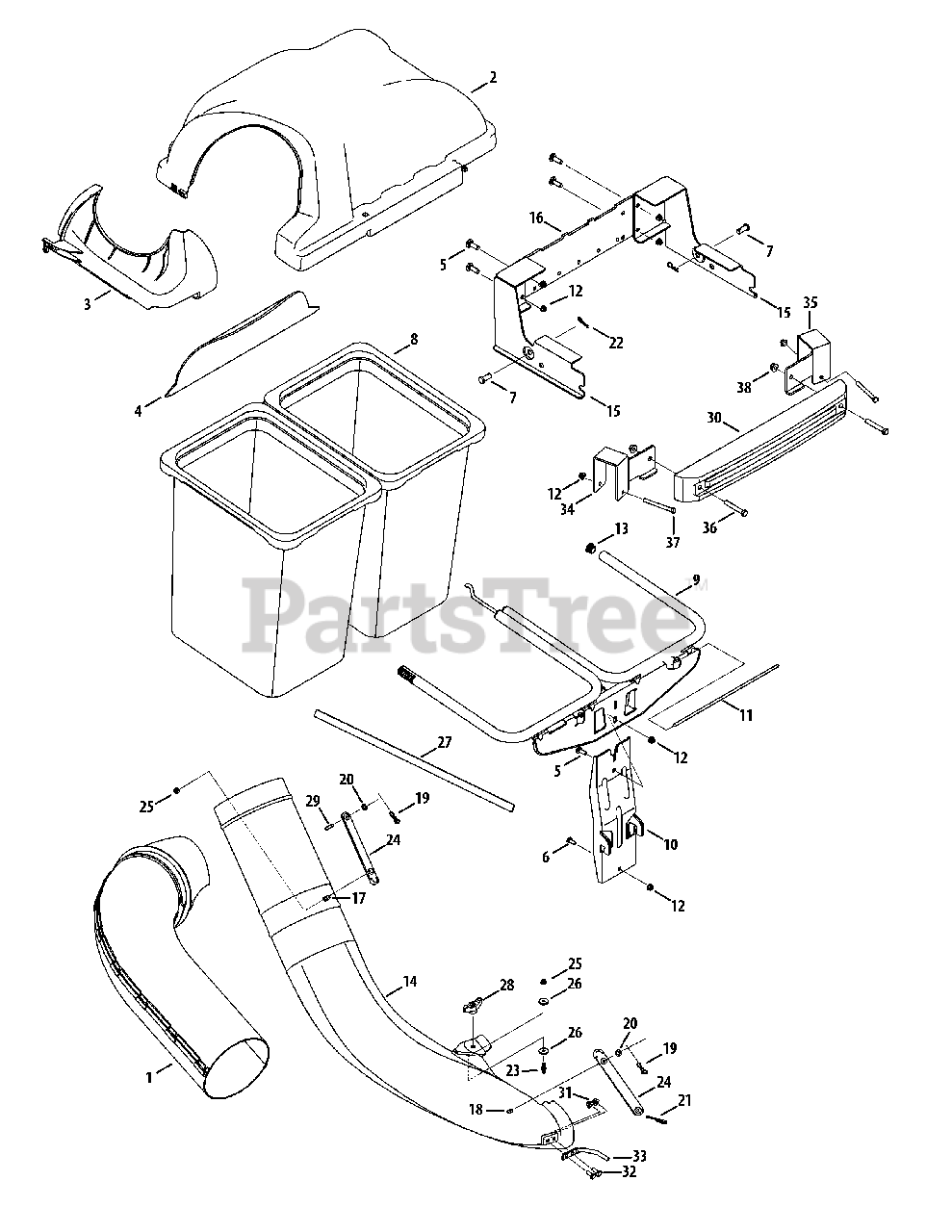

19B70020 (19B70020100) - Cub Cadet Twin Rear Bagger General Assembly Parts Diagram

Twin Rear Bagger

General Assembly Parts Diagram

  • Title
1

Cub Cadet 931-04295A

Upper Chute Assembly
(Superseded to 931-04295B)

$118.05

$

Usually ships in 5-10 days

0

2

Cub Cadet 931-04292

Twin Bagger Cover Assembly

$131.00

$

Usually ships in 5-10 days

0

3

Cub Cadet 731-06497

Upper Chute Support

$29.42

$

In Stock, Qty 12

0

4

Cub Cadet 731-06504

Bagger Cover Screen

$14.27

$

In Stock, only 3 left!

0

5

Cub Cadet 710-0276

Carriage Screw, 5/16-18 x 1.00"

$3.35

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0376

Hex Head Screw, 5/16-18 x 1.00"

$3.34

$

In Stock, Qty 20+

0

7

Cub Cadet 911-0310

Clevis Pin, .50" Dia. x 1.18

$

$

Not available

8

Cub Cadet 964-04090A

Grass-bag Assembly
(Superseded to 964-05104)

$85.11

$

In Stock, Qty 20+

0

9

Cub Cadet 683-04461A-0637

Twin Bag Support Assembly

$168.27

$

In Stock, only 3 left!

0

10

Cub Cadet 683-04519A-0637

Vertical Support Bracket
(Superseded to 683-04519B-0637)

$115.94

$

In Stock, only 1 left!

0

11

Cub Cadet 711-04988

Cover Hinge Pin

$10.21

$

In Stock, only 3 left!

0

12

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.25

$

In Stock, Qty 20+

0

13

$4.61

$

In Stock, Qty 11

0

14

Cub Cadet 731-09329

Chute, Lower
(Superseded to 731-09329A)

$108.45

$

Usually ships in 5-10 days

0

15

Cub Cadet 689-00204A

RZT Hitch Bracket Kit

Note: (Includes RH, LH & Cross Bracket)

$154.87

$

Usually ships in 5-10 days

0

16

Cub Cadet 783-06168-0637

Universal Cross Bracket

$113.86

$

Usually ships in 5-10 days

0

17

Cub Cadet 911-04069

Grass-catcher Pin

$7.13

$

In Stock, Qty 20+

0

18

Cub Cadet 711-05063

Clevis Pin 5/16 x 3/4

$2.95

$

In Stock, Qty 20+

0

19

Cub Cadet 714-04040

Bow-Tie Cotter Pin

$1.17

$

In Stock, Qty 20+

0

20

Cub Cadet 736-0204

Flat Washer, .344 x .62 x .033

$3.54

$

In Stock, Qty 20+

0

21

Cub Cadet 732-04510A

Torsion Spring Hook

$3.86

$

In Stock, Qty 20+

0

22

Cub Cadet 914-04023

Cotter Pin, .080 x 1.5625 Internal

$3.56

$

In Stock, Qty 20+

0

23

Cub Cadet 711-05049

Grass-catcher Pin

$6.98

$

In Stock, Qty 20+

0

24

Cub Cadet 723-04008A

Chute Strap

$8.09

$

In Stock, Qty 20+

0

25

Cub Cadet 912-3027

Flange Lock Nut, 1/4-20

$3.51

$

In Stock, Qty 20+

0

26

Cub Cadet 936-0176

Flat Washer

$3.65

$

In Stock, Qty 20+

0

27

Cub Cadet 721-04388

Foam Strip

$5.68

$

In Stock, Qty 11

0

28

Cub Cadet 720-04122

Wing Knob,

$5.40

$

In Stock, Qty 20+

0

29

Cub Cadet 711-04214

Pin, .25 Dia. x .9375 Lg.

$5.02

$

Usually ships in 5-10 days

0

30

Cub Cadet 719-04271A

Weight Bar, Bagger

$224.55

$

Usually ships in 5-10 days

0

$3.32

$

In Stock, Qty 20+

0

32

Cub Cadet 710-0751

Screw 1/4-20 x .62

$3.31

$

In Stock, Qty 20+

0

33

Cub Cadet 747-06043

Chute Rod, Lower

$6.76

$

In Stock, Qty 7

0

34

Cub Cadet 703-09193-0637

Right Mounting Bracket

$34.34

$

Usually ships in 5-10 days

0

35

Cub Cadet 703-09197-0637

Left Mounting Bracket

$34.34

$

Usually ships in 5-10 days

0

36

Cub Cadet 710-0859

Hex Head Screw, 3/8-16 x 2.50

$5.52

$

In Stock, Qty 20+

0

37

Cub Cadet 710-3056

Hex Head Screw, 5/16-18 x 3-1/4

$8.13

$

Usually ships in 5-10 days

0

38

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.35

$

In Stock, Qty 20+

0
