19B70045100 - Troy-Bilt Power Deck Lift Kit (2016) Replacement Parts Parts Diagram

Power Deck Lift Kit

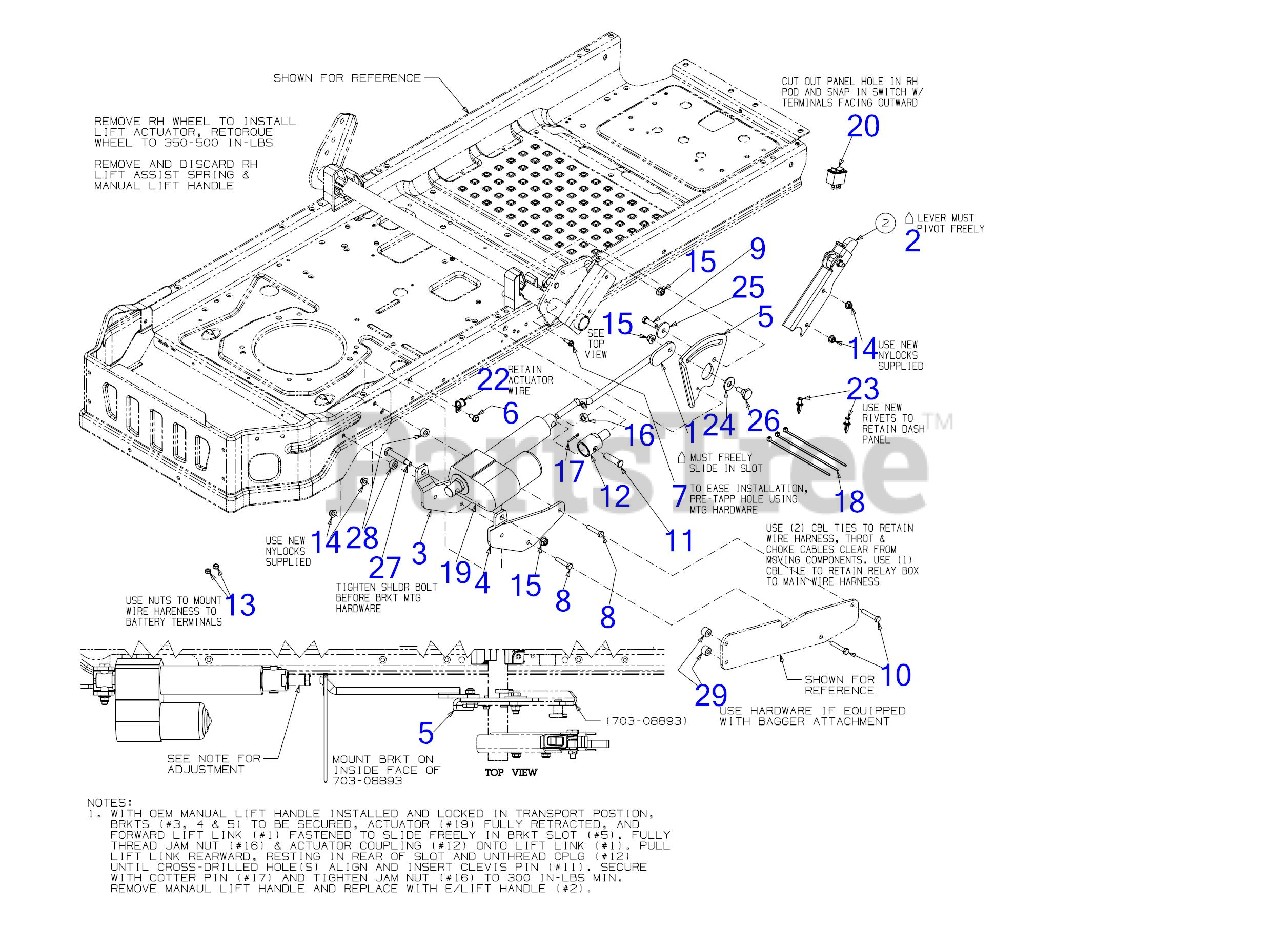

Replacement Parts Parts Diagram

  • Title

1

Troy-Bilt 603-05103

ACTUATOR LIFT LINK

$224.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 703-09520A

ELECTRIC LIFT HANDLE

Note: *CHOOSE COLOR WHEN ORDERING*

$71.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 703-09894

LIFT LATCH

Note: *CHOOSE COLOR WHEN ORDERING*

$47.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 732-04723

TORSION SPRING .75 OD x .4 LG (LH)

$5.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 712-0266A

JAM LOCK NUT

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 738-1014

SHOULDER SCREW .50

$3.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 703-09485

ACTUATOR MOUNTING BRACKET INNER

Note: *CHOOSE COLOR WHEN ORDERING*

$83.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 703-09487

ACTUATOR MOUNTING BRACKET OUTER

Note: *CHOOSE COLOR WHEN ORDERING*

$83.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 703-09525A

ELECTRIC LIFT BRACKET (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 703-09525A-0637

ELECTRIC LIFT BRACKET (RH) (POWDER BLACK) - POWDER BLACK (0637)

$63.99

$

Usually ships in 3-6 days

0

$63.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-04484

SCREW 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0642

SCREW 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0805A

SCREW 5/16-18 x 1.5 LG

$3.99

$

In Stock, Qty 8

0

9

Troy-Bilt 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-3180

SCREW 5/16-18 x 1.75 GR5

$4.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 911-0231

CLEVIS PIN .50 x 1.59
(Superseded to 711-0231A)

$5.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 711-06168

ACTUATOR COUPLING

$348.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 712-0271

SEMS NUT 1/4-20

$4.49

$

In Stock, Qty 19

0

14

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 912-3048

HEX NUT
(Superseded to 712-3048)

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 914-0115

COTTER PIN-1/8 D
(Superseded to 714-0115)

$3.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 725-0157

7" CABLE TIE

$3.49

$

In Stock, only 4 left!

0

19

Troy-Bilt 725-04500

ACTUATOR LIFT

$1370.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 725-04704

PLOW LIFT SWITCH

$61.99

$

In Stock, Qty 7

0

22

Troy-Bilt 726-0272

CLAMP

$6.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 728-0199

PLASTIC RIVET

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 936-0179

FLAT WASHER
(Superseded to 736-0179)

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 936-0227

FLAT WASHER .390x1.500x.134
(Superseded to 736-0227)

$

$

Not available

26

Troy-Bilt 938-0507B

SHOULDER SCREW
(Superseded to 738-0507B)

$4.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 938-0527

SHOULDER SCREW .498 DIA x 2.045

$7.99

$

In Stock, only 2 left!

0

28

Troy-Bilt 750-0258

SPACER

$10.99

$

In Stock, Qty 11

0

29

Troy-Bilt 750-0890

SPACER

$6.49

$

In Stock, Qty 7

0

Troy-Bilt 925-06136

DECK LIFT HARNESS

Note: (Not Shown)

$133.99

$

Usually ships in 3-6 days

0
