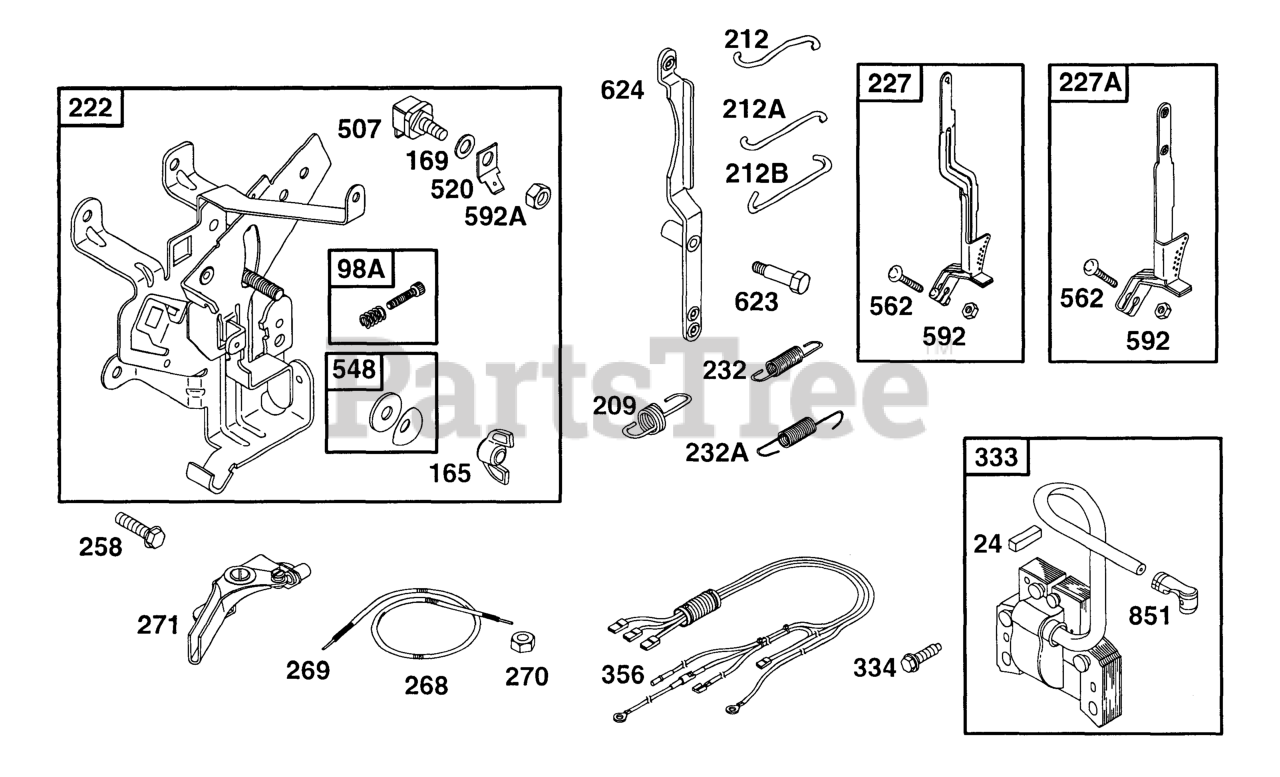

19C432-0056-01 - Briggs & Stratton Horizontal Engine Controls, Elect Parts Diagram

Horizontal Engine

Controls, Elect Parts Diagram

  • Title

24

Briggs & Stratton 222698

Key, Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

98A

Briggs & Stratton 493280

Screw-Speed Adj.

$8.99

$

Usually ships in 2-12 days

0

165

Briggs & Stratton 94692

Nut, Wing
(Superseded to 690355)

$3.49

$

Usually ships in 2-12 days

0

169

Briggs & Stratton 92791

Lockwasher, Interna
(Superseded to 691077)

$3.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 263213

Spring-Governor
(Superseded to 692136)

$10.99

$

In Stock, only 1 left!

0

212A

Briggs & Stratton 263051

Link-Throttle
(Superseded to 691854)

$12.99

$

In Stock, only 1 left!

0

212B

Briggs & Stratton 263049

Link-Throttle
(Superseded to 691853)

$9.49

$

In Stock, only 1 left!

0

212

Briggs & Stratton 262970

Link-Throttle

$

$

Not available

222

Briggs & Stratton 499106

Bracket-Control
(Superseded to 691480)

$33.99

$

Usually ships in 2-12 days

0

227A

Briggs & Stratton 496253

Lever-Governor

$27.99

$

In Stock, only 1 left!

0

227

Briggs & Stratton 496254

Lever-Governor

$

$

Not available

232A

Briggs & Stratton 263020

Spring-Link
(Superseded to 691848)

$11.99

$

Usually ships in 2-12 days

0

232

Briggs & Stratton 262959

Spring-Link
(Superseded to 691846)

$11.99

$

In Stock, only 2 left!

0

258

Briggs & Stratton 94620

Screw, Tapping Hex
(Superseded to 691693)

$3.99

$

In Stock, only 2 left!

0

258

Briggs & Stratton 94929

Screw, Hex Wash Hd
(Superseded to 691693)

$3.99

$

In Stock, only 2 left!

0

268

Briggs & Stratton 65616

Casing, Wire (72", Cut To Required Length)
(Superseded to 691025)

$

$

Not available

269

Briggs & Stratton 26633

Wire, Control (78" Cut To Required Length)
(Superseded to 691026)

$

$

Not available

270

Briggs & Stratton 63426

Nut, Hex
(Superseded to 691027)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 290568

Lever-Control
(Superseded to 691028)

$45.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 94731

Screw, Hex Wash Hea
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 496614

Wire-Stop
(Superseded to 691403)

$33.99

$

Usually ships in 2-12 days

0

507

Briggs & Stratton 398525

Terminal-Insulated
(Superseded to 691972)

$8.49

$

In Stock, Qty 6

0

520

Briggs & Stratton 93722

Terminal, Spade
(Superseded to 691084)

$6.49

$

In Stock, only 2 left!

0

548

Briggs & Stratton 495659

Washer Set

$2.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 94907

Bolt, Round Head Sq
(Superseded to 691119)

$4.49

$

In Stock, Qty 18

0

592A

Briggs & Stratton 90576

Nut, Hex (8-32)
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

592

Briggs & Stratton 231978

Nut-Hex.
(Superseded to 691251)

$3.49

$

In Stock, Qty 10

0

592

Briggs & Stratton 94726

Nut, Hex Flange
(Superseded to 691105)

$7.99

$

In Stock, only 1 left!

0

623

Briggs & Stratton 231520

Screw, Shoulder Hex (#8-32 Thread)
(Superseded to 691776)

$

$

Not available

624

Briggs & Stratton 497207

Lever-Linkage
(Superseded to 691415)

$12.99

$

In Stock, only 1 left!

0

851

Briggs & Stratton 493880

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0
