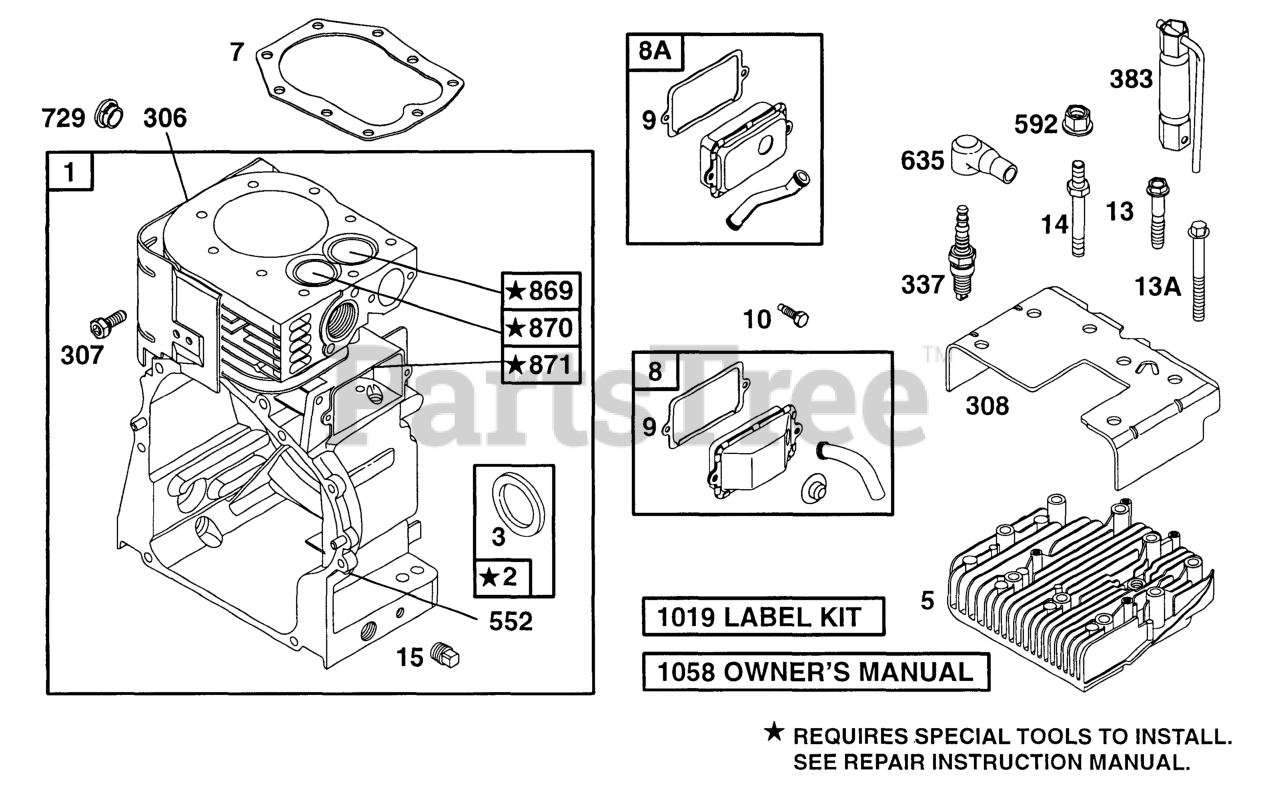

19C432-0056-01 - Briggs & Stratton Horizontal Engine Cylinder, Head Parts Diagram

Horizontal Engine

Cylinder, Head Parts Diagram

  • Title

1

Briggs & Stratton 495656

Cylinder Assy (Includes Oil Gard Cover)

$316.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 495657

Bushing/Seal Kit
(Superseded to 698340)

$22.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Included in Gasket Set-Part No. 497070.

$6.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 214347

Head-Cylinder
(Superseded to 691159)

$95.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 272163

Gasket-Cylinder Head
(Superseded to 272163S)

Note: Included in Gasket Set-Part No. 497070.

$7.99

$

In Stock, Qty 11

0

8A

Briggs & Stratton 498038

Breather Assembly

$60.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 497710

Breather Kit

$55.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 27803

Gasket-Valve Cover
(Superseded to 27803S)

Note: Included in Gasket Set-Part No. 497070.

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 94621

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

13A

Briggs & Stratton 94622

Screw, Machine Hex (3" Long)
(Superseded to 690904)

$11.99

$

In Stock, Qty 6

0

13

Briggs & Stratton 94565

Screw, Machine Hex
(Superseded to 592244)

Note: (Cylinder Head) (3 9/16" Long)

$3.49

$

In Stock, Qty 13

0

14

Briggs & Stratton 94926

Stud, Hex Washer He (3 5/16" Long)
(Superseded to 691690)

$

$

Not available

15

Briggs & Stratton 92738

Plug, Pipe Magnetic
(Superseded to 690289)

$6.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 94239

Plug, Pipe (Standar (Square Head)
(Superseded to 690946)

$5.99

$

In Stock, Qty 17

0

306

Briggs & Stratton 496797

Shield-Cylinder

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94930

Screw, Tapping Hex
(Superseded to 691003)

$3.49

$

In Stock, only 2 left!

0

308

Briggs & Stratton 225055

Cover-Cylinder
(Superseded to 691212)

$12.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 496018

Spark Plug,resistor (Resistor Type)
(Superseded to 496018S)

$4.49

$

In Stock, Qty 20+

0

383

Briggs & Stratton 89838

Wrench-Spark Plugs
(Superseded to 89838S)

$6.49

$

In Stock, Qty 5

0

552

Briggs & Stratton 491986

Bushing-Gov Crank (1/4" I.d.)

$

$

Not available

592

Briggs & Stratton 231978

Nut-Hex.
(Superseded to 691251)

$3.49

$

In Stock, Qty 10

0

592

Briggs & Stratton 94726

Nut, Hex Flange
(Superseded to 691105)

$7.99

$

In Stock, only 1 left!

0

635

Briggs & Stratton 66538

Elbow-Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 15

0

729

Briggs & Stratton 281396

Clip-Wire
(Superseded to 691336)

$4.49

$

Usually ships in 2-12 days

0

869

Briggs & Stratton 211661

Seat-Valve (Intake)
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

870

Briggs & Stratton 262924

Seat, Exhaust Valve
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 231218

Bushing-Guide (Brass)

$14.99

$

In Stock, only 2 left!

0

871

Briggs & Stratton 261961

Bushing-Guide

$14.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 497156

Label Kit

$43.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 272848

Owner's Manual (Non Emission Engines)

$

$

Not available
