19C432-0056-01 - Briggs & Stratton Horizontal Engine Oil Fill, Oil Gard Parts Diagram

Horizontal Engine

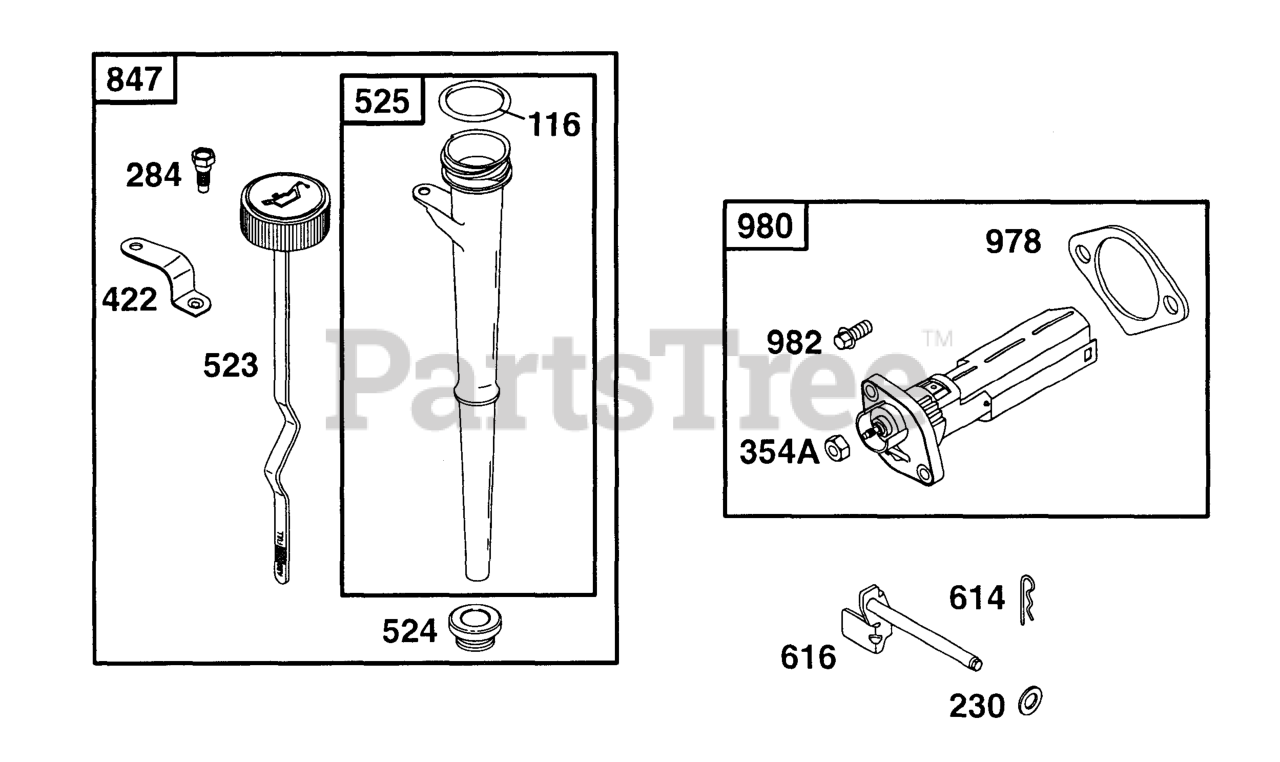

Oil Fill, Oil Gard Parts Diagram

  • Title

116

Briggs & Stratton 270920

Seal, Oil Fill Tube
(Superseded to 691870)

Note: Included in Gasket Set-Part No. 497070.

$4.49

$

Usually ships in 2-12 days

0

116

Briggs & Stratton 280203

Seal-O
(Superseded to 691898)

$5.49

$

In Stock, only 4 left!

0

230

Briggs & Stratton 94927

Washer, Plain
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

284

Briggs & Stratton 94984

Screw, Shoulder Hex
(Superseded to 691130)

$2.99

$

Usually ships in 2-12 days

0

354A

Briggs & Stratton 90576

Nut, Hex (8-32)
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

422

Briggs & Stratton 225218

Bracket-Oil Fill
(Superseded to 690501)

$7.99

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 495225

Dipstick
(Superseded to 691386)

$8.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 281370

Seal-Tube
(Superseded to 281370S)

Note: Included in Gasket Set-Part No. 497070.

$8.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 495347

Tube-Oil Fill
(Superseded to 691389)

$32.99

$

In Stock, only 1 left!

0

614

Briggs & Stratton 93306

Pin, Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 496818

Crank-Governor

$

$

Not available

847

Briggs & Stratton 399901

Fill Group-Oil

$11.99

$

Usually ships in 2-12 days

0

978

Briggs & Stratton 273326

Gasket, Switch (Oil Guard)
(Superseded to 273326S)

Note: Included in Gasket Set-Part No. 497070.

$7.49

$

Usually ships in 2-12 days

0

978

Briggs & Stratton 273326

Gasket, Switch (Oil Guard)
(Superseded to 273326S)

$7.49

$

Usually ships in 2-12 days

0

980

Briggs & Stratton 398182

Switch-Oil Gard

$102.99

$

In Stock, only 1 left!

0

982

Briggs & Stratton 94657

Screw, Hex Wash Hd
(Superseded to 690350)

$3.99

$

Usually ships in 2-12 days

0
