19C432-0056-01 - Briggs & Stratton Horizontal Engine Piston Group, Crankshaft Parts Diagram

Horizontal Engine

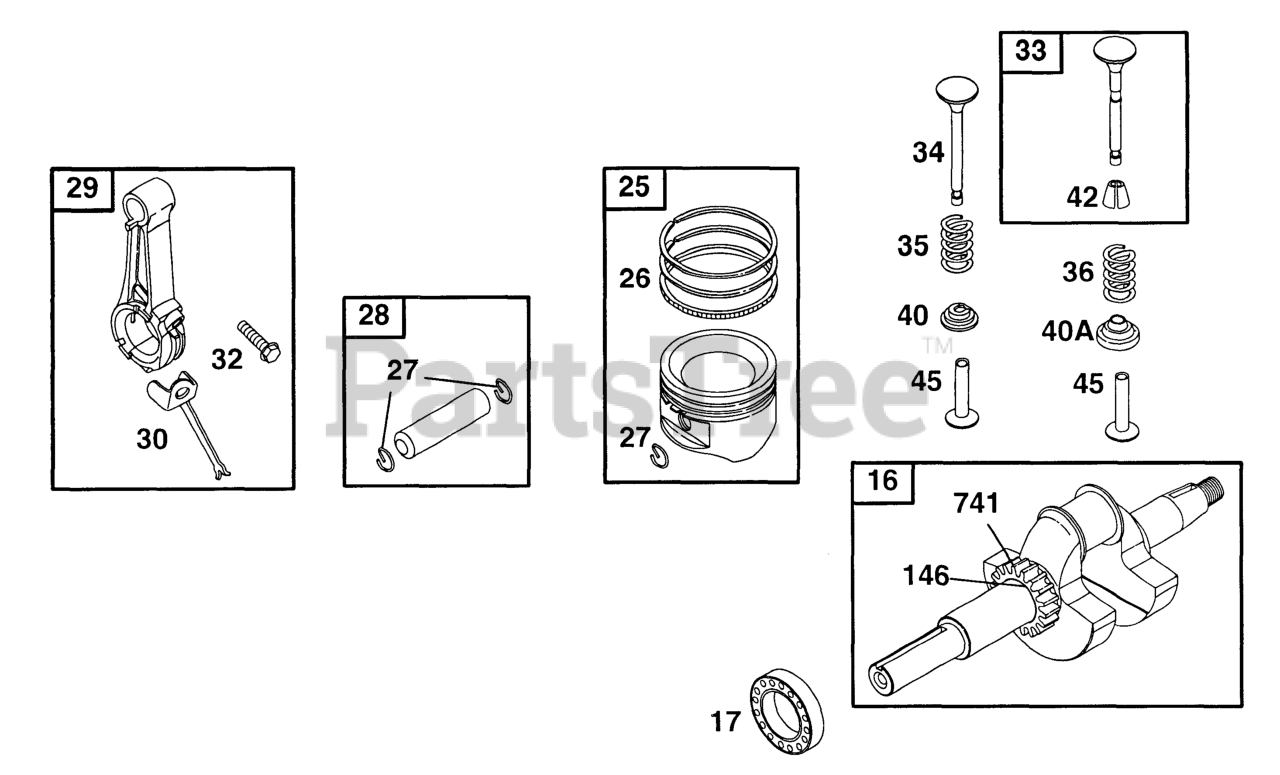

Piston Group, Crankshaft Parts Diagram

  • Title

16

Briggs & Stratton 495790

Crankshaft

$176.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 29530

Bearing-Ball
(Superseded to 691069)

$35.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 499960

Piston Assembly (Standard)

$140.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 499961

Piston Assy. (.010" O.S.)

$67.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 499962

Piston Assy. (.020" O.S.)

$156.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 499963

Piston Assy. (.030" O.S.)

$87.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 299743

Ring Set-Std Chr
(Superseded to 690014)

$51.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 393881

Ring, Piston Kit (Std.)
(Superseded to 690014)

$51.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 690015

Ring Set (.010" O.S.)

$33.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 690016

Ring Set (.020" O.S.)

$78.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 690017

Ring Set (.030" O.S.)

$68.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 263181

Lock-Piston Pin
(Superseded to 690975)

$3.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 295841

Pin-Piston 005

$6.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 499302

Pin-Piston (Standard)

$15.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 390401

Rod-Connecting (Standard)

$

$

Not available

29

Briggs & Stratton 390773

Rod-Connecting (.020" Undersize)

$103.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 222113

Dipper-Connecting Rod
(Superseded to 691728)

$8.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 94670

Screw-Connecting Rod.
(Superseded to 690352)

$6.99

$

In Stock, only 3 left!

0

33

Briggs & Stratton 390420

Valve/Retainer Kit
(Superseded to 691794)

$

$

Not available

34

Briggs & Stratton 261055

Valve-Intake
(Superseded to 261055S)

$32.99

$

In Stock, only 3 left!

0

35

Briggs & Stratton 65906

Spring, Valve
(Superseded to 691605)

$6.99

$

In Stock, Qty 7

0

36

Briggs & Stratton 26828

Spring, Valve (Exhaust)
(Superseded to 691597)

$10.99

$

In Stock, only 1 left!

0

40A

Briggs & Stratton 292260

Rotocoil Assy (Exhaust Valve)
(Superseded to 691939)

$27.99

$

In Stock, only 1 left!

0

40

Briggs & Stratton 221596

Retainer, Spring (Used With Valves With Groove In Stem)
(Superseded to 690656)

$

$

Not available

42

Briggs & Stratton 494553

Keeper-Valve

$7.99

$

In Stock, only 1 left!

0

45

Briggs & Stratton 260933

Tappet-Valve
(Superseded to 691793)

$6.99

$

Usually ships in 2-12 days

0

146

Briggs & Stratton 94388

Timing Key
(Superseded to 690979)

$3.49

$

In Stock, only 3 left!

0

741

Briggs & Stratton 263025

Gear-Timing
(Superseded to 691288)

$21.99

$

Usually ships in 2-12 days

0
